50W470 Silicon Cold Rolled Non Oriented Electrical Steel Coil For Electric Motor
50W470 Silicon Cold Rolled Non Oriented Electrical Steel Coil For Electric Motor
50W470 Silicon Cold Rolled Non Oriented Electrical Steel Coil For Electric Motor
50W470 Silicon Cold Rolled Non Oriented Electrical Steel Coil For Electric Motor
50W470 Silicon Cold Rolled Non Oriented Electrical Steel Coil For Electric Motor
50W470 Silicon Cold Rolled Non Oriented Electrical Steel Coil For Electric Motor
50W470 Silicon Cold Rolled Non Oriented Electrical Steel Coil For Electric Motor
50W470 Silicon Cold Rolled Non Oriented Electrical Steel Coil For Electric Motor
Specifications
Brand Name :
Gnee
Model Number :
Cold Rolled Electrical Steel Coil
Certification :
SGS
Place of Origin :
Henan
MOQ :
10 Ton
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 Ton/Tons per Month
Packaging Details :
Standard Sea Worthy Package
Width :
600-1250mm
Standard :
AISI,ASTM,GB,JIS,DIN
Length :
Customer's Requirement,2000 3000 6000mm
Type :
Steel Coil,Steel Plate
Product name :
Cold Rolled Steel
Thickness :
0.12MM-1.2MM
Description
50W470 Cold Rolled Silicon Steel Non-Oriented Electric Steel Coil for Electric Motor and Generator
Electromagnetic performance: low iron loss and high magnetic induction, especially HiB steel has lower iron loss and higher magnetic induction, reaching the international advanced level.
50W470 Silicon Cold Rolled Non Oriented Electrical Steel Coil For Electric Motor

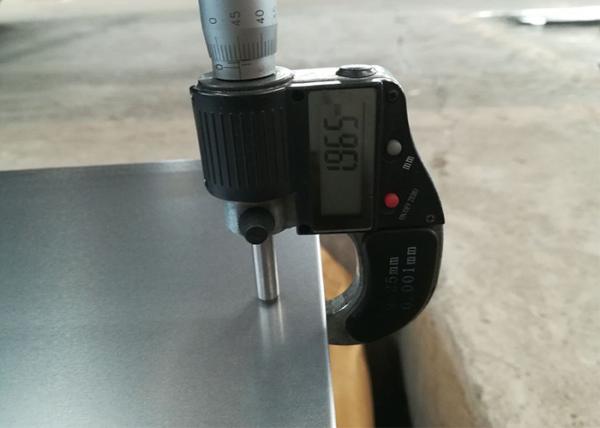

Thickness accuracy: The longitudinal thickness difference and the lateral thickness difference are small, and the stacking factor is high.
Insulating coating: uniform color, good insulation, strong adhesion, high heat resistance, good processability and excellent corrosion resistance. A variety of insulating coatings are available. The products have passed certification and meet the requirements of various domestic and international environmental regulations.
Processing performance: easy to die-cut, high precision of punching size.
Surface quality: The surface is smooth and has no defects that hinder the use of rust, rolling marks, holes, heavy skin, folding, bubbles, delamination.
Reference table of Chinese and Foreign Standard:
Thickness
mm		 GB/T2521-1996 JIS C2552-86 DIN 46400P.3 AISI(1983) GOST21427.1
Designation P15/50
W/kg		 Designation W15/50
W/kg		 Designation P1.5/50
W/kg		 Designation P1.5/50
W/kg		 Designation P1.5/50
W/kg
0.50 50WW250 2.50 50H250 2.50 V250-50A 2.50
50WW270 2.70 50H270 2.70 V270-50A 2.70 2414 2.70
50WW290 2.90 50H290 2.90 V290-50A 2.90 47F364M 2.87 2413 2.90
50WW310 3.10 50H210 3.10 V310-50A 3.10 47F397M 3.13 2412 3.10
50WW350 3.50 50H350 3.50 V350-50A 3.50 47F441M 3.48 2411 3.60
50WW400 4.00 50H400 4.00 V400-50A 4.00 47F529M 4.18 2312 4.00
50WW470 4.70 50H470 4.70 V470-50A 4.70 47F617M 47F882M 4.88 6.98 2214 4.80
50WW600 6.00 50H600 6.00 V600-50A 6.00 47F992M 8 2112 6.00
50WW700 7.00 50H700 7.00 V700-50A 7.00 2012 6.50
50WW800 8.00 50H800 8.00 V800-50A 8.00 2011 8.00
50WW1000 10.00 50H1000 10.00 940-50SG 10.00
50WW1300 13.00 50H1300 13.00 100-50SG 13.00
