P500QL2 Grade EN10028-6 Standard Pressure Vessel Steel Plate with 1250mm Width
P500QL2 Grade EN10028-6 Standard Pressure Vessel Steel Plate with 1250mm Width
P500QL2 Grade EN10028-6 Standard Pressure Vessel Steel Plate with 1250mm Width
P500QL2 Grade EN10028-6 Standard Pressure Vessel Steel Plate with 1250mm Width
P500QL2 Grade EN10028-6 Standard Pressure Vessel Steel Plate with 1250mm Width
P500QL2 Grade EN10028-6 Standard Pressure Vessel Steel Plate with 1250mm Width
P500QL2 Grade EN10028-6 Standard Pressure Vessel Steel Plate with 1250mm Width
P500QL2 Grade EN10028-6 Standard Pressure Vessel Steel Plate with 1250mm Width
Specifications
Brand Name :
Gnee
Model Number :
P500QL2
Certification :
SGS
Place of Origin :
Tianjin
MOQ :
1 Ton/Tons
Price :
$680 / Ton
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
800 Ton/Tons per Week
Packaging Details :
Properly packed for ocean freight exportation in containers 1. Bundle 2. Water-proof Draft Paper
Standard: :
ASTM, bs, DIN, GB, JIS
Grade: :
P500QL2
Place of Origin: :
Tianjin, China
Brand Name: :
Gnee
Model Number: :
According to customer requirements
Type: :
Steel plate/sheet/coil, Steel Plate
Technique: :
Cold rolled/Hot rolled
Surface Treatment: :
Coated
Application: :
Mechanical equipment, industry, metallurgy
Special Use: :
bon steel plate, High-strength steel plate
Width: :
According to requirements
Length: :
According to requirements
Tolerance: :
±1%, Thickness+/-0.01mm
Product Name: :
bon steel sheet
Description
Coated Surface P500QL2 Pressure Vessel Steel Plate (Width 1250mm)
Product Overview

P500QL2 steel plate is a high-quality hot rolled bon steel plate designed for pressure vessel applications. This quenched and tempered fine grain steel offers excellent weldability and performance in high-temperature environments.

Product Specifications
Product Name Steel Plate
Thickness 1mm-100mm
Width 1250, 1500, 1800, 2500mm
Length Customizable to requirements
Authentication ISO9001
Surface Treatment Hardfacing, cladding, coated
Grade Information
Grade P500QL2
Number 1.8865
Classification Alloy special steel with low temperature properties down to -60°C
Standard EN 10028-6: 2009 Flat products made of steels for pressure purposes. Weldable fine grain steels, quenched and tempered
Chemical Composition (Max %)
Element C Si Mn P S N B
P500QL2 0.18 0.60 1.70 0.020 0.010 0.015 0.005
Element Mo Cu Nb Ni Ti V Cr
P500QL2 0.70 0.3 0.05 1.50 0.05 0.08 1.00
Mechanical Properties
Thickness (mm) Yield Min (MPa) Tensile (MPa) Elongation Min (%)
6-50 500 590-770 17
50-100 480 590-770 17
100-150 440 540-720 17
Product Images

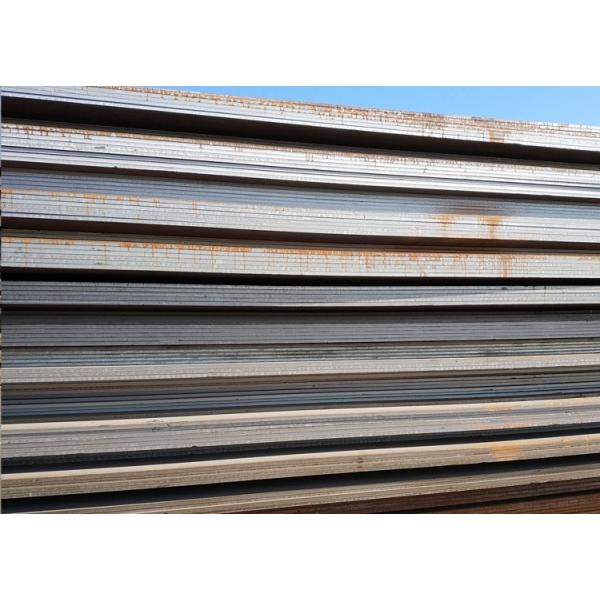

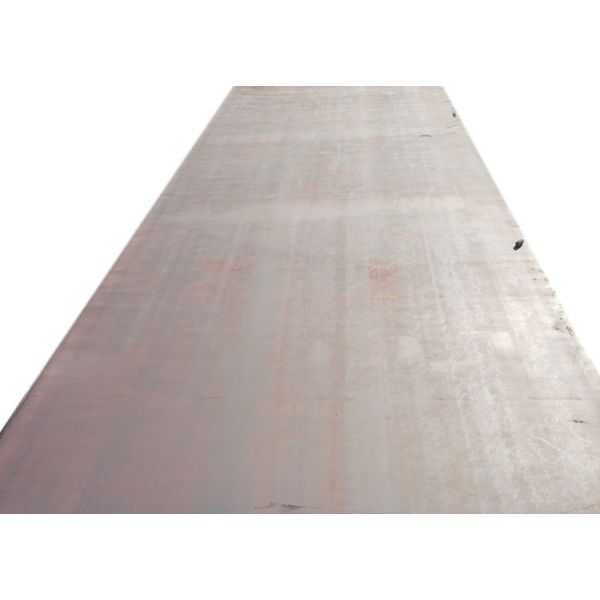

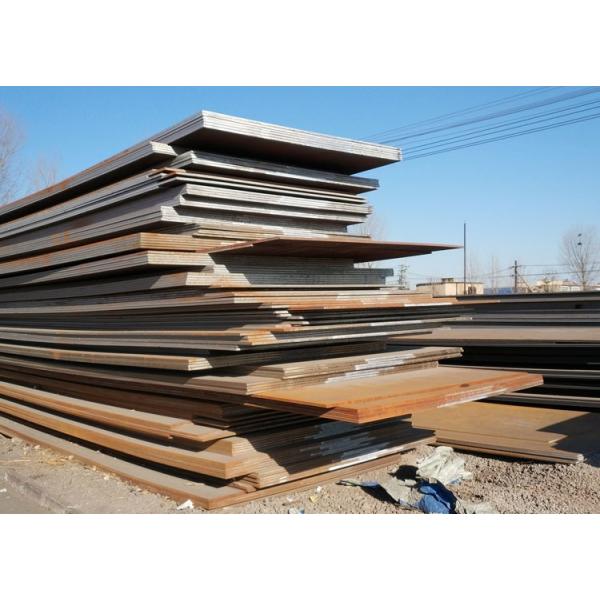

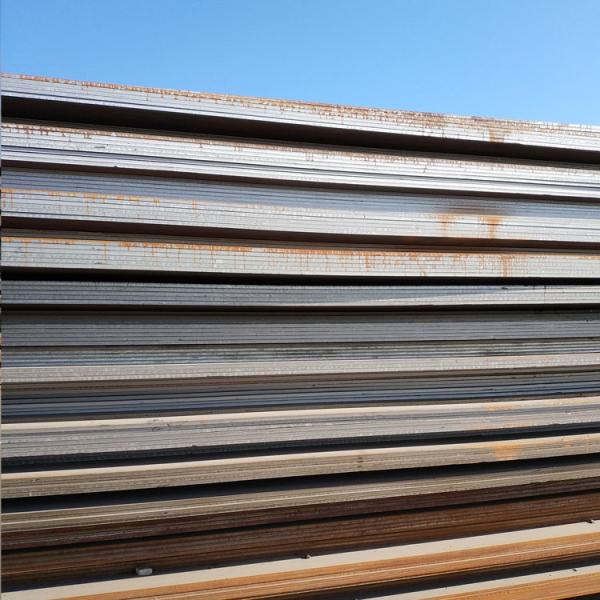

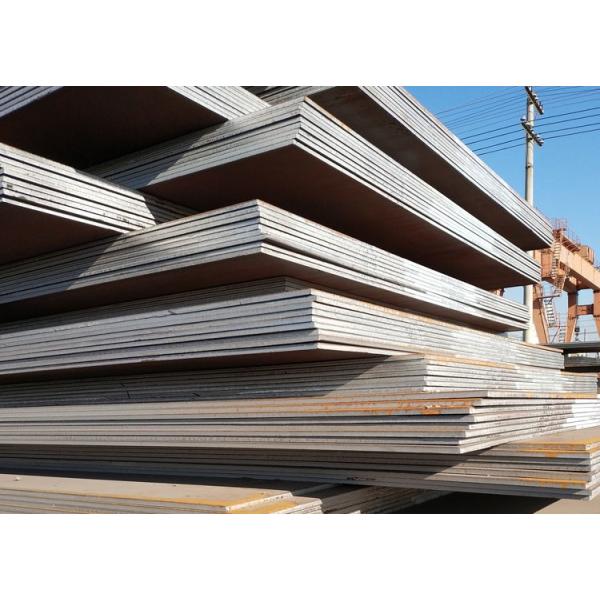

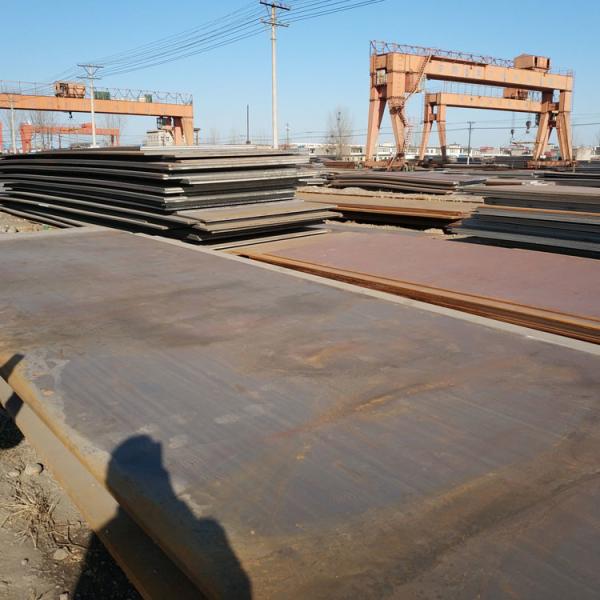

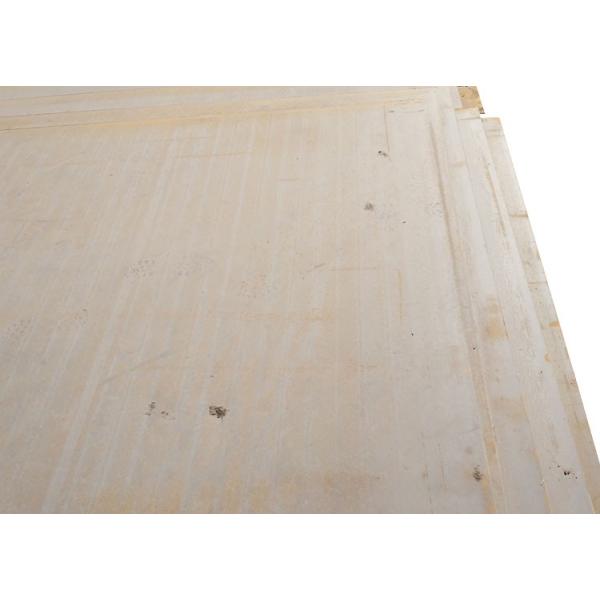

P500QL2 Grade EN10028-6 Standard Pressure Vessel Steel Plate with 1250mm Width P500QL2 Grade EN10028-6 Standard Pressure Vessel Steel Plate with 1250mm Width P500QL2 Grade EN10028-6 Standard Pressure Vessel Steel Plate with 1250mm Width P500QL2 Grade EN10028-6 Standard Pressure Vessel Steel Plate with 1250mm Width
Manufacturing Capabilities

With 20 years of experience in steel plate processing, we specialize in:

  • Steel plate cutting and processing
  • Wide and thick plate solutions
  • Customized finished and semi-finished products

Our advanced CNC equipment allows us to process up to 20,000 tons monthly, helping customers save resources while maintaining excellent product quality.

Our Services
  • Quality issue resolution within 12 hours
  • Factory-direct manufacturing with best production capability and quality control
  • SGS or ISO certified inspections
  • 100% quality control inspection before shipment
Frequently Asked Questions
Are you a manufacturer?

Yes, we are a manufacturer with our own factory, specializing in producing and exporting various steel products including galvanized steel coil and galvalume steel coil.

Can we visit your factory?

We warmly welcome visits. Once we have your schedule, we will arrange to pick you up.

How can we get the offer?

Please provide the product specifications including material, size, shape, etc., and we will provide the best offer.

Can I get samples?

Yes, we provide free samples but require you to cover the freight costs.
