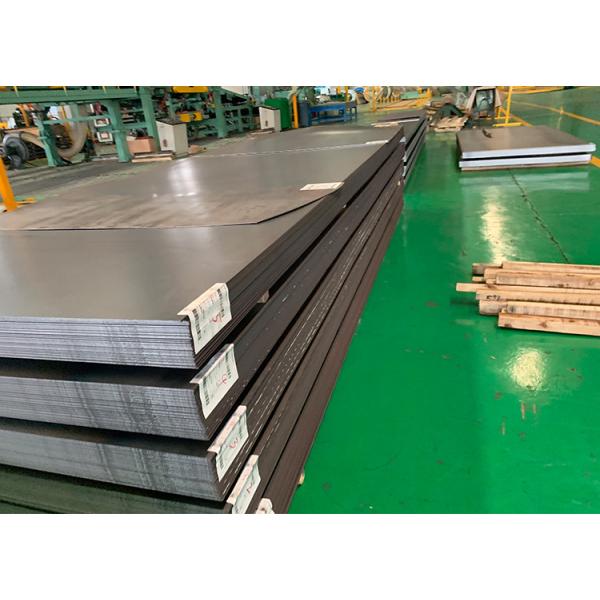

P500QH Grade ASTM Standard Carbon Steel Plate EN 10028-6 Compliant for Pressure Vessels
P500QH Grade ASTM Standard Carbon Steel Plate EN 10028-6 Compliant for Pressure Vessels
P500QH Grade ASTM Standard Carbon Steel Plate EN 10028-6 Compliant for Pressure Vessels
P500QH Grade ASTM Standard Carbon Steel Plate EN 10028-6 Compliant for Pressure Vessels
P500QH Grade ASTM Standard Carbon Steel Plate EN 10028-6 Compliant for Pressure Vessels
P500QH Grade ASTM Standard Carbon Steel Plate EN 10028-6 Compliant for Pressure Vessels
P500QH Grade ASTM Standard Carbon Steel Plate EN 10028-6 Compliant for Pressure Vessels
P500QH Grade ASTM Standard Carbon Steel Plate EN 10028-6 Compliant for Pressure Vessels
Specifications
Brand Name :
Gnee
Model Number :
P500QH
Certification :
SGS
Place of Origin :
Tianjin
MOQ :
1 Ton/Tons
Price :
$680 / Ton
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
800 Ton/Tons per Week
Packaging Details :
Properly packed for ocean freight exportation in containers 1. Bundle 2. Water-proof Draft Paper
Standard: :
ASTM, bs, DIN, GB, JIS
Grade: :
P500QH
Place of Origin: :
Tianjin, China
Brand Name: :
Gnee
Model Number: :
According to customer requirements
Type: :
Steel plate/sheet/coil, Steel Plate
Technique: :
Cold rolled/Hot rolled
Surface Treatment: :
Coated
Application: :
Mechanical equipment, industry, metallurgy
Special Use: :
carbon steel plate, High-strength steel plate
Width: :
According to requirements
Length: :
According to requirements
Tolerance: :
±1%, Thickness+/-0.01mm
Product Name: :
carbon steel sheet
Description

P500QH Steel Plate P500QH Hot Rolled Steel Sheet P500QH Carbon Steel Plates


Product Name
 P500QH Carbon Steel Plates
Material
 P500QH
Color
customized
Grade
P500QH
Certificate
MTC SGS
Technique
hot rolled
Thickness
3-200mm
Width
1500-2000mm
Length
as required


EN 10273: 2007 Hot rolled weldable steel bars for pressure purposes with specified elevated temperature properties

Grade : P500QH
Number: 1.8874
Classification: Alloy special steel with elevated temperature properties
Density: 7.85 g/cm ³
Standard: EN 10028-6: 2009 Flat products made of steels for pressure purposes. Weldable fine grain steels, quenched and tempered

P500QH steel grade is quenched and tempered steel grade for weldable fine grain pressure purposes. P500QH is the EN chemical designation. It has a moderately high density among EN wrought alloy steels. In addition, it has a fairly low thermal conductivity and a fairly high electrical conductivity.EN P500QH can be supplied as steel plate/ sheet, round steel bar, steel tube/pipe, steel stripe, steel billet, steel ingot, steel wire rods.



P500QH Chemical Composition Max (%)

Grade C Si Mn P S N B
P500QH 0.18 0.60 1.70 0.025 0.015 0.015 0.005
Mo Cu Nb Ni Ti V Cr
0.70 0.3 0.05 1.50 0.05 0.08 1.00


P500QH Mechanical Property

Grade Thickness Yield Tensile Elongation
P500QH mm Min Mpa Mpa Min %
6-50 500 590-770 17%
50-100 480 590-770 17%
100-150 440 540-720 17%




P500QH Grade ASTM Standard Carbon Steel Plate EN 10028-6 Compliant for Pressure VesselsP500QH Grade ASTM Standard Carbon Steel Plate EN 10028-6 Compliant for Pressure VesselsP500QH Grade ASTM Standard Carbon Steel Plate EN 10028-6 Compliant for Pressure VesselsP500QH Grade ASTM Standard Carbon Steel Plate EN 10028-6 Compliant for Pressure Vessels


Gnee steel is specialized in producing most kinds of steel sheet and coil. Such as Stainless steel sheet/coil/pipe/bar, Carbon steel sheet/ coil/ pipe/bar. Carbon steel also contains ship building steel, wear resistante steel and weather resistant steel. We have worked on this kind of products for many years. All of our orders from customers are produced by our professional team. And the best quality products and service will be offered for you.


FAQ

1. Do you have your own factory?

Yes, we do. We have our own factory, and we can provide stable stock with competitive price and good quality.

2. Which payment can you accept?

1).100% irrevocable L/C at sight.


2).30% T/T prepaid and the balance against the copy of B/L.

3).30% T/T prepaid and the balance against L/C.

3. How about the delivery time?

10-15 days after receiving the deposit.

4. Why do you choose our company?

1). We have a more stable stock with competitive price and good quality.

2). We have more experience on the international trade with good faith.

3). We can provide the personal customized service, such as adding your company's logo on the products, the specified color and so on.
