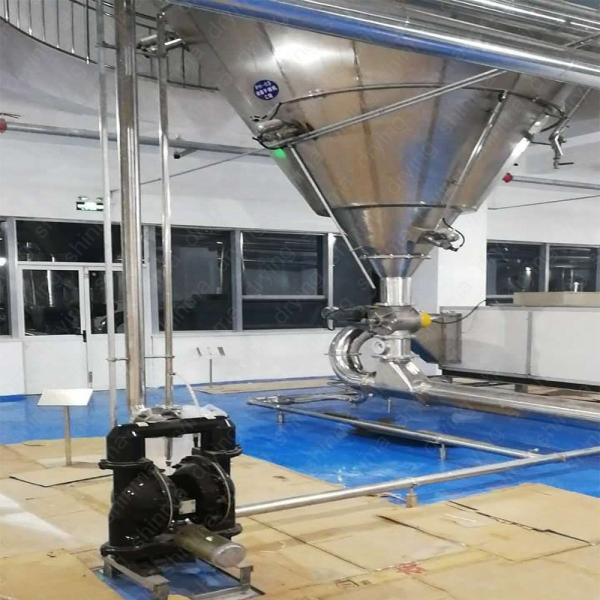

161kw SS304 Centrifugal Spray Dryer Atomizer Spray Dryer Machine
161kw SS304 Centrifugal Spray Dryer Atomizer Spray Dryer Machine
Specifications
Brand Name :
Shinma
Certification :
ISO9001, ISO14001 ,CE
Packaging Details :
as per customer's requirement
Supply Ability :
20 Set/Sets per Year
Price :
$33,000.00/sets 1-2 sets
Type :
Spray Drying Equipment
Application :
Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing
Condition :
New
Voltage :
380V
Power :
161kw
Dimension(L*W*H) :
18x12x20
Key Selling Points :
Automatic
Warranty :
3 years
Applicable Industries :
Food & Beverage Shops
Showroom Location :
None
Marketing Type :
Ordinary Product
Machinery Test Report :
Not Available
Video outgoing-inspection :
Not Available
Warranty of core components :
6 Months
Core Components :
Engine
After-sales Service Provided :
Engineers available to service machinery overseas
material :
full SUS304
After Warranty Service :
Online support
Local Service Location :
None
Port :
Shanghai
Description

LPG series centrifugal atomizer spray dryer machine

LPG series centrifugal atomizer spray dryer machine

Atomization way: centrifugal

The contact form of droplets and hot air: parallel flow

Heat source and heating way: Natural gas

Inlet air temperature: approx. 220℃

Outlet air temperature: approx. 90℃

Product receiving way: Tower bottom + one grade cyclone + water-film dedusting

System material requirement: All parts contact with material are made of SUS304

LPG series centrifugal atomizer spray dryer machine

Heating system: steam heating + electricity compensation

Fine powder receiving system: Main tower + one grade cyclone separator + water-scrubber dedusting

Medium recycling system: forced and induced draft fan open circulation

Air filtering system: primary and secondary efficiency + HEPA filter

Feeding system: adjustable screw pump

Controlling system: digital-display instrument to display temperature, pressure, differential pressure, touch screen display animated working process, all parameters are set together. PLC fuzzy technology were used to track and control variable parameters.

type LPG
5 25 50 100 150
Inlet temperature ≤ 350°C
Outlet temperature 80-90°C
evaporate capacity (kg/h) 5 25 50 100 150
driving type compressed air drive mechanical drive
Rotate speed 25000 22000 21500 18000 18000
diameter of atomizer tray (mm) 50 120 120 120 150
heating source electricity electricity electricity +steam+fuel oil+coal gas electricity +steam electricity +steam+fuel oil+coal gas
Electric-heating power (kw) 9 45 60 81 99
Dried powder recovery rate (%) ≥ 95 ≥ 95 ≥ 95 ≥ 95 ≥ 95
Installation size A(mm) 1000 1290 1730 2500 2800
B(mm) 2100 3410 4245 5300 6000
C(mm) 2300 4260 4645 6000 6700
φ D(mm) 1060 1800 2133 2560 2860
E1(mm) 1050 1200 1640 2100 2180
E2(mm) 1050 1200 1640 2100 2180
F(mm) 750 1000 1250 1750 1970
G(mm) 530 1700 1750 1930 2080
H(mm) 530 1300 1800 2600 3050
I(mm) 530 1550 1600 1780 1960
