Specifications
Place of Origin :
Jiangsu, China
Brand Name :
Shinma
Certification :
ISO9001,ISO14001
Packaging Details :
As per customer's requirement
Supply Ability :
20 Set/Sets per Year
Price :
$13,000.00 - $220,000.00/sets
Type :
belt dryer
Application :
Medicine Processing, Chemicals Processing, Food Processing
Condition :
New
Dimension(L*W*H) :
21.56m*2.32m*2.5m
Key Selling Points :
Automatic
Warranty :
1 Year
Weight (KG) :
14000
Applicable Industries :
Manufacturing Plant, Food & Beverage Factory, Farms
Showroom Location :
None
Marketing Type :
Other
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Bearing, Pump, Gear, Motor, Gearbox, PLC
Heating Method :
Steam Heating
Material :
SUS304, SUS304L, SUS316, SUS316L, Other, all SUS304, SUS316L
Heating :
steam, oil, electricity, natural gas
After-sales Service Provided :
Online support, Video technical support, Free spare parts, Field installation, commissioning and training
After Warranty Service :
Video technical support, Online support, Spare parts
Local Service Location :
None
Port :
Shanghai
Description

other food processing machinery potato continuous belt dryer machine drying equipment

other food processing machinery potato continuous belt dryer machine drying equipment

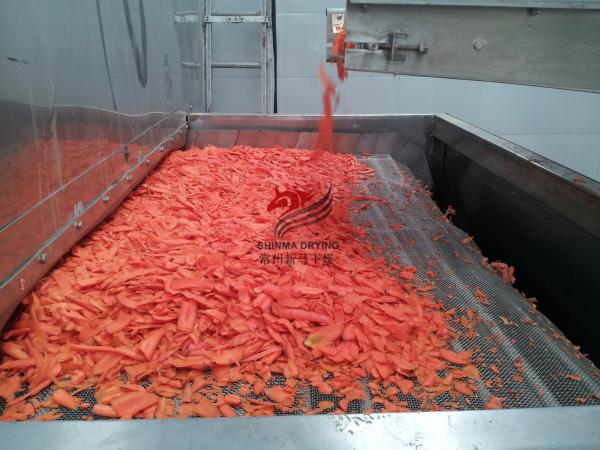

The raw materials to be treated should distribute on the conveyer belt through suitable mechanism such as star distributor, swing belt, crusher or granulator, the conveyer passes through the channel including of one or several heating unit. Each heating unit is equipped with air heater and circle system. Each channel has one or several damp discharge systems. When the conveyer passes through it, hot air will pass through the raw material from up to low or from low to up. In this way raw materials can be dried evenly.
FEATURES AT A GLANCE
According to the character that fresh coconut contains water, when belt dryer used for drying, the critical water content is
about 15%, that is constant speed drying is used before reaching the critical water content to remove free water, and after
reaching the critical water content, Speed droop dehydration is used to remove the bound water.
According to the general rules, an assembly line should have three working section ,they are pre-dry(1)constant speed dehydration
(2) Speed droop dehydration(3).During the process (1)and (2) 80% water can be removed, the temperature of raw material will be kept as hot and wet bulb temperature. During the process of (3)20% water can be removed, the temperature of raw material is close to the temperature of exhausted hot air .
PRODUCT SPECIFICATIONS
No
Item
Data
1
moisture evaporation amount
400kg/h
2
operation temputure
50-140℃(designed as 90℃)
3
Initial water contentω1
Finial water contentω2
49%-54%(design as 54%)
≤3%(design as 3% )
4
Heating source
steam (0.6MPa)
5
Steam consume
450-1200kg/h
6
Equipment oversize
21560(L)*2320(W)*2500(H)
7
Power equipped
36.8kw
8
Total weight
Around 14 T
21.56m X 2.32m X 2.5m Continuous Conveyor Belt Dryer
21.56m X 2.32m X 2.5m Continuous Conveyor Belt Dryer
21.56m X 2.32m X 2.5m Continuous Conveyor Belt Dryer
Other model technical parameters
21.56m X 2.32m X 2.5m Continuous Conveyor Belt Dryer
Sketch of Flow Chart
21.56m X 2.32m X 2.5m Continuous Conveyor Belt Dryer
21.56m X 2.32m X 2.5m Continuous Conveyor Belt Dryer
21.56m X 2.32m X 2.5m Continuous Conveyor Belt Dryer
Why Choose Us
21.56m X 2.32m X 2.5m Continuous Conveyor Belt Dryer
21.56m X 2.32m X 2.5m Continuous Conveyor Belt Dryer
21.56m X 2.32m X 2.5m Continuous Conveyor Belt Dryer
21.56m X 2.32m X 2.5m Continuous Conveyor Belt Dryer
21.56m X 2.32m X 2.5m Continuous Conveyor Belt Dryer

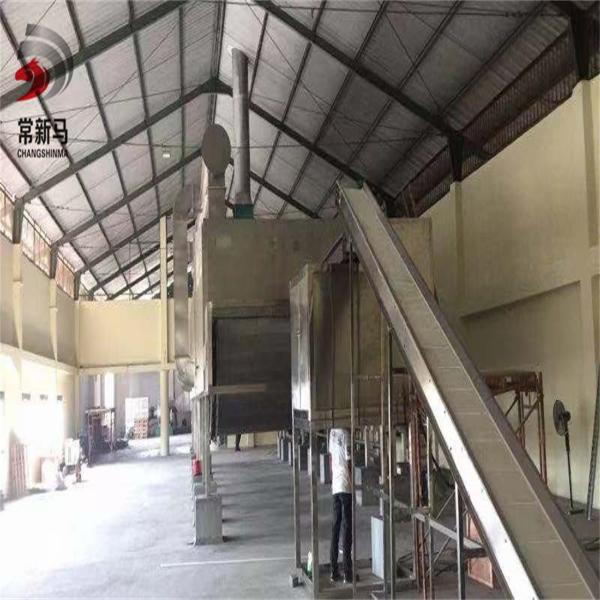

Customer Photos
21.56m X 2.32m X 2.5m Continuous Conveyor Belt Dryer
21.56m X 2.32m X 2.5m Continuous Conveyor Belt Dryer
