Mango Drying Equipment 400kg/H Industrial Conveyor Belt Dryer
Mango Drying Equipment 400kg/H Industrial Conveyor Belt Dryer
Mango Drying Equipment 400kg/H Industrial Conveyor Belt Dryer
Mango Drying Equipment 400kg/H Industrial Conveyor Belt Dryer
Mango Drying Equipment 400kg/H Industrial Conveyor Belt Dryer
Mango Drying Equipment 400kg/H Industrial Conveyor Belt Dryer
Mango Drying Equipment 400kg/H Industrial Conveyor Belt Dryer
Mango Drying Equipment 400kg/H Industrial Conveyor Belt Dryer
Mango Drying Equipment 400kg/H Industrial Conveyor Belt Dryer
Mango Drying Equipment 400kg/H Industrial Conveyor Belt Dryer
Mango Drying Equipment 400kg/H Industrial Conveyor Belt Dryer
Mango Drying Equipment 400kg/H Industrial Conveyor Belt Dryer
Mango Drying Equipment 400kg/H Industrial Conveyor Belt Dryer
Mango Drying Equipment 400kg/H Industrial Conveyor Belt Dryer
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
Shinma
Certification :
ISO9001,ISO14001
Packaging Details :
As per customer's requirement
Supply Ability :
20 Set/Sets per Year
Price :
$30,000.00/sets 1-2 sets
Type :
belt dryer
Application :
Medicine Processing, Chemicals Processing, Food Processing
Condition :
New
Voltage :
according to the model
Power :
according to the model
Dimension(L*W*H) :
according to the model
Key Selling Points :
Automatic
Warranty :
1 Year
Weight (KG) :
14000
Applicable Industries :
Manufacturing Plant, Food & Beverage Factory, Farms
Showroom Location :
None
Marketing Type :
Other
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Bearing, Pump, Gear, Motor, Gearbox, PLC, Engine, Pressure vessel
Heating Method :
Steam Heating
Material :
SUS304, SUS304L, SUS316, SUS316L, Other, all SUS304, SUS316L
Heating :
steam, oil, electricity, natural gas
After-sales Service Provided :
Online support, Video technical support, Free spare parts, Field installation, commissioning and training
After Warranty Service :
Video technical support, Online support, Spare parts
Local Service Location :
None
Port :
Shanghai
Description
mango drying equipment industrial machinery continuous conveyor belt dryer
Belt dryers are widely used in food, chemical fiber, forestry, pharmaceutical, leather and chemical industries, and are especially suitable for drying vegetables, fruit,pet food,animal feed ,flours,meat,snacks food,etc..
According to the character that fresh coconut contains water, when belt dryer used for drying, the critical water content is
about 15%, that is constant speed drying is used before reaching the critical water content to remove free water, and after
reaching the critical water content, Speed droop dehydration is used to remove the bound water.
According to the general rules, an assembly line should have three working section ,they are pre-dry(1)constant speed dehydration
(2) Speed droop dehydration(3).During the process (1)and (2) 80% water can be removed, the temperature of raw material will be kept as hot and wet bulb temperature. During the process of (3)20% water can be removed, the temperature of raw material is close to the temperature of exhausted hot air .
PRODUCT SPECIFICATIONS
No
Item
Data
1
moisture evaporation amount
400kg/h
2
operation temputure
50-140℃(designed as 90℃)
3
Initial water contentω1
Finial water contentω2
49%-54%(design as 54%)
≤3%(design as 3% )
4
Heating source
steam (0.6MPa)
5
Steam consume
450-1200kg/h
6
Equipment oversize
21560(L)*2320(W)*2500(H)
7
Power equipped
36.8kw
8
Total weight
Around 14 T
Mango Drying Equipment 400kg/H Industrial Conveyor Belt Dryer
Other model technical parameters
Mango Drying Equipment 400kg/H Industrial Conveyor Belt Dryer
Sketch of Flow Chart
Mango Drying Equipment 400kg/H Industrial Conveyor Belt Dryer
Mango Drying Equipment 400kg/H Industrial Conveyor Belt Dryer
Mango Drying Equipment 400kg/H Industrial Conveyor Belt Dryer
Why Choose Us
Mango Drying Equipment 400kg/H Industrial Conveyor Belt Dryer
Mango Drying Equipment 400kg/H Industrial Conveyor Belt Dryer
Mango Drying Equipment 400kg/H Industrial Conveyor Belt Dryer
Mango Drying Equipment 400kg/H Industrial Conveyor Belt Dryer
Mango Drying Equipment 400kg/H Industrial Conveyor Belt Dryer

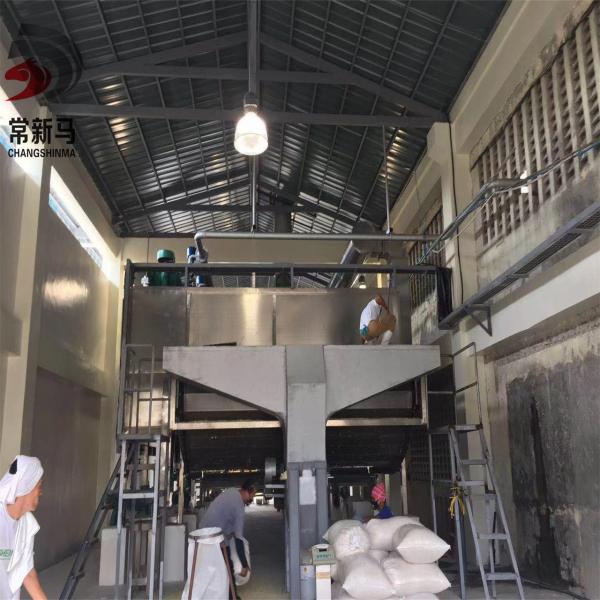

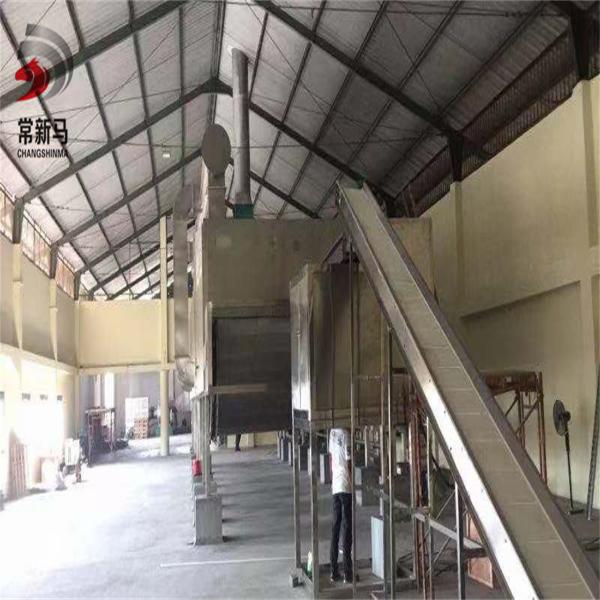

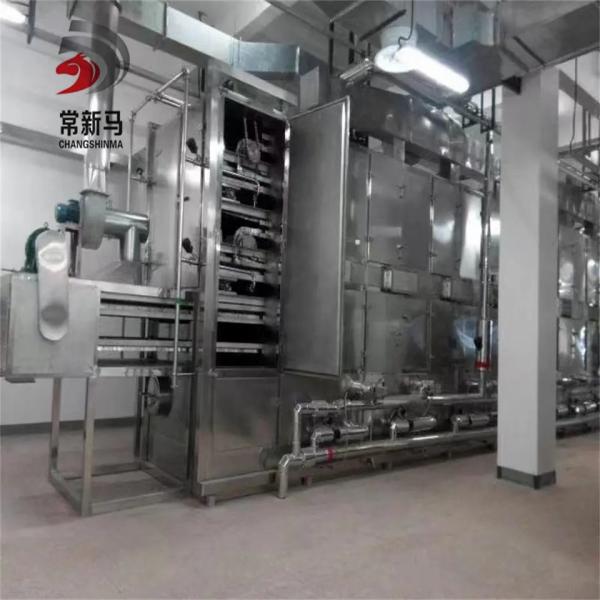

Customer Photos
Mango Drying Equipment 400kg/H Industrial Conveyor Belt Dryer
Mango Drying Equipment 400kg/H Industrial Conveyor Belt Dryer
