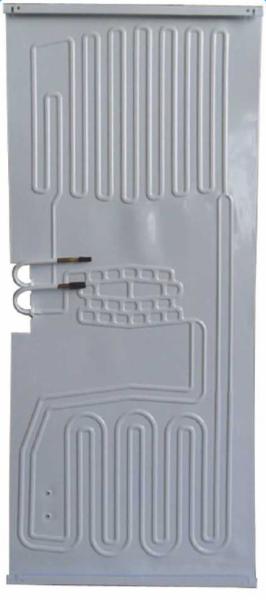

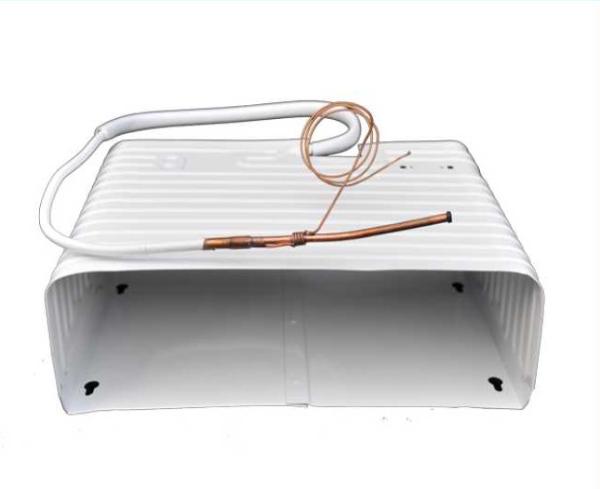

Refrigeration Aluminum Plate Roll Bond Evaporator Freezer Evaporator
Refrigeration Aluminum Plate Roll Bond Evaporator Freezer Evaporator
Refrigeration Aluminum Plate Roll Bond Evaporator Freezer Evaporator
Refrigeration Aluminum Plate Roll Bond Evaporator Freezer Evaporator
Specifications
Place of Origin :
CHINA
Brand Name :
SHF
Delivery Time :
30-60 DAYS
Description

Product Description

Refrigeration Aluminum Plate Roll Bond Evaporator

Main Material: Aluminium Sheet with thickness from 0.8mm to 1.2mm; aluminium pipe with diameter from 7mm to 8mm

Structure: Dual aluminum sheet, double or single side roll bond

Surface treatment: Powde coating or without powder coating

Others: Size can be customized

Raw materia

 Aluminum plate: the thickness before painting is from 0.8 to 1.2mm
The thickness of Al plate after paiting is 1.3-1.4mm

Structure		 Double side roll bond evaporator
Single side roll bond evaporator
Part single side roll bond evaporator

Key process 		preparing materials - cleaning - printing - rolling - annealing - blowing up - punching -folding and sharpening -adding the capillary - assemble welding - leakage testing - cleaning and drying - coating - inspection - packing.

Performance

 (1) Surface treated with powder coating to prevent corrosion
(2) Residual moisture:≤5 /100cm3; Residual impurity:≤1 /100cm3; Residual mineral oil:≤100 /100cm3; Residual chlorine:≤5vloppm
(3) Can satisfy the cooling capability requirements of the designed refrigerator.
