Specifications
Brand Name :
SMC
Model Number :
IP8000/8100
MOQ :
1 Set/Sets
Price :
Negotiation
Supply Ability :
100 Set/Sets per Month

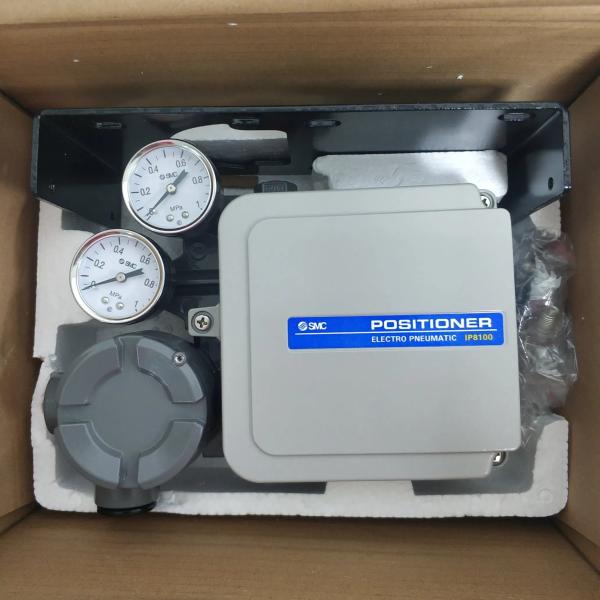

Packaging Details :
Packing type: cardboard box/non-fumigation wooden box
Product Name :
SMC Electro-Pneumatic Valve Positioner IP8000
Temperature of Media :
High Temperature
Pressure :
High Pressure
Operating Temperature :
-20 to 55°C (-4 to 122°F)
Weight :
Approximately 2.9 lbs (1330 grams)
Port Size :
Standard
Structure :
Pressure Reducing
Standard or Nonstandard :
Standard
Description
Product Overview

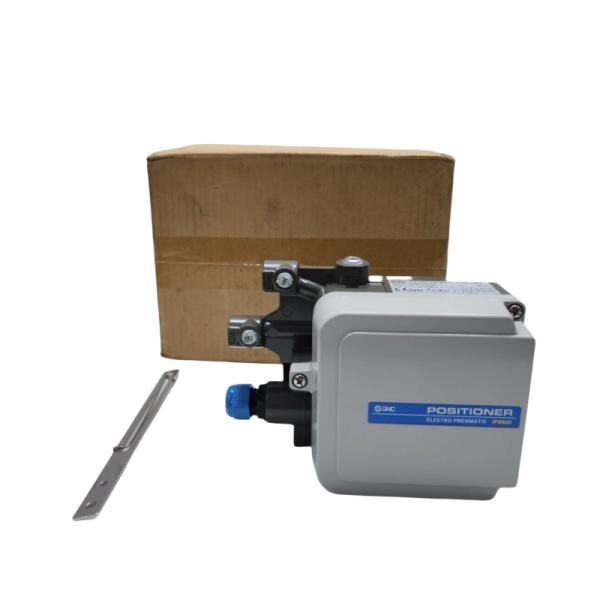

The SMC IP8000 is a compact, high-performance electro-pneumatic valve positioner designed for use with pneumatic actuators in process automation systems. It converts electrical signals (typically 4-20 mA) into proportional pneumatic output, providing accurate and stable valve control. The IP8000 supports both linear and rotary valve actuators, making it a flexible solution for a wide range of industries.


Key Features
  • Compact and Lightweight Design
    Ideal for applications where space and weight are limited
  • High Accuracy & Stability
    Provides precise valve positioning for critical flow regulation
  • Fast Response Time
    Optimized for high-speed control applications
  • Easy Installation & Setup
    Simple zero/span adjustments and minimal air consumption

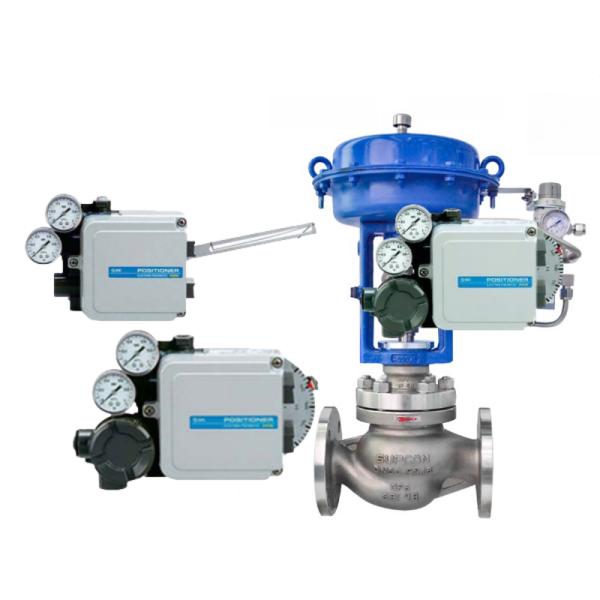

  • Supports Linear & Rotary Actuators
    Suitable for a broad range of control valve types
  • Optional Feedback Signal Output
    Enables real-time valve monitoring via 4-20 mA feedback

Technical Specifications
Parameter Specification
Input Signal 4-20 mA DC
Input Impedance Approx. 250 Ω (at 20 mA)
Supply Pressure 0.14 to 0.7 MPa (20-102 psi)
Output Pressure Range 0 to 100% of supply pressure
Linearity Within ±1% FS
Hysteresis Within ±0.5% FS
Air Consumption Approx. 4 L/min (ANR)
Operating Temperature -20°C to +70°C
Protection Class IP65 (depending on model)
Mounting Direct or bracket mount (NAMUR compatible)
Explosion Proof Options Available upon request (Ex models)

Applications
  • Chemical & Petrochemical Plants
  • Food & Beverage Automation
  • Water Treatment & Distribution Systems
  • Pharmaceutical Manufacturing
  • Semiconductor Processing
  • Power Generation Facilities

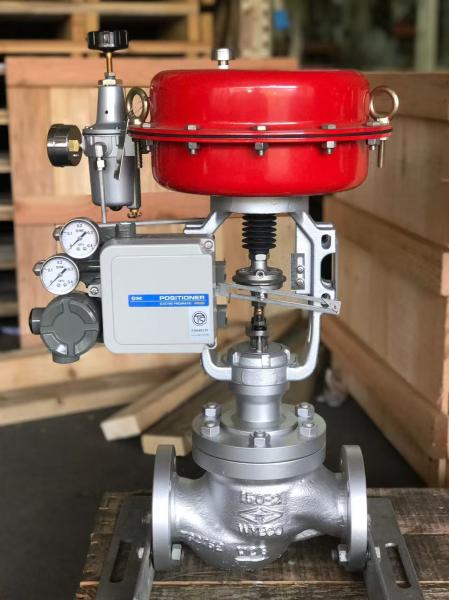

Whether used for modulating control valves, on/off pneumatic actuators, or precision flow systems, the SMC IP8000 enhances valve performance with fast response and tight control.


Need help choosing the right positioner?

Get in touch with our automation specialists to discuss application fit, lead time, or technical documentation for the SMC IP8000.

Email: shawn@gongboshi.com
Visit: www.shgongboshi.com
