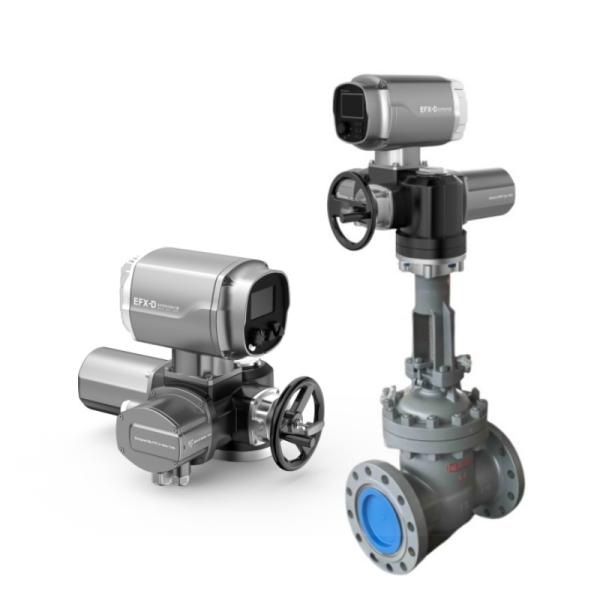

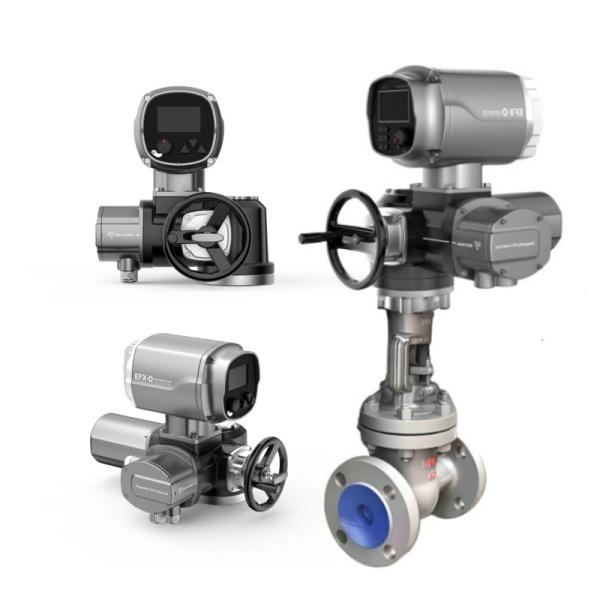

FFC EFX-D Explosion Proof Multi-turn Electric Actuator for Gate Valves
FFC EFX-D Explosion Proof Multi-turn Electric Actuator for Gate Valves
FFC EFX-D Explosion Proof Multi-turn Electric Actuator for Gate Valves
FFC EFX-D Explosion Proof Multi-turn Electric Actuator for Gate Valves
FFC EFX-D Explosion Proof Multi-turn Electric Actuator for Gate Valves
FFC EFX-D Explosion Proof Multi-turn Electric Actuator for Gate Valves
FFC EFX-D Explosion Proof Multi-turn Electric Actuator for Gate Valves
FFC EFX-D Explosion Proof Multi-turn Electric Actuator for Gate Valves
FFC EFX-D Explosion Proof Multi-turn Electric Actuator for Gate Valves
FFC EFX-D Explosion Proof Multi-turn Electric Actuator for Gate Valves
Specifications
Brand Name :
FFC
Model Number :
EFX-D
Place of Origin :
China
MOQ :
1
Price :
US $2655.00 - 3000.00/ Set
Payment Terms :
T/T
Supply Ability :
500 sets per year
Delivery Time :
45-80 days
Packaging Details :
Wooden case + protection
Torque range :
35-3000N.m
Noise Levels :
less than 75dB within 1m
Degree of protection :
IP67,optional IP68
Working system-Adjustable type :
S4-25%, Maximum of 600 triggers per hour
Input Signal-Adjustable type :
4-20mA,0-10V;2-10V
Environmental temperature :
-20° C~70° C,optional -40° C~+55° C
Inlet Size :
2 NPT3/4,1 NPT1 1/2
Description
FFC EFX-D Explosion Proof Multi-turn Electric Actuator with Intelligent Control for Gate Valve Automation

Product Overview

The FFC EFX-D Explosion Proof Actuator is a high-performance multi-turn electric solution designed for automated gate valve control in hazardous environments. Featuring SIL3-certified safety, wireless diagnostics, and low-energy VFD operation, it excels in petrochemical, mining, and marine applications. The actuator’s modular design supports both retrofit installations and new automation projects, offering seamless integration with DCS/PLC systems.

Key Features

  1. Dual Safety Certification: ATEX/IECEx for gas/dust zones and SIL3 for functional safety.
  2. Intelligent Torque Control: Auto-adjusts output to prevent valve damage.
  3. Low Power Consumption: 30% energy savings compared to traditional actuators.
  4. Remote Configuration: Bluetooth/APP-based setup and diagnostics.
  5. Corrosion-Resistant: 316L stainless steel components for marine/offshore use.

Technical Specifications

Parameter Specification
Actuator Type Multi-turn electric
Torque Range 1,890–22,800 N·m
Position Feedback Absolute encoder (±0.05% accuracy)
Communication Profibus PA, Modbus TCP
Emergency Stop Cat. 0/1/2 (per IEC 60204-1)
Weight 45–180 kg
Environmental Temp -40…+70°C (-40…+158°F)
Vibration Resistance 5g @ 20-200Hz

Applications

  • Petrochemical: Emergency shutdown valves (ESDV) in flammable areas.
  • Mining: Tailings dam flow control in dust-prone environments.
  • Marine: Ballast water treatment on offshore vessels.
  • Food Processing: CIP/SIP valve automation in sterile environments.

Contact Us
Phone: +86-15000725058 (WeChat/WhatsApp supported)
Email: edward.zhao@gongboshi.com
Website: https://www.shgongboshi.com/contactus.html
