AUMA SA+GS Electric Valve Actuator with Gearbox 34-13500Nm Torque
AUMA SA+GS Electric Valve Actuator with Gearbox 34-13500Nm Torque
AUMA SA+GS Electric Valve Actuator with Gearbox 34-13500Nm Torque
AUMA SA+GS Electric Valve Actuator with Gearbox 34-13500Nm Torque
AUMA SA+GS Electric Valve Actuator with Gearbox 34-13500Nm Torque
AUMA SA+GS Electric Valve Actuator with Gearbox 34-13500Nm Torque
AUMA SA+GS Electric Valve Actuator with Gearbox 34-13500Nm Torque
AUMA SA+GS Electric Valve Actuator with Gearbox 34-13500Nm Torque
AUMA SA+GS Electric Valve Actuator with Gearbox 34-13500Nm Torque
AUMA SA+GS Electric Valve Actuator with Gearbox 34-13500Nm Torque
Specifications
Brand Name :
AUMA
Model Number :
SA
MOQ :
1
Price :
US $1800.00 - 1999.00/ Unit
Payment Terms :
T/T
Supply Ability :
500 units per year
Delivery Time :
60-90 work days
Packaging Details :
Wooden box + protection
Input Signal :
4-20mA DC or 0-10mA DC
Torque :
34~13500Nm
Power :
Electric
Voltage :
AC / DC 220V, AC 380V
Frequency :
50HZ / 60HZ
Description

AUMA SA+GS Series: Integrated Electric Valve Actuators & Gearboxes

Product Overview

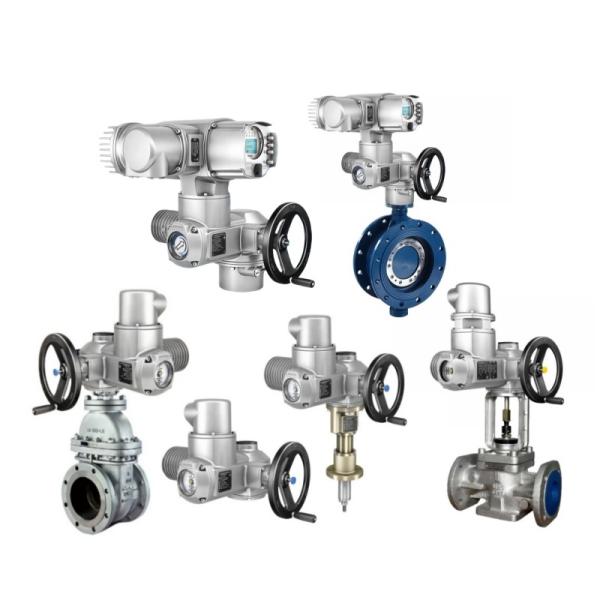

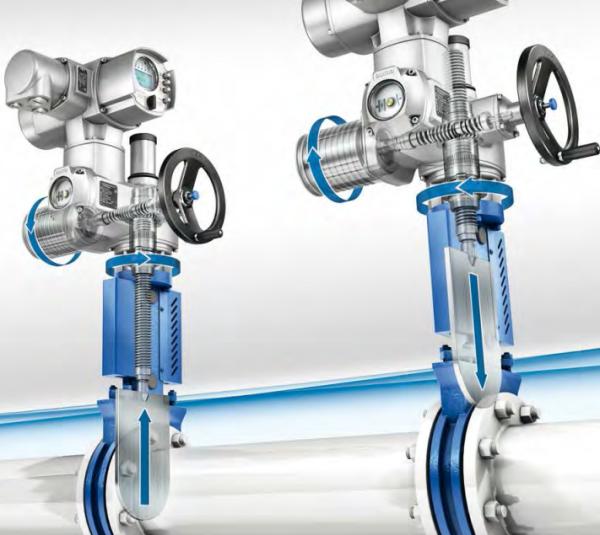

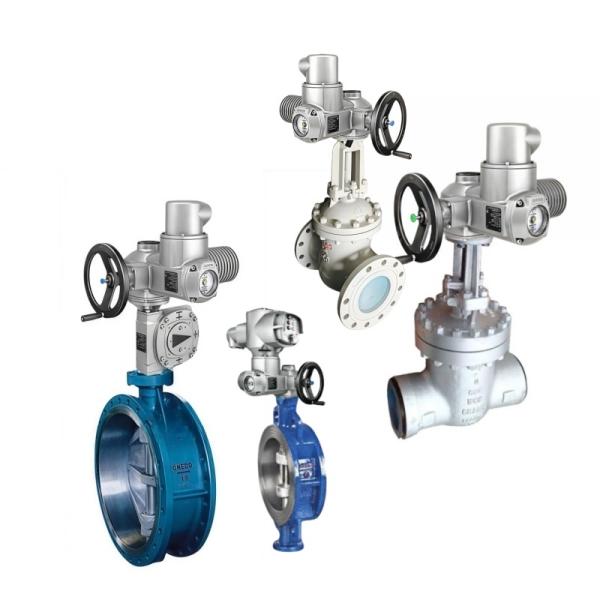

The AUMA SA+GS series combines advanced multi-turn electric actuators (SA) with precision part-turn gearboxes (GS) to deliver complete valve automation solutions. As a leading China-based supplier, we specialize in motorized control systems for butterfly valves, ball valves, gate valves, and globe valves. This integrated package ensures seamless operation for industrial valve applications requiring both linear and rotary motion control.

Key Features

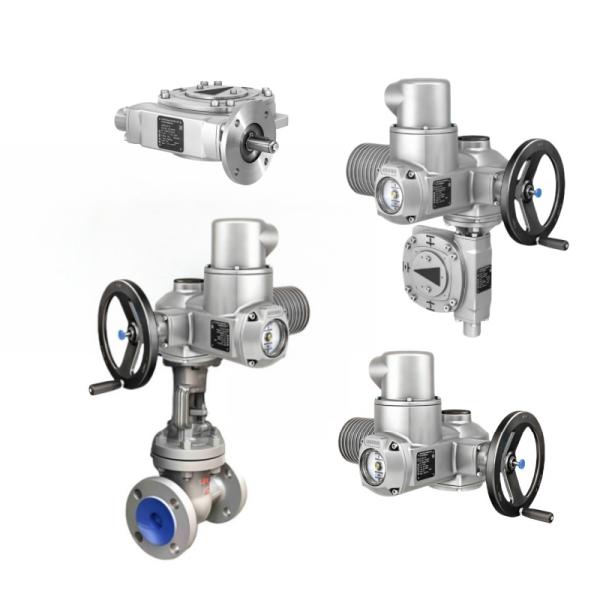

Modular Integration: Pre-assembled SA actuator + GS gearbox units

Wide Torque Range: 40 Nm to 3,000 Nm (actuator) + 500 Nm to 10,000 Nm (gearbox)

Smart Control: Digital positioner with 4-20mA feedback and bus communication

Versatile Mounting: ISO5211/F05-F14 flange compatibility

Environmental Resistance: IP68 enclosure with corrosion-resistant coating

Safety Compliance: SIL3 certification, dual torque sensors

Local Support: China-based engineering team for customization

Technical Specifications

Parameter AUMA SA Actuator AUMA GS Gearbox
Models SA/SAR/SAV/SAEX GS/GSA/GSD
Voltage 24V DC - 480V AC N/A (Mechanical Drive)
Output Torque 40-2,000 Nm 500-10,000 Nm
Control Signal 4-20mA, Modbus, Profinet Manual Override
Protection IP67/IP68 IP66
Temperature Range -40°C to +80°C -30°C to +80°C
Weight 12-150 kg 8-200 kg
Certification ATEX, CSA, IECEx ATEX, CSA

Applications

Perfect for automated systems in:

Oil & Gas: Pipeline isolation valves

Marine Engineering: Shipboard cargo systems

Power Plants: Cooling water valve control

Water Treatment: Sludge handling valves

Chemical Industry: Corrosive medium regulation

HVAC Systems: Large-scale damper control
