Specifications
Brand Name :
Endress+Hauser
Model Number :
Proline Promass F 300 / F 500
MOQ :
1
Price :
US $1600.00 - 2000.00/ Units
Payment Terms :
T/T
Supply Ability :
400 units per year
Delivery Time :
60-90 work days
Packaging Details :
Cardboard box/wooden box + protection
Nominal diameter range :
DN 8 to 250
Max. process pressure :
PN 100, Class 600, 63K
Inputs :
Status input ,4-20 mA input
Temperature range :
-40 to +60 °C (-40 to +140 °F)
Power supply :
DC 24 V ,AC 100 to 230 V
Measuring range :
0 to 2 200 000 kg/h (0 to 80 840 lb/min)
Measuring principle :
Coriolis
Description

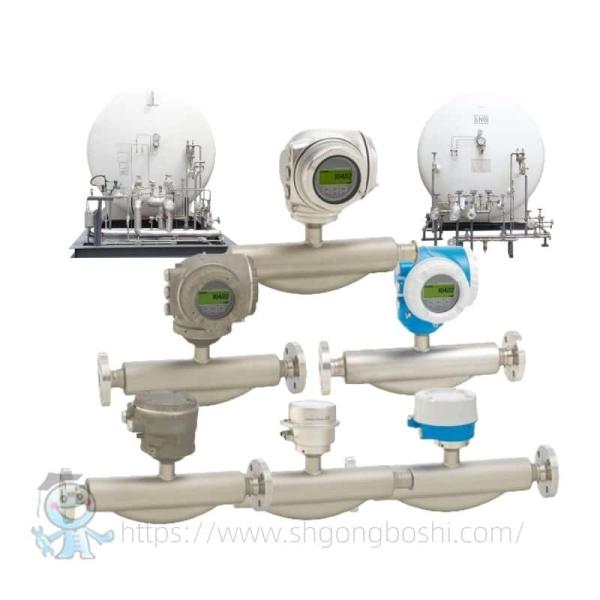

Endress+Hauser Proline Promass F 300/F 500 Coriolis Mass Flow Meter

Product Overview

The Endress+Hauser Proline Promass F 300/F 500 series represents the pinnacle of Coriolis flow measurement technology. These multivariable transmitters provide simultaneous mass flow, density, and temperature measurements with industry-leading ±0.05% accuracy. Built for harsh environments, the F 500 model features extended temperature resistance (-196°C to +350°C) and remote transmitter capabilities, while the F 300 offers compact integration for standard industrial applications.

Key Features

Premium Accuracy: 0.05% mass flow measurement error (PremiumCal)

Multivariable Output: Simultaneous flow, density, and temperature data

HeartBeat Technology: Continuous self-diagnostics and verification

Wide Compatibility: Handles liquids, gases, and slurries regardless of viscosity

Advanced Diagnostics: Predictive maintenance through process monitoring

Hygienic Design: EHEDG and 3-A certified versions available

Flexible Communication: HART, PROFIBUS PA, FF, Modbus TCP

Technical Specifications

Parameter Proline Promass F 300 Proline Promass F 500
Accuracy ±0.05% (mass flow) ±0.05% (mass flow)
Temperature Range -50°C to +200°C (-58°F to +392°F) -196°C to +350°C (-320°F to +662°F)
Nominal Diameter DN 8 to DN 250 (³⁄₈ to 10") DN 8 to DN 250 (³⁄₈ to 10")
Pressure Rating Up to 400 bar (5800 psi) Up to 400 bar (5800 psi)
Housing Material 316L Stainless Steel 316L/Hastelloy C/Tantalum
Communication HART, PROFIBUS PA, FF HART, PROFIBUS PA, FF, Modbus TCP
Safety Certification SIL 2/3, ATEX, IECEx SIL 2/3, ATEX, IECEx, CSA

Applications

Chemical Industry: Precise measurement of solvents, latex, and aggressive chemicals

Oil & Gas: Custody transfer of crude oil, LNG, and refined products

Food & Beverage: Hygienic measurement of edible oils and dairy products

Pharmaceuticals: Sterile process control in WFI and CIP systems

Energy Management: Steam/gas flow measurement in power plants

Marine Applications: Offshore fuel consumption monitoring
