Specifications
Brand Name :
Endress+Hauser
Model Number :
Deltabar PMD75
MOQ :
1
Price :
US $1220.00 - 2500.00/ Units
Payment Terms :
T/T
Supply Ability :
500 units per year
Delivery Time :
60-90 work days
Packaging Details :
Wooden Box + Protection
Process temperature(Standard) :
-40 to +125 °C (-40 to +257 °F)
Process connections :
Threaded, flange, hygienic, remote seal
Applications :
hygienic, chemical, and oil & gas applications
Wetted materials :
316L stainless steel, Alloy C, Tantalum (optional)
Output signal :
4 to 20 mA with HART
Description

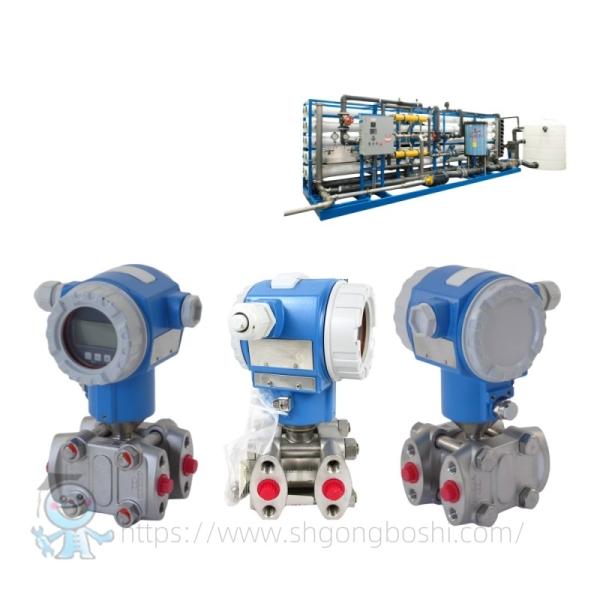

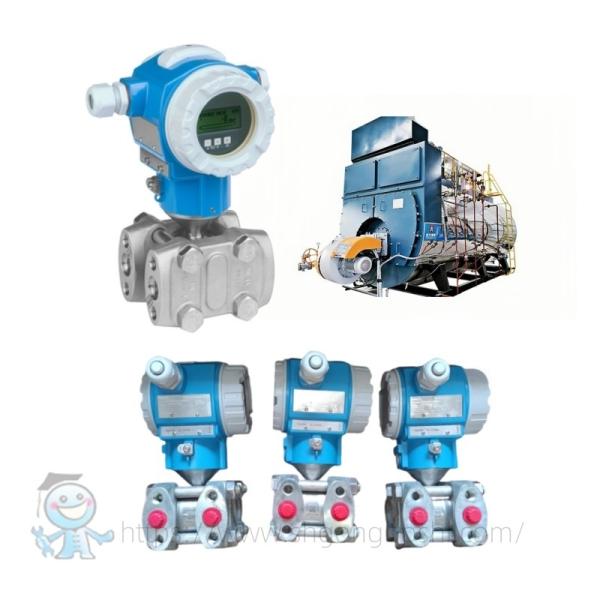

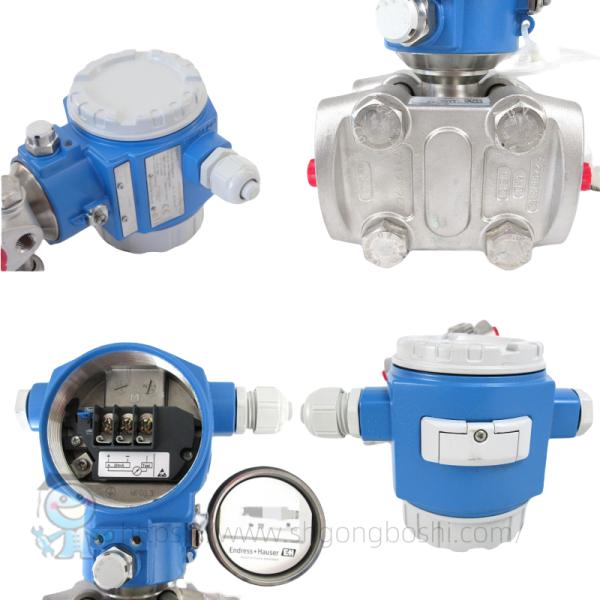

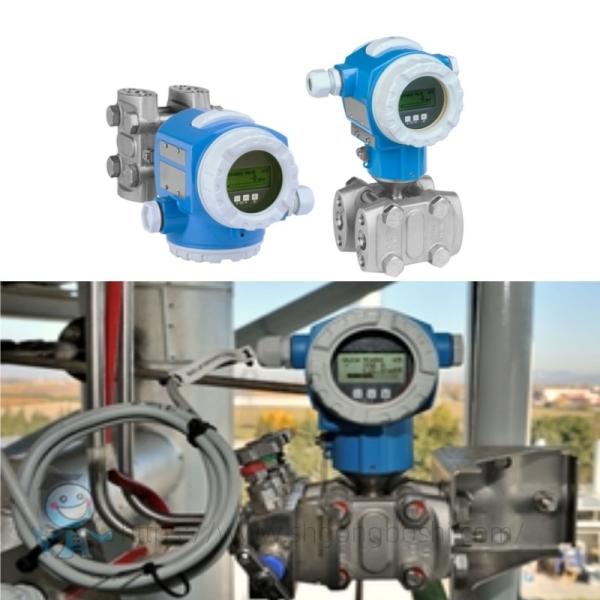

Endress+Hauser Deltabar PMD75 Flow Control Transmitter

Product Overview

The Endress+Hauser Deltabar PMD75 represents the pinnacle of flow measurement technology. This differential pressure transmitter with metal sensor provides unmatched accuracy for liquid flow control applications. Its modular architecture and Bluetooth connectivity enable seamless integration into modern process control systems while maintaining compatibility with traditional setups.

Key Features

Flow Optimized: Precision engineering for liquid/gas/vapor flow applications

Metal Sensor: Robust piezoresistive design withstands pressure surges

SmartBlue App: Wireless configuration via mobile devices

High Turndown: 100:1 flow rangeability reduces inventory costs

Diagnostic Coverage: Comprehensive self-checks for process safety

Global Certifications: NACE, EN10204-3.1, WHG compliant

Technical Specifications

Parameter Specification
Sensor Type Piezoresistive metal diaphragm
Flow Accuracy ±0.075% (standard), ±0.05% (platinum)
Pressure Rating 420 bar max (6300 psi)
Temperature Range -40°C to +110°C (-40°F to +230°F)
Output Signals 4-20mA HART, PROFIBUS PA, FF
Housing Materials 316L, Alloy C, Tantalum, Monel
Electrical Area Ex ia (intrinsically safe)
Mounting Options DIN rail, surface, pipe

Applications

Chemical Processing: Corrosive liquid flow measurement

Oil & Gas: Custody transfer and wellhead monitoring

Water Treatment: Municipal water/wastewater flow control

Food & Beverage: CIP/SIP process flow verification

Pharmaceutical: Sterile liquid dosing systems
