Electropneumatic Valve Positioners Control Valves Samson 3730-3 HART Protocol
Electropneumatic Valve Positioners Control Valves Samson 3730-3 HART Protocol
Electropneumatic Valve Positioners Control Valves Samson 3730-3 HART Protocol
Electropneumatic Valve Positioners Control Valves Samson 3730-3 HART Protocol
Electropneumatic Valve Positioners Control Valves Samson 3730-3 HART Protocol
Electropneumatic Valve Positioners Control Valves Samson 3730-3 HART Protocol
Electropneumatic Valve Positioners Control Valves Samson 3730-3 HART Protocol
Electropneumatic Valve Positioners Control Valves Samson 3730-3 HART Protocol
Electropneumatic Valve Positioners Control Valves Samson 3730-3 HART Protocol
Electropneumatic Valve Positioners Control Valves Samson 3730-3 HART Protocol
Specifications
Brand Name :
Samson
Model Number :
3730-3
MOQ :
1
Price :
US $1225.00 - 1530.00/ Set
Payment Terms :
T/T
Delivery Time :
40-60 work days
Communication Protocol :
4-20 mA HART
Output Signal :
Pneumatic pressure up to 145 psig (10 bar)
Protection Rating :
IP66/IP67
Power Supply :
24V DC
Diagnostic Functions :
Real-time valve health monitoring and performance diagnostics
Input Signal :
4-20 mA DC with split-ranging capability
Accuracy :
±0.50% of output span (independent linearity)
Ambient Temperature Range :
-40°C to 85°C (-40°F to 185°F) standard
Material :
Aluminum alloy or stainless steel
Description

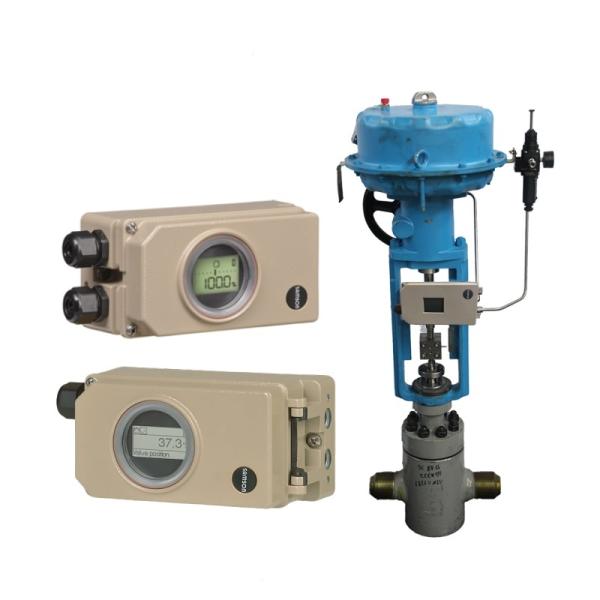

Samson 3730 - 3: Superior Valve Positioning Solution​

The Samson 3730 - 3 is a top - tier electropneumatic positioner, bridging electrical and pneumatic valve control systems.​

Electropneumatic Valve Positioners Control Valves Samson 3730-3 HART Protocol

Features​

  • Exceptional Accuracy: Minimizes hysteresis and repeatability errors for stable process control.​
  • Smart Communication: Hart® protocol allows real - time data transmission.​
  • Durable Design: Resists corrosion, dust, and high temperatures.​
  • Advanced Diagnostics: Pinpoints faults for quick resolution.​
  • Versatile Mounting: Fits diverse actuator types and orientations.​
  • Easy Configuration: One - knob or software - based setup with simple initialization.​

Applications​

  • Ideal for pharmaceutical, food & beverage, mining, and HVAC sectors, ensuring precise valve operation in various applications.​
