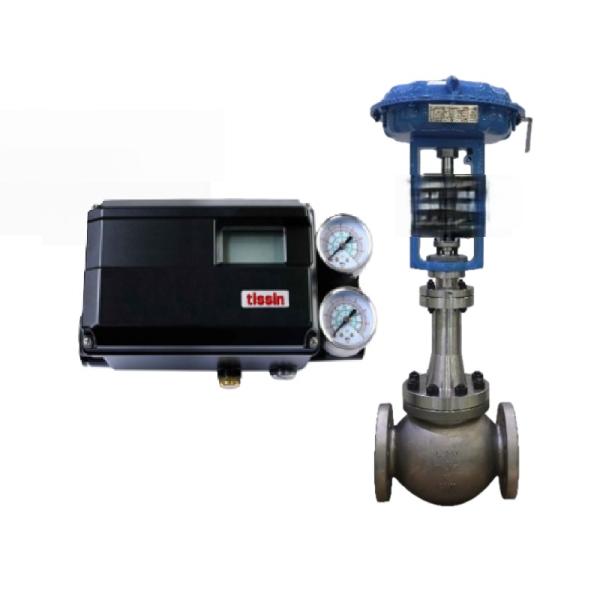

High-Precision Tissin TS700 Smart Positioner with Chinese Valve for Industrial Applications
High-Precision Tissin TS700 Smart Positioner with Chinese Valve for Industrial Applications
Specifications
Brand Name :
Tissin
Model Number :
Tissin TS700
MOQ :
1
Price :
Negotiation
Maximum Displacement :
150,000kg/h
Programming Language :
G-code/C/C++/Python
Actuator Type :
Diaphragm, Piston, Rotary
Customized Support :
OEM
Ambient Humidity :
10 To 95% Non-condensing
Installation Method :
Bracket Or Flange Installation
Enclosure :
IP66
Pressure Rating :
Class 150 - 2500
Process Connection Type :
Flanged
Lining :
without
Axes :
4
Temperatures :
-196°C to 200°C (-320°F to 392°F)
Protection :
IP66 and NEMA 4X
Temperature Range :
-320 To +842 °F (-196 To +450 °C)
Rated Travel :
7.5/15/30
Description

Tissin TS700 Intelligent Valve Positioner

- Input Signal: 4-20mA DC
- Impedance: 500Ω (at 20mA DC)
- Supply Pressure: 0.14-0.8MPa (140-800kPa)
- Stroke:
- Linear Type: 10-150mm
- Rotary Type: 0-90°

- Air Connection: PT 1/4, NPT 1/4, G1/4
- Gauge Connection: PT 1/8, NPT 1/8
- Air Consumption: Below 0.01LPM (at 0.14MPa supply pressure)
- Enclosure: IP66 (EN60529)
- Explosion Proof Type: Ex ia IIC T5/T6 Gb, Ex ia IIIC T100°C/85°C Db
- Material: Aluminum die-cast
- Features:
- Fast response time, durability, and excellent stability.
- Simple zero and span adjustment.
- Strong anti-vibration performance.
- Built-in air filter.
- HART communication protocol (HART 7).
- Limit switch (mechanical or proximity type).
- When standby signal, zero air consumption.
- External air exhaust design prevents circuit board corrosion.
- Quick and easy auto calibration.

- Applications: Suitable for various scenarios such as oil and gas processing, chemical processing, water treatment, etc.
