Samson 3730 Eectropneumatic Valve Positioner 3 Way Pneumatic Control Valve
Samson 3730 Eectropneumatic Valve Positioner 3 Way Pneumatic Control Valve
Samson 3730 Eectropneumatic Valve Positioner 3 Way Pneumatic Control Valve
Samson 3730 Eectropneumatic Valve Positioner 3 Way Pneumatic Control Valve
Samson 3730 Eectropneumatic Valve Positioner 3 Way Pneumatic Control Valve
Samson 3730 Eectropneumatic Valve Positioner 3 Way Pneumatic Control Valve
Samson 3730 Eectropneumatic Valve Positioner 3 Way Pneumatic Control Valve
Samson 3730 Eectropneumatic Valve Positioner 3 Way Pneumatic Control Valve
Samson 3730 Eectropneumatic Valve Positioner 3 Way Pneumatic Control Valve
Samson 3730 Eectropneumatic Valve Positioner 3 Way Pneumatic Control Valve
Samson 3730 Eectropneumatic Valve Positioner 3 Way Pneumatic Control Valve
Samson 3730 Eectropneumatic Valve Positioner 3 Way Pneumatic Control Valve
Specifications
Brand Name :
Samson
Model Number :
3730-3
MOQ :
1
Price :
US $1600.00 - 2000.00/ Set
Payment Terms :
T/T
Delivery Time :
60-90 work days
temperature of media :
Normal Temperature, Medium Temperature, Low Temperature, High Temperature, Other
Operational Pressure Range :
Customized
Nominal diameter :
DN250 to DN450
Description

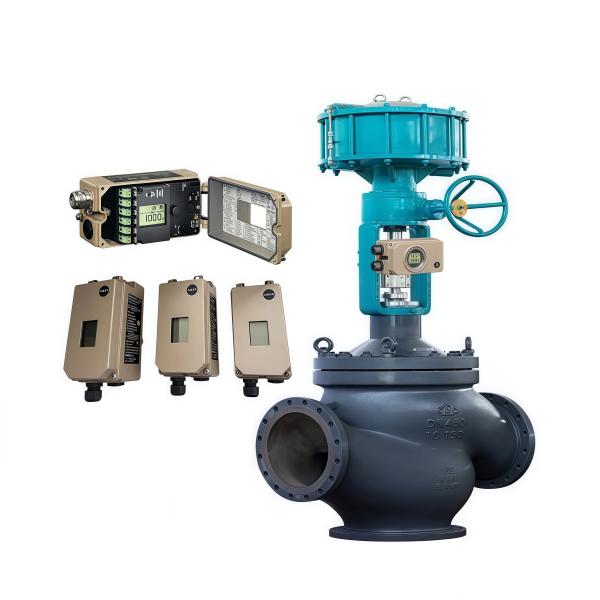

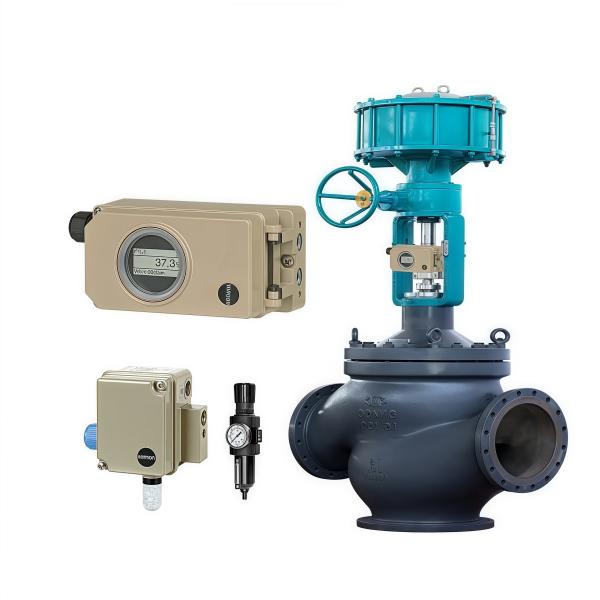

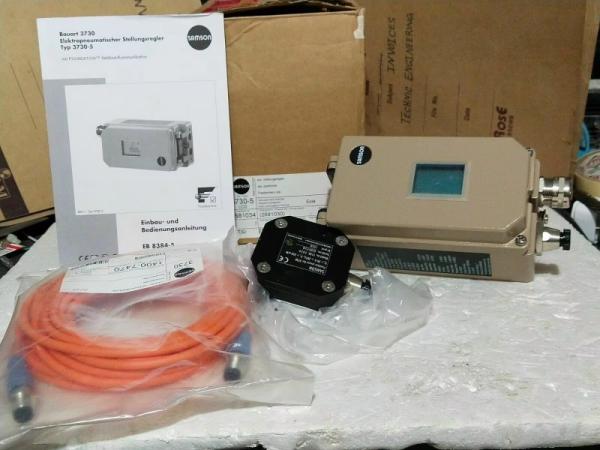

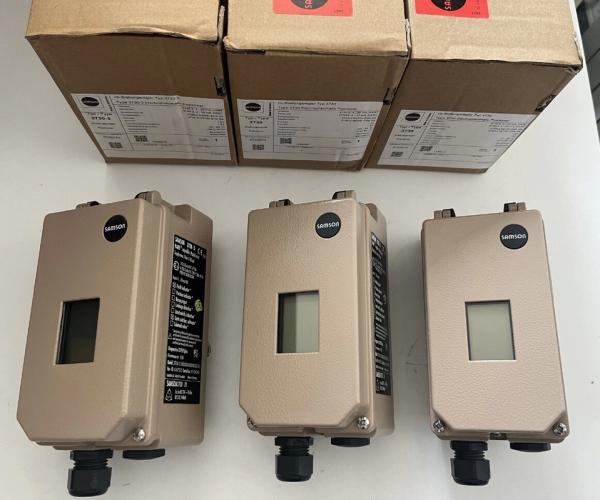

Samson 3730-3 Electropneumatic Valve Positioner & China Large Diameter Three Way Valve Customized Control Valve

Product Overview

The Samson 3730-3 Electropneumatic Valve Positioner is a high-precision instrument designed for pneumatic control valves, offering precise positioning and automation in industrial processes. Combined with China's large-diameter three-way valves, this system provides customized solutions for complex flow control, particularly in heat exchangers and multi-path fluid management. The integration ensures reliable performance in demanding environments.

Features

  1. Precision Control: Utilizes HART communication and a 4–20 mA input signal for accurate valve positioning.
  2. Adaptability: Self-calibrates to match valve and actuator specifications, supporting both single- and double-acting configurations.
  3. Durability: IP66-rated housing with Ex d certification for hazardous areas, ensuring operation in temperatures from -20°C to 80°C.
  4. User-Friendly Interface: LCD display with adjustable reading direction and single-knob menu navigation.
  5. Customization: Compatible with large-diameter three-way valves (DN15–150) for heat exchanger applications.

Technical Parameters

Parameter Specification
Input Signal 4–20 mA (HART compatible)
Valve Travel Range 3.6–200 mm (linear) / 24–100° (rotary)
Output Pressure 0.2–1.0 bar (adjustable)
Supply Voltage Two-wire system (300–410 Ω load)
Communication HART protocol
Protection Class IP66 / Ex d (flameproof)
Mounting Standards IEC 60534-6, VDI/VDE 3845, NAMUR

Applications

  • Industrial Automation: Ideal for chemical, petrochemical, and power plants requiring precise flow control.
  • Heat Exchangers: Manages fluid distribution in large-diameter three-way valves for efficient thermal regulation.
  • Hazardous Environments: Certified for use in explosive atmospheres (e.g., oil/gas refineries).
  • Custom Projects: Tailored for OEM systems needing integrated pneumatic control solutions.
