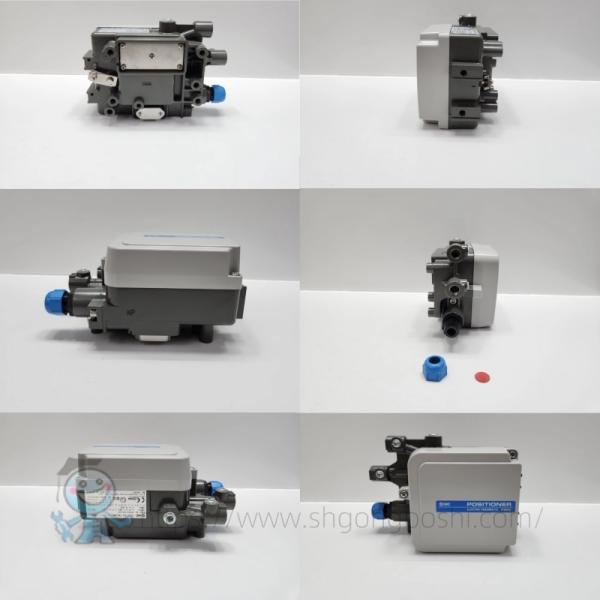

SMC IP8000 IP8001 Lever Type Smart Valve Positioner 4-20mA DC
SMC IP8000 IP8001 Lever Type Smart Valve Positioner 4-20mA DC
SMC IP8000 IP8001 Lever Type Smart Valve Positioner 4-20mA DC
SMC IP8000 IP8001 Lever Type Smart Valve Positioner 4-20mA DC
SMC IP8000 IP8001 Lever Type Smart Valve Positioner 4-20mA DC
SMC IP8000 IP8001 Lever Type Smart Valve Positioner 4-20mA DC
SMC IP8000 IP8001 Lever Type Smart Valve Positioner 4-20mA DC
SMC IP8000 IP8001 Lever Type Smart Valve Positioner 4-20mA DC
Specifications
Brand Name :
SMC
Model Number :
IP8000 IP8100 IP8001 IP8101
MOQ :
1
Price :
US $880.00 - 1080.00/ Unit
Payment Terms :
T/T
Supply Ability :
500 units per year
Delivery Time :
90 work days
Packaging Details :
Carton + wooden box + protection
Input Current :
4-20 mA DC (Standard)
Repeatability :
Within ±0.5% F.S.
Output Flow :
≥ 80 L/min (ANR) at 0.14 MPa supply; ≥ 200 L/min at 0.4 MPa
Ambient & Fluid Temperature Range: :
-20 °C to 80 °C (non-hazardous areas)
Weight :
approx. 2.4 kg
Ingress Protection :
IP65
Explosion-Proof Construction :
Yes
Description

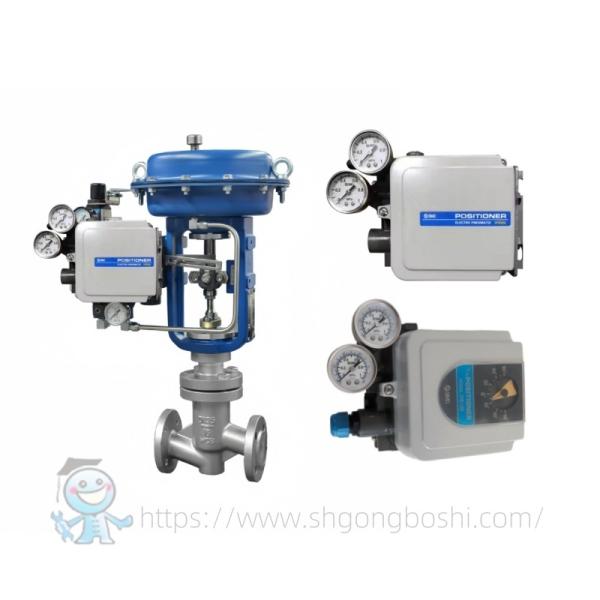

SMC IP8000/IP8001 Lever Type Smart Valve Positioner

Product Overview
The SMC IP8000/IP8001 Lever Type Smart Valve Positioner integrates advanced electro-pneumatic control with energy-efficient design. Ideal for globe/gate valves, the IP8001 model features HART communication and LCD display for real-time monitoring. It reduces air consumption by 60% compared to traditional models, making it a cost-effective solution for industrial automation.

Technical Parameters

Parameter IP8000 IP8001
Input Current 4-20mA DC 4-20mA DC
Supply Air Pressure 0.14-0.7 MPa 0.14-0.7 MPa
Standard Stroke 10-85mm (10-30°) 10-85mm (10-30°)
Sensitivity ≤0.1%F.S. ≤0.2%F.S.
Linearity ±0.1%F.S. ±1%F.S.
Output Flow 80L/min (ANR) 80L/min (ANR)

Key Features

HART protocol for remote parameter adjustment.

Internal push-button calibration.

ATEX-certified explosion-proof options.

LCD screen for deviation/input value display.

Applications

Pharmaceutical sterile processes.

Food & beverage packaging lines.

Water treatment systems.
