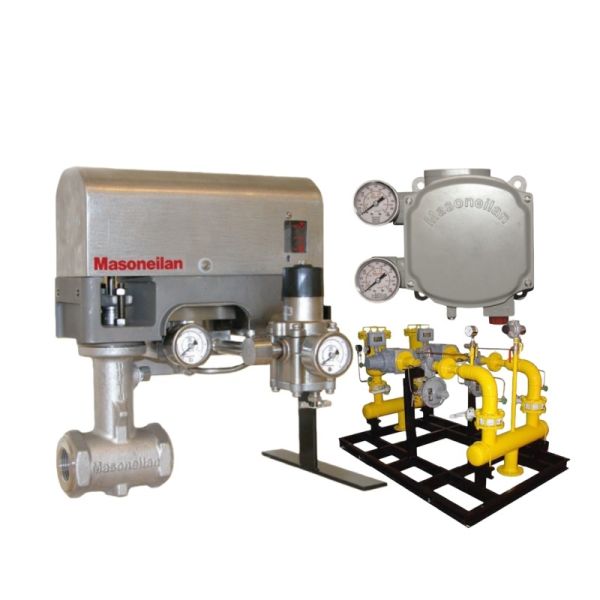

High Accuracy Control Valve OEM Masonielan 28000 Series Varipak Valve 28000 Series Microflow Control Valve for Petrochemical
High Accuracy Control Valve OEM Masonielan 28000 Series Varipak Valve 28000 Series Microflow Control Valve for Petrochemical
High Accuracy Control Valve OEM Masonielan 28000 Series Varipak Valve 28000 Series Microflow Control Valve for Petrochemical
High Accuracy Control Valve OEM Masonielan 28000 Series Varipak Valve 28000 Series Microflow Control Valve for Petrochemical
High Accuracy Control Valve OEM Masonielan 28000 Series Varipak Valve 28000 Series Microflow Control Valve for Petrochemical
High Accuracy Control Valve OEM Masonielan 28000 Series Varipak Valve 28000 Series Microflow Control Valve for Petrochemical
High Accuracy Control Valve OEM Masonielan 28000 Series Varipak Valve 28000 Series Microflow Control Valve for Petrochemical
High Accuracy Control Valve OEM Masonielan 28000 Series Varipak Valve 28000 Series Microflow Control Valve for Petrochemical
Specifications
Brand Name :
Masonielan
Model Number :
28000 Series
MOQ :
1
Price :
US $2800.00 - 3500.00/ Set
Payment Terms :
T/T
Supply Ability :
500 sets per year
Delivery Time :
60 work days
Packaging Details :
As required
Operational Pressure Range :
ANSI 150 - 1500
power :
Pneumatic
Repeatability :
0.1%
port size :
1/8" NPT
Description
Product Overview

The Masoneilan 28000 VariPak is the industry-standard micro-flow control valve specifically engineered for precise regulation of extremely low flows in laboratory, pilot plant, and research applications. With ten interchangeable plug-and-seat trim sets covering Cv from 0.001 to 4.0 and a field-adjustable 10:1 turndown, it offers unmatched flexibility without changing the valve body. The compact ¾" angle body with ANSI 900/1500# end connections and heavy-duty bellows or graphite packing ensures ANSI Class VI shutoff even at high pressures. Trusted for over 50 years in catalyst injection, dosing, and sampling systems worldwide.

Key Features
  • 10 Interchangeable Trim Sets: Cv 0.001 to 4.0 in one body
  • Field-Adjustable Turndown: Up to 10:1 per trim set
  • ANSI Class VI Shutoff: Soft-seat or metal-seat options
  • Compact ¾" Angle Body: Minimal dead volume
  • High Pressure Rating: ANSI 900/1500# standard
  • Bellows Seal Option: Zero leakage to atmosphere
  • Anti-Cavitation Trim: Multi-stage Lo-dB available
  • Stellite or Alloy 6 Overlay: For erosive service
Technical Specifications
Parameter Specification
Size ¾" (DN20) angle body
Cv Range 0.001, 0.004, 0.010, 0.025, 0.06, 0.10, 0.25, 0.60, 1.7, 4.0
Pressure Rating ANSI Class 900 / 1500 (up to 255 bar)
End Connections NPT, Socket Weld, Butt Weld, Flanged
Temperature Range -100°C to +400°C
Body Material 316L SST, Hastelloy C, Monel
Shutoff Class ANSI Class VI (soft seat), Class V (metal)
Flow Characteristic Linear (standard), Equal % option
Leakage less than 0.0001 ml/min (bellows)
Applications
  • Catalyst injection in pilot plants
  • Laboratory analytical sampling
  • High-pressure reactor dosing
  • Fuel cell research loops
  • Supercritical CO₂ test rigs
Frequently Asked Questions
Can I change Cv on site?

Yes — simply replace the plug and seat trim in minutes.

What is the smallest Cv?

0.001 (1*10⁻³) — ideal for µl/min flows.

Is it zero-leak to atmosphere?

Yes with optional bellows seal bonnet.

Does it handle cavitation?

Yes — multi-stage Lo-dB trim available.
