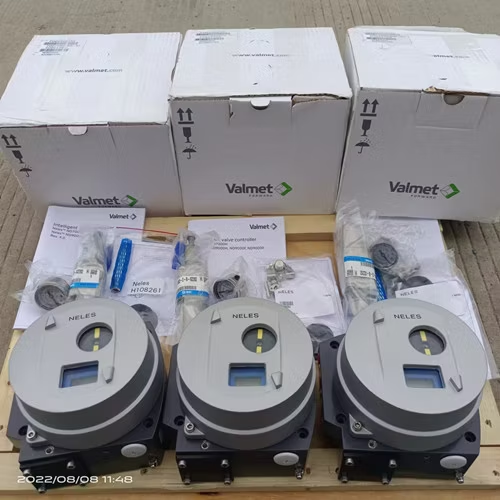

Supplier Valmet Control Valve Neles ND9000 ND9100 ND9200 Series Digital Intelligent Valve Positioner Smart Valve Controller
Supplier Valmet Control Valve Neles ND9000 ND9100 ND9200 Series Digital Intelligent Valve Positioner Smart Valve Controller
Supplier Valmet Control Valve Neles ND9000 ND9100 ND9200 Series Digital Intelligent Valve Positioner Smart Valve Controller
Supplier Valmet Control Valve Neles ND9000 ND9100 ND9200 Series Digital Intelligent Valve Positioner Smart Valve Controller
Supplier Valmet Control Valve Neles ND9000 ND9100 ND9200 Series Digital Intelligent Valve Positioner Smart Valve Controller
Supplier Valmet Control Valve Neles ND9000 ND9100 ND9200 Series Digital Intelligent Valve Positioner Smart Valve Controller
Supplier Valmet Control Valve Neles ND9000 ND9100 ND9200 Series Digital Intelligent Valve Positioner Smart Valve Controller
Supplier Valmet Control Valve Neles ND9000 ND9100 ND9200 Series Digital Intelligent Valve Positioner Smart Valve Controller
Supplier Valmet Control Valve Neles ND9000 ND9100 ND9200 Series Digital Intelligent Valve Positioner Smart Valve Controller
Supplier Valmet Control Valve Neles ND9000 ND9100 ND9200 Series Digital Intelligent Valve Positioner Smart Valve Controller
Specifications
Brand Name :
Neles
Model Number :
ND9000
MOQ :
1
Price :
US $1200.00 - 1600.00/ Set
Payment Terms :
T/T
Supply Ability :
2000 set per year
Delivery Time :
60 days
Packaging Details :
As required
Class of protection :
IP65
temperature range :
-40 ... + 50°C /-40 ... + 65°C
Input :
4-20mA
Condition :
New
Description
Product Overview

The Neles ND9000 is the global benchmark intelligent valve positioner trusted in over 1.5 million critical control loops worldwide. Featuring proven spool-valve technology, ultra-low steady-state air consumption (as low as 0.15 Nl/min), and advanced online diagnostics (valve signature, performance metrics, friction analysis), it delivers ±0.35% accuracy across linear and rotary actuators. Fully compatible with HART 7, Foundation Fieldbus, and Profibus PA, the ND9000 integrates seamlessly with all major DCS/asset management systems and is certified for SIL 2/3 safety applications.

Key Features
  • Ultra-Low Air Consumption: 0.15 Nl/min (HART), 0 Nl/min (FF/PROFIBUS)
  • Advanced Diagnostics: Online valve signature, stiction, performance monitoring
  • One-Button Auto-Calibration: Complete setup in under 60 seconds
  • HART 7 / Foundation Fieldbus / Profibus PA: Full digital communication
  • Neles Valve Manager (NDM) Software: Graphical diagnostics & reporting
  • Non-Contact Position Sensor: Zero wear, lifelong accuracy
  • SIL 2/3 Capable: Certified for safety instrumented functions
  • IP66 / NEMA 4X + Explosion-Proof: ATEX, IECEx, FM, CSA
Technical Specifications
Parameter Specification
Input Signal 4–20 mA + HART 7 / Foundation Fieldbus H1 / Profibus PA
Air Supply 1.4–8 bar (20–115 psi)
Accuracy ±0.35% F.S.
Air Consumption 0.15 Nl/min (HART), 0 Nl/min (FF/PROFIBUS)
Stroke / Angle Linear 10–120 mm; Rotary 30–120°
Temperature Range -40°C to +85°C
Enclosure IP66 / NEMA 4X, optional stainless steel
Hazardous Area Ex ia, Ex d, Ex nA (ATEX, IECEx, FM, CSA)
SIL Capability SIL 2 (SIL 3 in redundant configuration)
Applications
  • Oil & gas production, LNG, refining
  • Petrochemical and chemical processing
  • Pulp & paper
  • Power generation
  • Pharmaceutical & food (with Neles hygienic valves)
Frequently Asked Questions
What is the air consumption on Foundation Fieldbus?

Zero steady-state — the lowest in the industry.

Is it SIL 3 capable?

Yes — in 1oo2 redundant configuration.

How long does auto-calibration take?

Typically under 60 seconds with one button press.

Contact Us

Email: edwardzhao@gbsxj.com

Phone: +8615000725058

Related Products
  • Neles NEX Series (next-generation positioner)
  • Neles Valve Manager Diagnostic Software
  • Neles Jamesbury™, Neles™ and Mapag™ valve series
