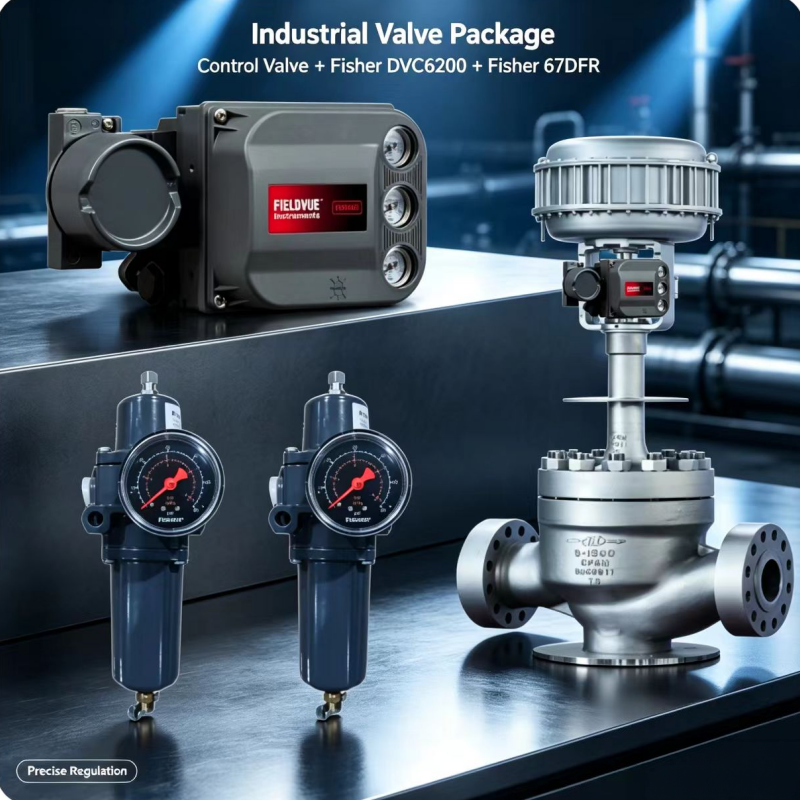

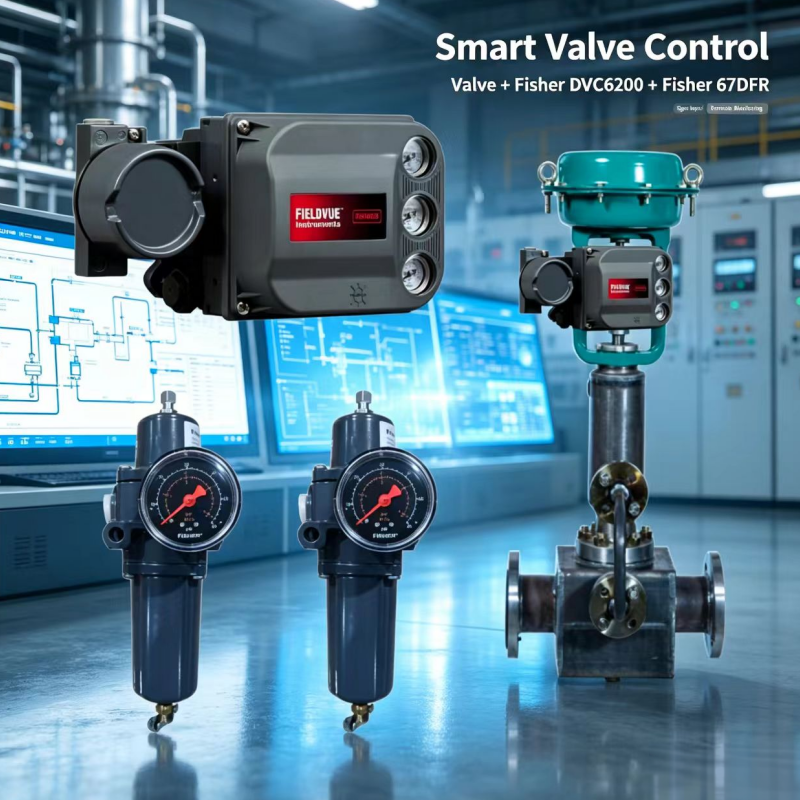

Fi sher DVC6200 Digital Valve Controller with 67DFR Filter Regulator for Precise Pneumatic Control
Fi sher DVC6200 Digital Valve Controller with 67DFR Filter Regulator for Precise Pneumatic Control
Fi sher DVC6200 Digital Valve Controller with 67DFR Filter Regulator for Precise Pneumatic Control
Fi sher DVC6200 Digital Valve Controller with 67DFR Filter Regulator for Precise Pneumatic Control
Fi sher DVC6200 Digital Valve Controller with 67DFR Filter Regulator for Precise Pneumatic Control
Fi sher DVC6200 Digital Valve Controller with 67DFR Filter Regulator for Precise Pneumatic Control
Fi sher DVC6200 Digital Valve Controller with 67DFR Filter Regulator for Precise Pneumatic Control
Fi sher DVC6200 Digital Valve Controller with 67DFR Filter Regulator for Precise Pneumatic Control
Specifications
Price :
2100 dollars
Packaging Details :
Carton + Wooden crate + Protective packaging
Diagnostics :
Yes
Data Interface :
Wired
Model Number :
DVC6200
Supply Ability :
500 units per year
Mounting Type :
Integral Mounted
Input Signal :
Electric
Payment Terms :
T/T
Communication Protocol :
4-20 mA HART
Delivery Time :
60 days
Condition :
New
Place of Origin :
China
Brand Name :
Fi sher
MOQ :
1
Description
Product Overview

The Fi sher FIELDVUE DVC6200 is a microprocessor-based digital valve controller designed for precise modulating control of pneumatic actuators. It converts a 4–20 mA control signal (or digital fieldbus commands) into a pneumatic output while providing two-way digital communication via HART 5/7, FOUNDATION Fieldbus, or PROFIBUS PA. The instrument features contactless magnetic Hall-effect position feedback, eliminating mechanical linkages and delivering high resolution, reliability, and advanced diagnostics.

Key Features
  • Linkageless, non-contact magnetic position sensing
  • Single-acting (direct or reverse) and double-acting configurations
  • Aluminum or stainless-steel housing options
  • Online and offline diagnostics (Performance Diagnostics level)
  • Partial-stroke testing capability (SIS versions)
  • Auto-calibration and performance-tuning functions
  • Optional position transmitter and discrete switches
  • SIL 3 capable (HART version when de-energized)
Technical Specifications
Parameter Specification
Input Signal 4–20 mA (HART) or digital (FF / PA)
Communication Protocols HART 5/7, FOUNDATION Fieldbus, PROFIBUS PA
Supply Pressure Up to 10 barg (145 psig)
Ambient Temperature –40 to +85 °C (–40 to +185 °F); lower with special elastomers
Housing Material Aluminum or Stainless Steel
Position Feedback Magnetic Hall-effect (linkageless)
Diagnostic Levels HC, AD, PD, ODV
Hazardous Area Approvals ATEX, IECEx, FM, CSA, etc. (Ex d / Ex ia)
SIL Capability SIL 3 (HART, de-energized to trip)
Applications

Modulating control of throttling valves in chemical, refining, power, and process industries; safety instrumented systems (SIS); high-vibration environments; and installations requiring advanced diagnostics and predictive maintenance.

Frequently Asked Questions

Q: Can the DVC6200 be used for on/off as well as modulating service?

A: Yes. Special configurations (DVC6200f with logic blocks or DVC6200 SIS) support on/off and partial-stroke testing.

Q: Is linkage-free feedback reliable in high-vibration service?

A: Yes. The magnetic array and Hall-effect sensor eliminate wear and provide stable feedback even under vibration.

Q: What diagnostic software is required?

A: ValveLink software or AMS Device Manager unlocks full Performance Diagnostics.

Contact Us

Phone/WeChat/WhatsApp: +8613916209596

Email: svetama@gbsxj.com

Related Products
  • DVC2000
  • DVC6200f (FOUNDATION Fieldbus)
  • DVC6200p (PROFIBUS PA)
  • DVC6200 SIS
  • Fi sher control valves and actuators
  • ValveLink software.
