Supmea FSC400 Ultrasonic Flow Meter Non Invasive Clamp On Water Flow Meter Industrial Flow Meter
Supmea FSC400 Ultrasonic Flow Meter Non Invasive Clamp On Water Flow Meter Industrial Flow Meter
Supmea FSC400 Ultrasonic Flow Meter Non Invasive Clamp On Water Flow Meter Industrial Flow Meter
Supmea FSC400 Ultrasonic Flow Meter Non Invasive Clamp On Water Flow Meter Industrial Flow Meter
Supmea FSC400 Ultrasonic Flow Meter Non Invasive Clamp On Water Flow Meter Industrial Flow Meter
Supmea FSC400 Ultrasonic Flow Meter Non Invasive Clamp On Water Flow Meter Industrial Flow Meter
Supmea FSC400 Ultrasonic Flow Meter Non Invasive Clamp On Water Flow Meter Industrial Flow Meter
Supmea FSC400 Ultrasonic Flow Meter Non Invasive Clamp On Water Flow Meter Industrial Flow Meter
Specifications
Flow Rate :
0.01-±12 m/s
Delivery Time :
6-8 weeks
Medium :
Water
Model Number :
FSC400
Medium Temperature :
-30°C to +90°C (Standard); Optional up to +160°C
Place of Origin :
China
Cable Length :
Standard 5 m / 10 m / 20 m; Custom up to 100 m
Product Type :
Wall-Mounted Ultrasonic Flow Meter
Price :
US $755.00 - 1100.00/ Set
Packaging Details :
Cardboard box/Wooden crate
Signal Output :
4-20 mA, Pulse Output, SPST Relay
Supply Ability :
1000 sets per year
Power Supply :
10-36 VDC or 100-240 VAC (Dual Power Option Available)
Payment Terms :
T/T
accuracy :
+/-1%
Brand Name :
Supmea
Display :
LCD Display
MOQ :
1 set
Connectivity :
Clamp-On
Description

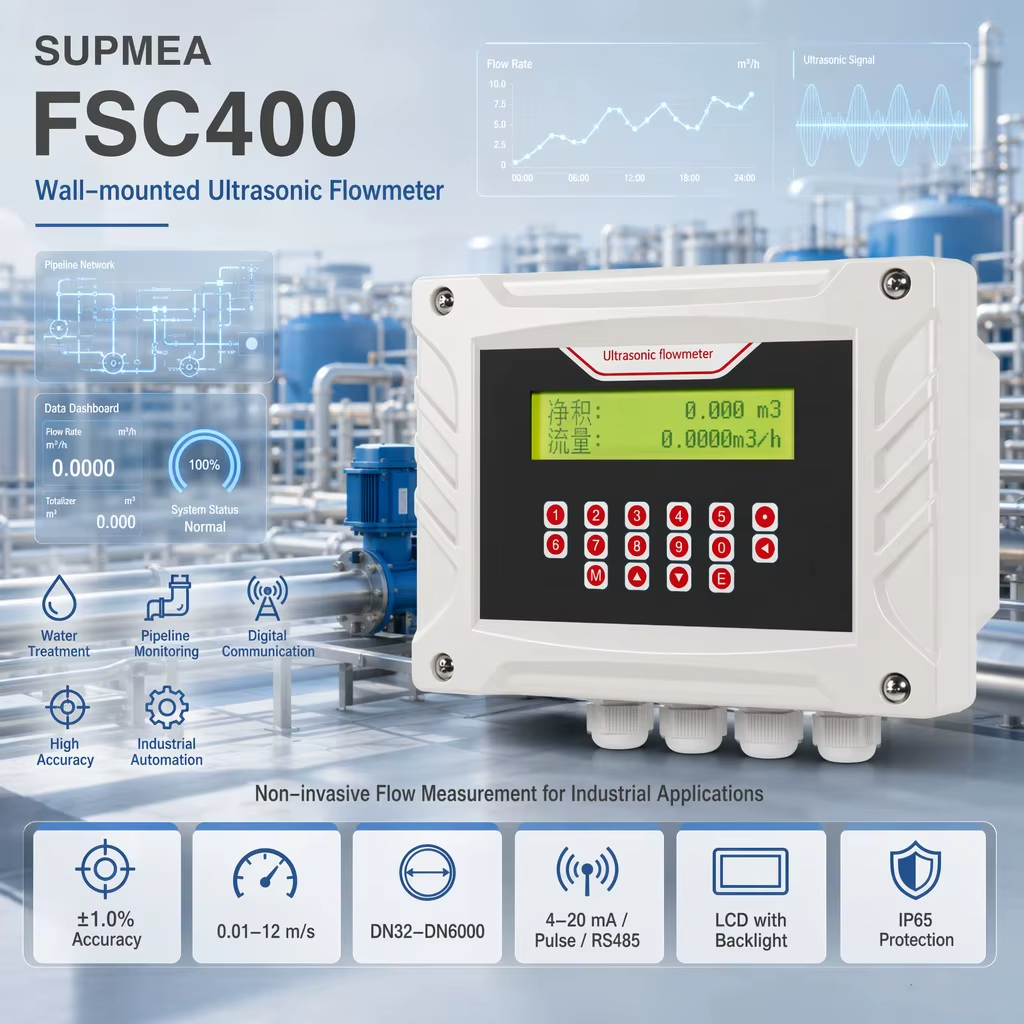

Supmea FSC400 Wall Mounted Ultrasonic Flowmeter

The FSC400 from Supmea is a practical wall-mounted ultrasonic flow meter for continuous monitoring of clean, homogeneous liquids in industrial settings. It offers non-intrusive measurement and optional heat accumulation capabilities when equipped with temperature sensors.

Product Overview

The separate host design enables flexible mounting on walls, in electrical cabinets, or instrument panels for easy long-term observation. Key advantages include low starting flow rate, high accuracy, zero pressure loss, and immunity to variations in temperature, pressure, or fluid composition. This makes it a reliable choice for fixed installation applications across various process industries.

Technical Specifications
Specification Details
Product Type Wall-mounted ultrasonic flow meter
Applicable Diameter DN15~DN300 (with clamp-on and insertion sensor options)
Accuracy Grade ±1%
Materials 304SS / 316(L)SS options
Temperature Range Medium: -30℃ to +90℃ (standard); Ambient host -25~+60℃
Outputs 4~20mA and pulse frequency
Communication Protocol RS485 with MODBUS
Power Options 10~36VDC or 100~240VAC
Enclosure Protection IP65
Mounting Style External clamp-on preferred
Application Industry

Applied in oil and gas, chemical processing, electric power, food industry, and municipal water systems for accurate liquid flow and optional thermal energy measurement.

Common Problems

Common concerns include signal quality on older pipes or the need for process shutdown during installation. The clamp-on non-invasive approach minimizes downtime and works independently of many process variables.

Replacement Models

An effective alternative or upgrade for comparable ultrasonic wall-mounted flow meters used in industrial liquid measurement.

Why Buy From Us

We focus on authentic Supmea instrumentation and provide practical assistance to match the right configuration to your measurement needs.

Stock & Delivery Time

Standard lead time is 6-8 weeks.

RFQ Form

Share your application parameters such as pipe size, fluid type, temperature range, and preferred outputs to receive a detailed quote.
