Flowserve PMV D20 Digital Valve Positioner with HART Communication 4-20mA Input Signal and IP66 Enclosure Protection
Flowserve PMV D20 Digital Valve Positioner with HART Communication 4-20mA Input Signal and IP66 Enclosure Protection
Flowserve PMV D20 Digital Valve Positioner with HART Communication 4-20mA Input Signal and IP66 Enclosure Protection
Flowserve PMV D20 Digital Valve Positioner with HART Communication 4-20mA Input Signal and IP66 Enclosure Protection
Flowserve PMV D20 Digital Valve Positioner with HART Communication 4-20mA Input Signal and IP66 Enclosure Protection
Flowserve PMV D20 Digital Valve Positioner with HART Communication 4-20mA Input Signal and IP66 Enclosure Protection
Flowserve PMV D20 Digital Valve Positioner with HART Communication 4-20mA Input Signal and IP66 Enclosure Protection
Flowserve PMV D20 Digital Valve Positioner with HART Communication 4-20mA Input Signal and IP66 Enclosure Protection
Specifications
Packaging Details :
Cardboard box/Wooden crate
Brand Name :
Flowserve
Input Signal :
4–20 mA DC
Model Number :
PMV D20
Air Supply Range :
1.5 – 6 bar (22 – 87 psi)
Payment Terms :
T/T
Enclosure Protection :
IP66 / NEMA 4X
Delivery Time :
6~8 weeks
Weight :
~1.4 kg to 1.8 kg (model dependent)
Supply Ability :
800 sets per year
Operating Temperature :
-20 to +85ºC (-4 to +179ºF); -40ºC optional
MOQ :
1
Rotation Angle :
Max 0–90º (Min 25º)
Price :
US $1780.00 - 2100.00/ Set
Air Connections :
1/4" NPT
Description

Product Overview

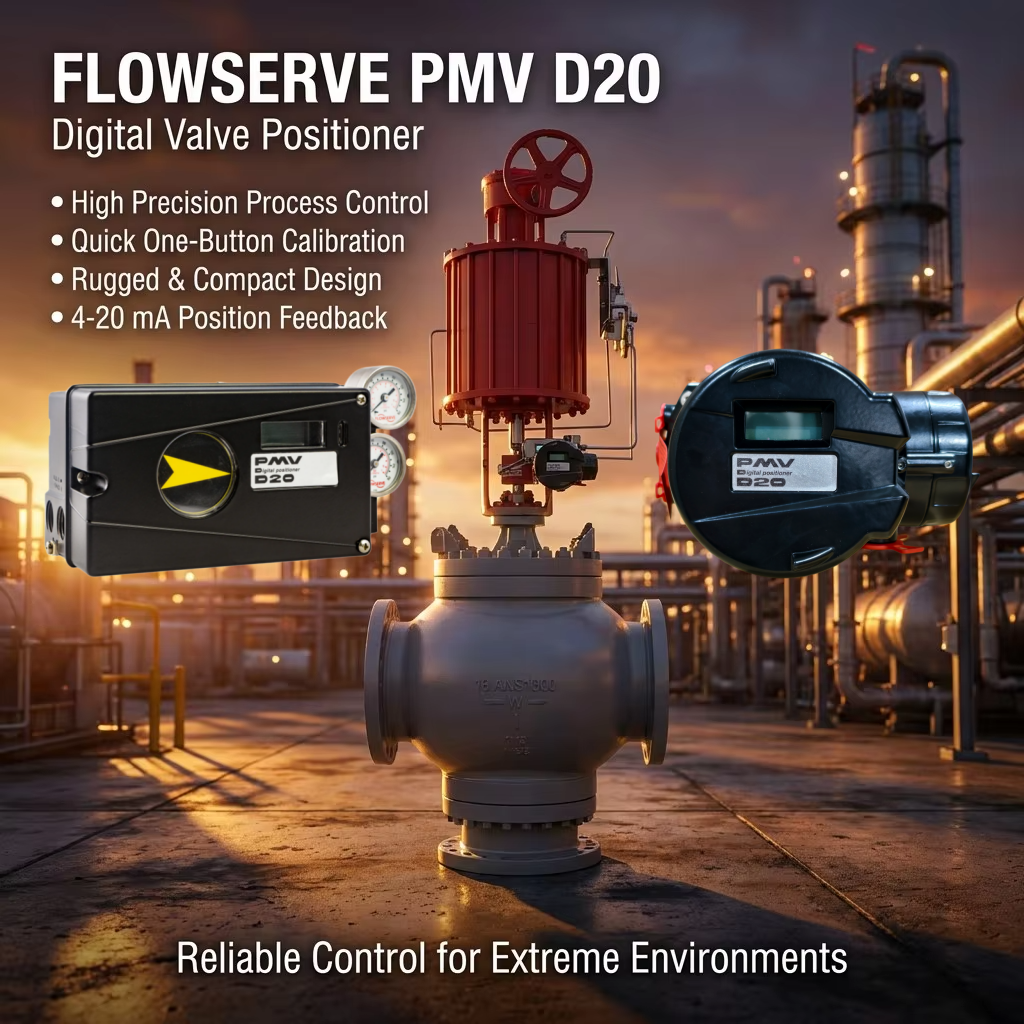

The Flowserve PMV D20 is a robust digital positioner designed for precise control of pneumatic linear and rotary actuators. It offers reliable performance with HART communication, easy local calibration, and low air consumption, making it a practical choice for general process control applications in various industries.

Technical Specifications

Parameter Specification
Input Signal 4–20 mA DC
Communication HART
Supply Air Pressure 1.4 – 7 bar (20 – 100 psig)
Air Consumption Low steady state
Stroke Range Linear up to 150 mm, rotary up to 90°
Linearity < ±1.0% FS
Operating Temperature –20 °C to +80 °C
Enclosure Rating IP65 / NEMA 4X
Housing Material Aluminum

Application Industry

  • Chemical processing
  • Petrochemical plants
  • Power generation
  • Oil & gas facilities
  • General industrial automation

Common Problems & Solutions

  • Problem: Air supply contamination → Solution: Use clean, dry instrument air and proper filter-regulator
  • Problem: Field calibration difficulty → Solution: Simple local interface and push buttons
  • Problem: Vibration affecting performance → Solution: Robust mechanical design

Replacement Models

  • Older PMV positioner models
  • Other Flowserve Logix series positioners

Why Buy From Us

  • Genuine Flowserve PMV D20 with factory warranty
  • Competitive pricing
  • Local technical support for setup and calibration
  • Reliable spare parts availability

Stock & Delivery Time

  • Standard models: 6–10 weeks typical
  • Special configurations: 8–14 weeks

RFQ Form

  • Actuator type (linear or rotary) and travel range
  • Supply air pressure available
  • Hazardous area classification (if needed)
  • Quantity & target delivery date
