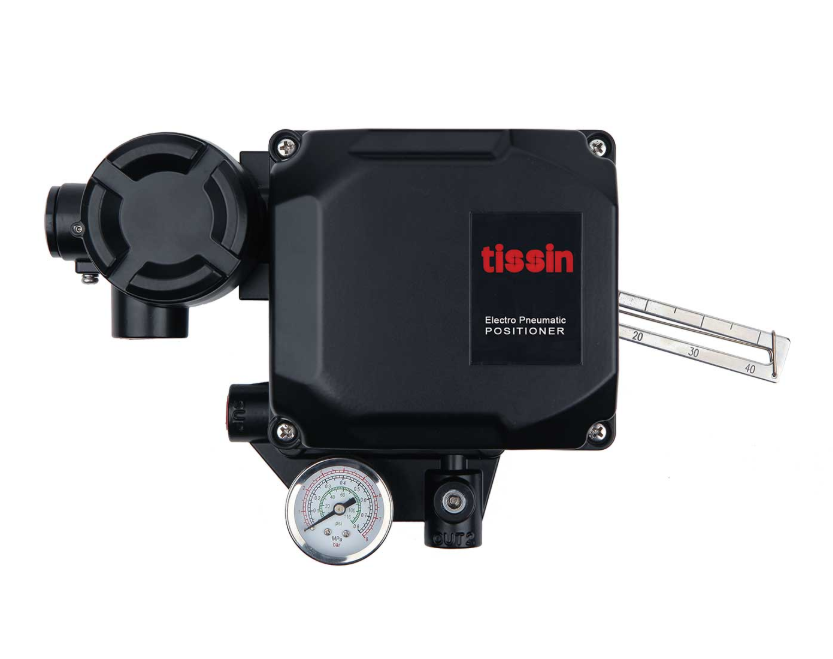

TISSIN TS600L Pneumatic Valve Positioner 4 20mA IP66 Oil Gas Chemical Power Water Industrial Actuator
TISSIN TS600L Pneumatic Valve Positioner 4 20mA IP66 Oil Gas Chemical Power Water Industrial Actuator
TISSIN TS600L Pneumatic Valve Positioner 4 20mA IP66 Oil Gas Chemical Power Water Industrial Actuator
TISSIN TS600L Pneumatic Valve Positioner 4 20mA IP66 Oil Gas Chemical Power Water Industrial Actuator
TISSIN TS600L Pneumatic Valve Positioner 4 20mA IP66 Oil Gas Chemical Power Water Industrial Actuator
TISSIN TS600L Pneumatic Valve Positioner 4 20mA IP66 Oil Gas Chemical Power Water Industrial Actuator
TISSIN TS600L Pneumatic Valve Positioner 4 20mA IP66 Oil Gas Chemical Power Water Industrial Actuator
TISSIN TS600L Pneumatic Valve Positioner 4 20mA IP66 Oil Gas Chemical Power Water Industrial Actuator
Specifications
Delivery Time :
6-8 weeks
Resistance :
250±15Ω
Model Number :
TS600L
Operating Temperature :
-20℃~70℃(Std), -40℃~70℃(Low), -20℃~120℃(High)
Payment Terms :
T/T
Valve Stroke :
10~150mm
Air Supply Connection :
P(NPT) 1/4
Price :
USD 348-498 per set
Packaging Details :
Carton/Wooden Case Packaging
Electrical Connection :
G(PF)1/2 or NPT1/2
Supply Ability :
800 sets per year
Input Pressure Range :
0.14~0.7MPa
Pressure Gauge Port :
P(NPT) 1/8
Hysteresis :
±1.0% F.S.
Place of Origin :
China
MOQ :
1
Input Signal :
4~20mA DC
Brand Name :
Tissin
Explosion Proof Temp Range :
-40℃~60℃(T5) / -40℃~40℃(T6)
Description
TISSIN TS600L Pneumatic Valve Positioner 4-20mA IP66 Oil Gas Chemical Power Water Industrial Actuator
Product Overview

The TISSIN TS600L is a linear electro-pneumatic valve positioner developed by TISSIN, a professional Korean manufacturer of valve control accessories. It converts standard 4-20mA DC control signals from DCS or control panels into proportional pneumatic pressure to precisely regulate linear valve stroke within 10-150mm.

Featuring modular die-cast aluminum housing with IP66 protection, it supports single and double-acting pneumatic actuators, with multiple explosion-proof certifications for hazardous industrial sites. This positioner delivers ultra-high positioning accuracy, low air consumption, and easy on-site calibration, making it a stable core component for industrial fluid control systems.

Core Features
  • High precision control: Linearity ±1.0% F.S., repeatability ±0.5% F.S., minimal hysteresis for steady valve regulation
  • Multiple temperature options: Standard (-20 to 70°C), low-temp (-40 to 70°C), high-temp (-20 to 120°C) models available
  • Complete explosion-proof certificates: Non-explosion, Ex dmb IIB/IIC T5/T6, Ex ia IIC T5/T6 for dangerous areas
  • IP66 heavy-duty housing: Die-cast aluminum shell resists dust, water jet, and industrial vibration
  • Built-in A/M bypass switch: Convenient auto/manual mode switching for maintenance without system shutdown
  • Detachable air port module: Supports quick conversion between PT and NPT threads on site
  • Low energy loss: Air consumption less than 2.5LPM under 0.14MPa supply pressure
  • Simple zero and span adjustment, compatible with split-range control schemes
  • Optional accessories: Position feedback transmitter, mechanical/proximity limit switches
  • Anti-resonance design: No vibration resonance within 5-200Hz working frequency range
Technical Specifications
Input Signal 4-20mA DC
Internal Resistance 250±15Ω
Supply Pressure Range 0.14-0.7MPa
Linear Valve Stroke 10-150mm
Air Supply Connection P(NPT) 1/4
Gauge Port P(NPT) 1/8
Electrical Conduit Port G(PF)1/2 or NPT1/2
Explosion Proof Grade Non-explosion, Ex dmb IIB/IIC T5/T6, Ex ia IIC T5/T6
Protection Class IP66
Operating Temperature Standard -20 to 70°C, Low-temp -40 to 70°C, High-temp -20 to 120°C
Explosion-proof Ambient Temp -40 to 60°C (T5), -40 to 40°C (T6)
Linearity ±1.0% F.S. (Single Acting), ±2.0% F.S. (Double Acting)
Sensitivity ±0.2% F.S. (Single Acting), ±0.5% F.S. (Double Acting)
Hysteresis ±1.0% F.S.
Repeatability ±0.5% F.S.
Air Consumption ≤2.5LPM (Supply pressure=0.14MPa)
Output Air Flow ≥80LPM (Supply pressure=0.14MPa)
Housing Material Die-cast Aluminum
Applications
  • Oil and natural gas transmission and refining
  • Chemical, petrochemical and fine chemical production
  • Thermal power plants and new energy power stations
  • Urban and industrial wastewater treatment
  • Pharmaceutical, food and beverage processing
  • Papermaking, textile printing and dyeing
  • Metallurgy and mining fluid regulating systems
Frequently Asked Questions
Can TS600L work in explosive gas environments?
Yes. We supply multiple certified explosion-proof versions including explosion-proof Ex dmb and intrinsic safety Ex ia types, complying with international hazardous area standards.
Does it support both single and double-acting actuators?
Yes, the TS600L series includes dedicated single-acting and double-acting models for all linear actuators.
Is on-site thread conversion for air ports available?
The air connection module is detachable, allowing technicians to switch between PT and NPT threads without extra tools.
What after-sales warranty do you offer?
All genuine TISSIN TS600L positioners carry a 2-year factory warranty against manufacturing defects.
Can we add feedback signal or limit switches later?
Optional 4-20mA position transmitters and limit switches can be pre-installed or retrofitted on finished units.
