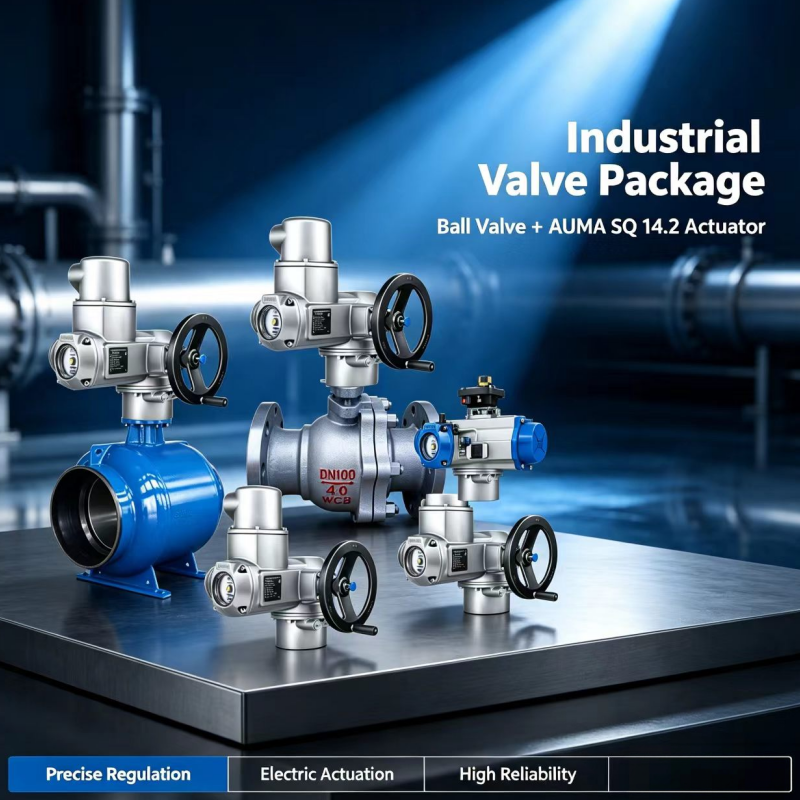

High Quality AUMA SQ 14.2 Part-Turn Actuator 800-2400Nm 3-Phase AC Open-Close Valve Actuator IP68
High Quality AUMA SQ 14.2 Part-Turn Actuator 800-2400Nm 3-Phase AC Open-Close Valve Actuator IP68
High Quality AUMA SQ 14.2 Part-Turn Actuator 800-2400Nm 3-Phase AC Open-Close Valve Actuator IP68
High Quality AUMA SQ 14.2 Part-Turn Actuator 800-2400Nm 3-Phase AC Open-Close Valve Actuator IP68
High Quality AUMA SQ 14.2 Part-Turn Actuator 800-2400Nm 3-Phase AC Open-Close Valve Actuator IP68
High Quality AUMA SQ 14.2 Part-Turn Actuator 800-2400Nm 3-Phase AC Open-Close Valve Actuator IP68
High Quality AUMA SQ 14.2 Part-Turn Actuator 800-2400Nm 3-Phase AC Open-Close Valve Actuator IP68
High Quality AUMA SQ 14.2 Part-Turn Actuator 800-2400Nm 3-Phase AC Open-Close Valve Actuator IP68
Specifications
Delivery Time :
65 days
Humidity :
Up to 100 % relative humidity
Model Number :
SQ 14.2
Price :
4000 dollars
Packaging Details :
Carton + Wooden crate + Protective packaging
Supply Ability :
600 units per year
Overvoltage category :
Category III according to IEC 60364-4-44
Payment Terms :
T/T
Voltages :
110 - 120 V AC, 220 - 240 V AC or 380 - 480 V AC
Swing angle :
Adjustable between 75° and < 105°
Brand Name :
AUMA
Place of Origin :
China
MOQ :
1
Ambient temperature :
-30 °C to +70 °C
Description
Product Overview

The AUMA SQ 14.2 is a robust part-turn actuator from the AUMA NORM series, designed for open-close duty with 3-phase AC motors. It requires external controls (AM or AC series can be mounted later) and is engineered for reliable quarter-turn valve operation in industrial environments.

Key Features
  • Short-time duty S2 – 15 min (classes A & B per EN ISO 22153)
  • Self-locking design
  • Adjustable swing angle (standard 75° to <105°, with wider options)
  • Manual override via handwheel (does not rotate during electrical operation)
  • IP68 enclosure protection
  • Corrosion protection KS (standard) with KX/KX-G options
  • Electromechanical or electronic control unit options
Technical Specifications
Parameter Value
Torque range 800 – 2,400 Nm
Operating times (90°) 24–100 s (50 Hz) / 20–85 s (60 Hz)
Max. starts 60 /h
Valve attachment F14 (std) / F16 (opt)
Valve shaft max. Cylindrical 60 mm, Square/Two-flat 46 mm
Handwheel Ø 200 mm
Weight (approx.) 44 kg (std) / 55 kg (with base & lever)
Ambient temperature –30 °C to +70 °C (std); extended options
Enclosure IP68
Motor 3-phase AC asynchronous squirrel-cage
Applications

Suitable for butterfly, ball and plug valves in water/wastewater, power generation, oil & gas, chemical processing and general industrial plants requiring reliable open-close part-turn actuation.

Frequently Asked Questions
  • Does it need external controls? Yes – AM or AC controls are required and can be retrofitted.
  • Is it self-locking? Yes.
  • Can the handwheel be locked? Yes (option).
  • What is the standard swing angle? Adjustable 75° to <105°.
Contact Us

Phone/WeChat/WhatsApp: +8613916209596

Email: svetama@gbsxj.com

Related Products
  • SQ 05.2, SQ 07.2, SQ 10.2, SQ 12.2 (same series, lower torque ranges); AM/AC actuator controls; SQR versions for modulating duty.
