Specifications
Delivery Time :
6~8 weeks
Application :
Quarter-Turn / Part-Turn Valves
Model Number :
SQ
Corrosion Protection :
KS
Price :
US $3000.00 - 4000.00/ Set
Packaging Details :
Cardboard box/Wooden crate
Ambient Temperature :
-30°C to +70°C
Supply Ability :
800 sets per year
Output Torque :
50–2500 Nm
Enclosure Protection :
IP68
Payment Terms :
T/T
Operating Time for 90° :
4–100 s
Swing Angle :
75–105°
Place of Origin :
Germany
MOQ :
1 set
Product Type :
Part-Turn Electric Actuator
Brand Name :
AUMA
Typical Applications :
Water Treatment, Oil & Gas, Power, Chemical, Industrial Process, Marine
Description

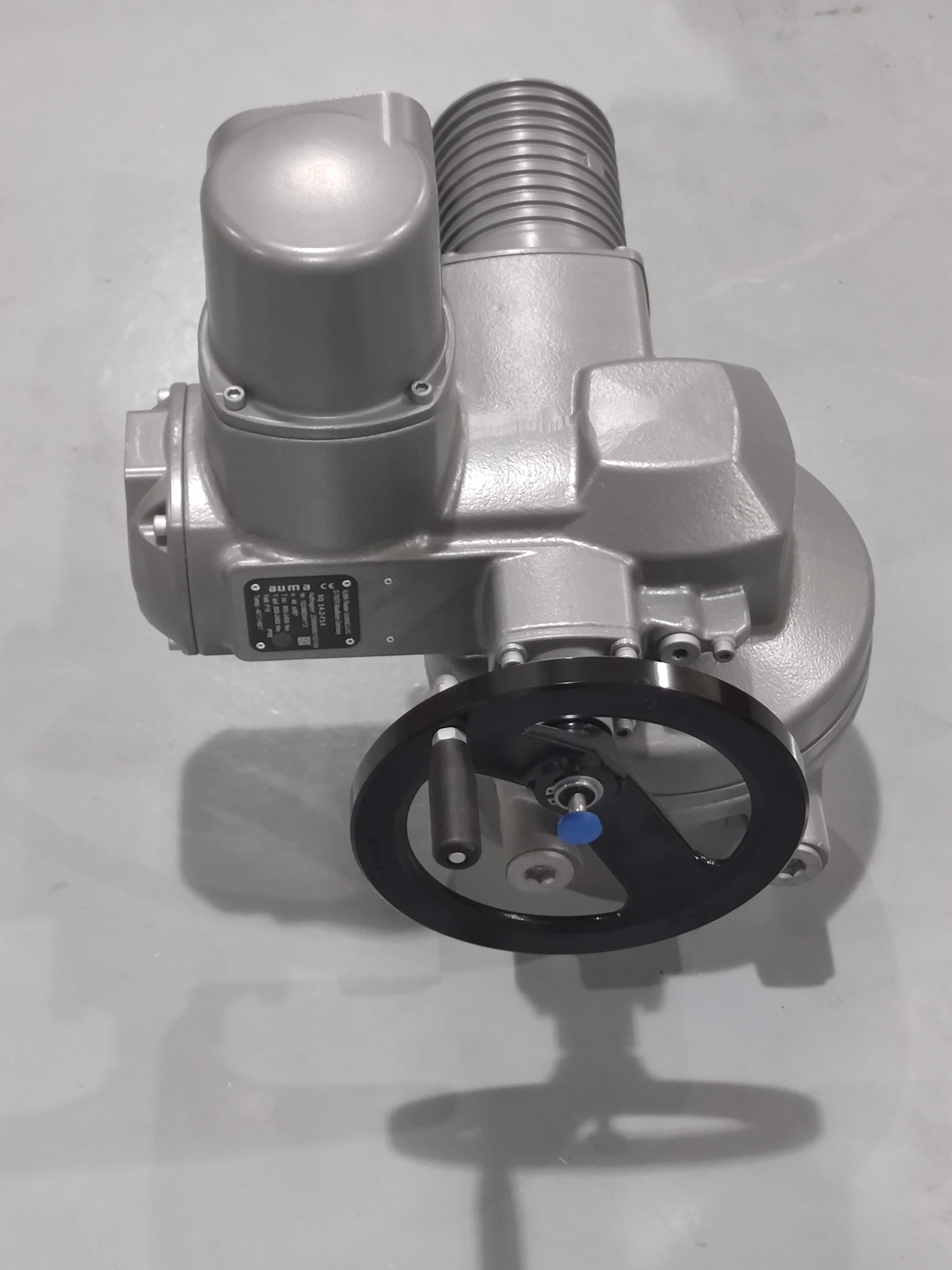

AUMA SQ Electric Part-Turn Actuator
Product Overview

The AUMA SQ series is a range of electric part-turn (quarter-turn) actuators designed for open-close and positioning duty. These robust actuators are commonly used to automate butterfly valves, ball valves and plug valves. They feature reliable limit and torque sensing, a handwheel for manual operation, and high enclosure protection for demanding industrial environments.

Technical Specifications
Parameter Specification
Type Part-turn (quarter-turn) actuator
Torque Range Approx. 50 Nm – 2,400 Nm (depending on size)
Operating Time for 90° Approx. 4 s – 100 s (size dependent)
Duty Type Short-time duty S2 – 15 min (classes A and B)
Enclosure Protection IP68
Ambient Temperature Typically –30 °C to +70 °C (options available)
Motor 3-phase or 1-phase AC
Manual Operation Handwheel
Valve Attachment According to EN ISO 5211
Standard Features Limit switches, torque switches, mechanical position indicator
Application Industry
  • Water and wastewater treatment
  • Power generation
  • Oil & gas and petrochemical
  • Chemical processing
  • General industrial valve automation
Common Problems & Solutions
  • Problem: Need for reliable open-close control → Solution: Proven limit and torque seating
  • Problem: Harsh outdoor or wet environments → Solution: IP68 enclosure protection
  • Problem: Manual intervention required → Solution: Integrated handwheel for emergency operation
Replacement Models
  • Older AUMA SQ generation actuators
  • Other AUMA part-turn models (e.g., with different controls)
Why Buy From Us
  • Genuine AUMA SQ actuators with factory support
  • Competitive pricing
  • Technical assistance for sizing and configuration
  • Reliable spare parts availability
Stock & Delivery Time
  • Standard configurations: 6-8 weeks typical
  • Special options or certifications: 8-12 weeks
RFQ Form

Please provide:

  • Required torque and operating time
  • Valve type and mounting flange
  • Power supply (voltage and frequency)
  • Control requirements
  • Quantity & target delivery date
