Specifications
Delivery Time :
6-8 Week
Repeatability :
<0.5%
Model Number :
SA
Price :
US $2250.00 - 2650.00/ Set
Packaging Details :
Cardboard box/Wooden crate
Supply Ability :
800 sets per year
Torque range :
10 Nm to 32,000 Nm
Input signal :
4-20 mA DC
Payment Terms :
T/T
Version for longer running :
S2 - 30 min duty
Output speeds :
4 to 180 rpm
Place of Origin :
Germany
MOQ :
1 Set
Rotation angle :
min 2.5° max 100°
Brand Name :
AUMA
Description

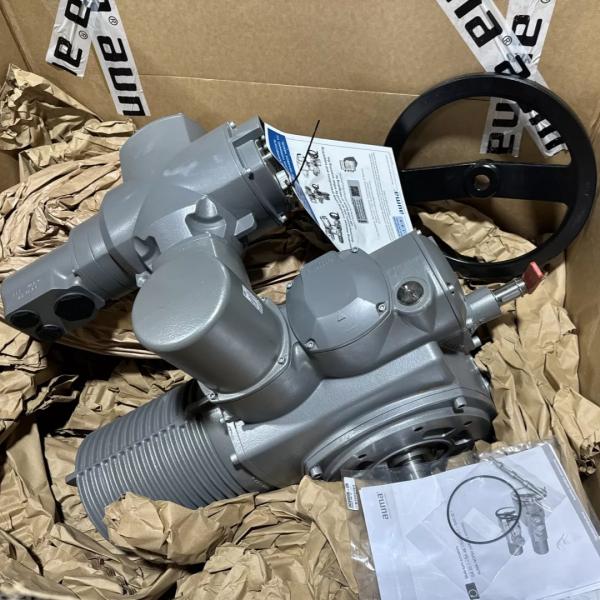

AUMA SA Multi-Turn Electric Actuator
Product Overview

The AUMA SA is a robust multi-turn electric actuator designed for open-close duty on gate valves, globe valves and similar multi-turn applications. It delivers reliable torque transmission, precise limit and torque switching, and is available across a wide torque range to suit different valve sizes and process requirements.

Technical Specifications
Parameter Specification
Type Multi-turn electric actuator (SA series)
Torque Range From approx. 10 Nm (SA 07.2) up to higher values depending on size
Output Speed Typically 4 – 180 rpm (50 Hz)
Duty Type Short-time duty S2 – 15 min (classes A/B)
Enclosure Protection IP68
Ambient Temperature Standard –40 °C to +80 °C
Valve Mounting EN ISO 5210 flanges (F07, F10, F14, F16 etc.)
Motor 3-phase AC, Class F insulation
Manual Operation Handwheel
Switching Limit switches and torque switches
Application Industry
  • Water and wastewater treatment
  • Power generation
  • Oil & gas and petrochemical
  • Chemical processing
  • District heating and industrial plants
Common Problems & Solutions
  • Problem: Harsh outdoor or submerged conditions → Solution: IP68 enclosure protection
  • Problem: Need for precise end-position control → Solution: Adjustable limit and torque switches
  • Problem: Manual override required → Solution: Integrated handwheel for local operation
Replacement Models
  • Older AUMA SA series sizes
  • Equivalent multi-turn actuators from other manufacturers
Why Buy From Us
  • Genuine AUMA SA actuators with factory support
  • Competitive pricing across the SA range
  • Local technical assistance for sizing and commissioning
  • Reliable spare parts availability
Stock & Delivery Time
  • Standard sizes: 6–8 weeks typical
  • Special configurations or large torque models: 8–12 weeks
RFQ Form

Please provide:

  • Required torque and output speed
  • Valve type and mounting flange
  • Power supply voltage and frequency
  • Ambient conditions and any hazardous area needs
  • Quantity & target delivery date
