Industrial Fanuc Material Handling Robot , M410 IB 160 Fanuc Palletizing Robot
Industrial Fanuc Material Handling Robot , M410 IB 160 Fanuc Palletizing Robot
Specifications
Place of Origin :
Shanghai, China (Mainland)
Brand Name :
FANUC
Supply Ability :
100 Set/Sets per Month
Packaging Details :
Regular packing ,100% Factory Sealed.
MOQ :
1 Set/Sets
Price :
Negotiation
Condition :
New
Number of axes :
4
Maximum reach :
3143mm
Max payload :
160 kg
Pose repeatability(ISO 9283) :
±0.05mm
Mount position :
Floor
Weight :
approx. 1940 kg
Protection rating :
IP65
Port :
Shanghai
Description
Product Description

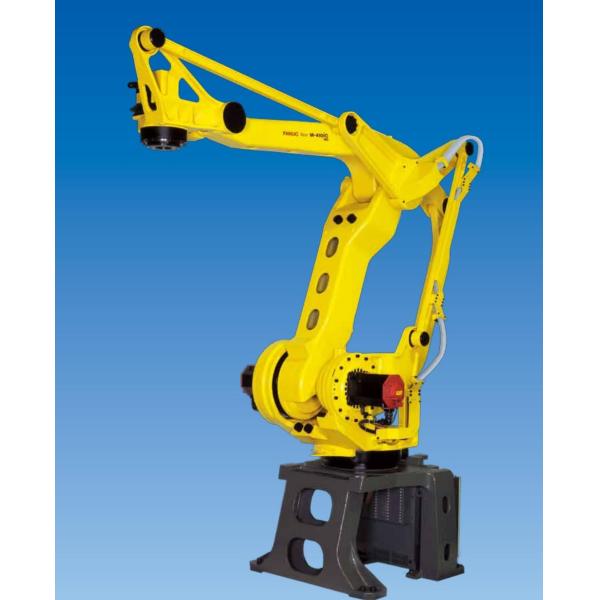

M-410 iB 160 Handling Robot for FANUC

The M-410iB series robot is the latest generation of large-scale logistics intelligent robots from FANUC. It is suitable for precise, high-speed, high-load operation. It has four axes and is electric for integrated mechanical and multi-pattern manufacturing and palletizing system flow control units.

Main Features

1. This is a large-scale logistics intelligent robot that contributes to the robotization of logistics systems.

2. The best model can be selected according to the workpiece to be transported: FANUC Robot M-410iB/160: can handle 160kg

SPECIFICATIONS
Controlled axes
4
Max. payload at wrist
160kg
Motion range (X, Y)
2850mm, 3546mm
Repeatability
±0.05mm
Mass
1940kg
Installation
Floor
Matching controller / Input power capacity
R-30iB/R-30iB Plus (A-, B-cabinet) / 15kVA
Robot Motion Speed
J1
130 °/s (2.27 rad/s)
J2
130 °/s (2.27 rad/s)
J3
135 °/s (2.36 rad/s)
J4
300 °/s (5.24 rad/s)
Robot Motion Range
J1
±360°
J2
±144°
J3
±136°
J4
±540°
Application
Palletizing Robots
Detailed Images
Industrial Fanuc Material Handling Robot , M410 IB 160 Fanuc Palletizing RobotIndustrial Fanuc Material Handling Robot , M410 IB 160 Fanuc Palletizing Robot
Industrial Fanuc Material Handling Robot , M410 IB 160 Fanuc Palletizing Robot
Our Service
Industrial Fanuc Material Handling Robot , M410 IB 160 Fanuc Palletizing Robot
1. Swift delivery
For common parts, we can deliver the goods within 3 days

2. Original products
All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.

3. Quality Assurance

4. Technical Support
Including inspection,repair and maintenance, we can give all kinds of technical support.

5. Quickly responce
Our staffs will keep 24h online and answer your question very quickly.

.

Certifications
Industrial Fanuc Material Handling Robot , M410 IB 160 Fanuc Palletizing Robot
FAQ
Industrial Fanuc Material Handling Robot , M410 IB 160 Fanuc Palletizing Robot
Our Company
Industrial Fanuc Material Handling Robot , M410 IB 160 Fanuc Palletizing RobotIndustrial Fanuc Material Handling Robot , M410 IB 160 Fanuc Palletizing RobotIndustrial Fanuc Material Handling Robot , M410 IB 160 Fanuc Palletizing Robot
Industrial Fanuc Material Handling Robot , M410 IB 160 Fanuc Palletizing Robot
