Automatic High-Accuracy Chocolate Corrugated Foil Wrapping Machine with 200ppm Packing Speed and PLC Control for Decorated Chocolates
Automatic High-Accuracy Chocolate Corrugated Foil Wrapping Machine with 200ppm Packing Speed and PLC Control for Decorated Chocolates
Automatic High-Accuracy Chocolate Corrugated Foil Wrapping Machine with 200ppm Packing Speed and PLC Control for Decorated Chocolates
Automatic High-Accuracy Chocolate Corrugated Foil Wrapping Machine with 200ppm Packing Speed and PLC Control for Decorated Chocolates
Automatic High-Accuracy Chocolate Corrugated Foil Wrapping Machine with 200ppm Packing Speed and PLC Control for Decorated Chocolates
Automatic High-Accuracy Chocolate Corrugated Foil Wrapping Machine with 200ppm Packing Speed and PLC Control for Decorated Chocolates
Automatic High-Accuracy Chocolate Corrugated Foil Wrapping Machine with 200ppm Packing Speed and PLC Control for Decorated Chocolates
Automatic High-Accuracy Chocolate Corrugated Foil Wrapping Machine with 200ppm Packing Speed and PLC Control for Decorated Chocolates
Specifications
Place of Origin :
CHINA
Brand Name :
SHENGLI
MOQ :
One Set
Price :
USD51000.0-USD60000.0
Packaging Details :
Export wooden cases
Supply Ability :
20 Sets/Month
Certification :
CE
Delivery Time :
45-60 Days
Payment Terms :
T/T,L/C
Product name :
Automatic High-Accuracy Chocolate Corrugated Foil Wrapping Machine with 200ppm Packing Speed and PLC Control for Decorated Chocolates
packaging type :
Foil
automatic grade :
Automatic
driven type :
Mechanical
warranty :
1 Year
Keyword :
corrugated foil pack
Description
Automatic High-Accuracy Chocolate Corrugated Foil Wrapping Machine with 200-300ppm Packing Speed and PLC Control for Decorated Chocolates

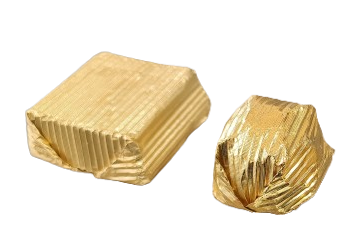

The SL-SBZB450W series packing machine features a special corrugated aluminum foil pattern with clear grain definition and novel styling, designed specifically for decorated and gilded diamond shape chocolates.

Automatic High-Accuracy Chocolate Corrugated Foil Wrapping Machine with 200ppm Packing Speed and PLC Control for Decorated Chocolates
System Configuration

The complete system consists of one SL-SBZB450W Packing Machine and one SL-SBZL500 Auto Feeding Machine.

Technical Specifications
Performance Parameters
Parameter Value
Packing Speed 200ppm
Chocolate Size (Diameter) L:10-80mm W:4-45mm H:4-35mm
Total Power 5 kW
Power Supply 380V 50HZ 3P
Air Supply 0.6 MPa
Wrapper Specifications
Material Tinfoil, Aluminium Foil
Requirements Wrapper must be sent to factory 30 days with order
Air System Requirements
Air Pressure 0.6 MPa
Air Displacement 0.6 m³/min
Sample Requirements
Chocolate Sample/Mould Must be sent to factory 30 days with order
Main Components
SBJS260 Packing Machine
  • Servo motor for feeding paper - Panasonic (Japan)
  • Touch screen - Weinview (Taiwan)/Omron (Japan)
  • Precision Potentiometer - Omron (Japan)
  • Rotary Encoder - Omron (Japan)
  • Material sensor - Leuze (Germany)
  • Paper Feeder Sensor - Leuze (Germany)
  • Color Mark Sensor - Leuze (Germany)
Electric Cabinet
  • PLC - Chengdu (SL)
  • Frequency Converter - Delta (Taiwan)
  • Circuit Breaker - Schneider (France)
  • Solid Relay - Omron (Japan)
  • Switch Power Supply - Omron (Japan)
SL-SBZL500 Auto Feeding Machine
  • Contact Area - PU
  • Frame - Stainless Steel
  • Motor - GPG
  • Motor Control - Delta (Taiwan)
Package and Shipping Details
Component Gross Weight Dimensions (L×W×H)
Packing Machine 1800 kg 2970×1520×2200 mm
Feeding Conveyor 680 kg 2370×970×1250 mm
Total: 2480 kg, 14 m³
Automatic High-Accuracy Chocolate Corrugated Foil Wrapping Machine with 200ppm Packing Speed and PLC Control for Decorated Chocolates
Installation and Service Terms

Facility installation and debugging will be completed at BUYER's factory by an assigned engineer from SELLER's factory. BUYER is responsible for all expenses incurred once the engineer departs from China, including transportation, meals, accommodations, and additional costs during installation and debugging.

Automatic High-Accuracy Chocolate Corrugated Foil Wrapping Machine with 200ppm Packing Speed and PLC Control for Decorated Chocolates
