200ppm-300ppm Chocolate Wrapping Machine Chocolate Envelope Wrapping Machine
200ppm-300ppm Chocolate Wrapping Machine Chocolate Envelope Wrapping Machine
200ppm-300ppm Chocolate Wrapping Machine Chocolate Envelope Wrapping Machine
200ppm-300ppm Chocolate Wrapping Machine Chocolate Envelope Wrapping Machine
200ppm-300ppm Chocolate Wrapping Machine Chocolate Envelope Wrapping Machine
200ppm-300ppm Chocolate Wrapping Machine Chocolate Envelope Wrapping Machine
Specifications
Place of Origin :
CHINA
Brand Name :
SHENGLI
MOQ :
One Set
Price :
USD55000.0-USD210000.0
Packaging Details :
Export wooden cases
Supply Ability :
20 Sets/Month
Certification :
CE
Delivery Time :
45-60 Days
Payment Terms :
T/T,L/C
key selling points :
High-Accuracy
Video outgoing-inspection :
Provided
core components :
Motor, PLC, Gear, Bearing, Gearbox
Filling Material :
Solid
Feeding System :
Auto Feeding
After Warranty Service :
Spare PartsVideo Technical SupportOnline Support
Type :
Multi-Function Packaging Machine
Description
High-Speed 200-300ppm Automatic Chocolate Wrapping Machine with PLC & Touch Screen Control for High-Accuracy Packaging

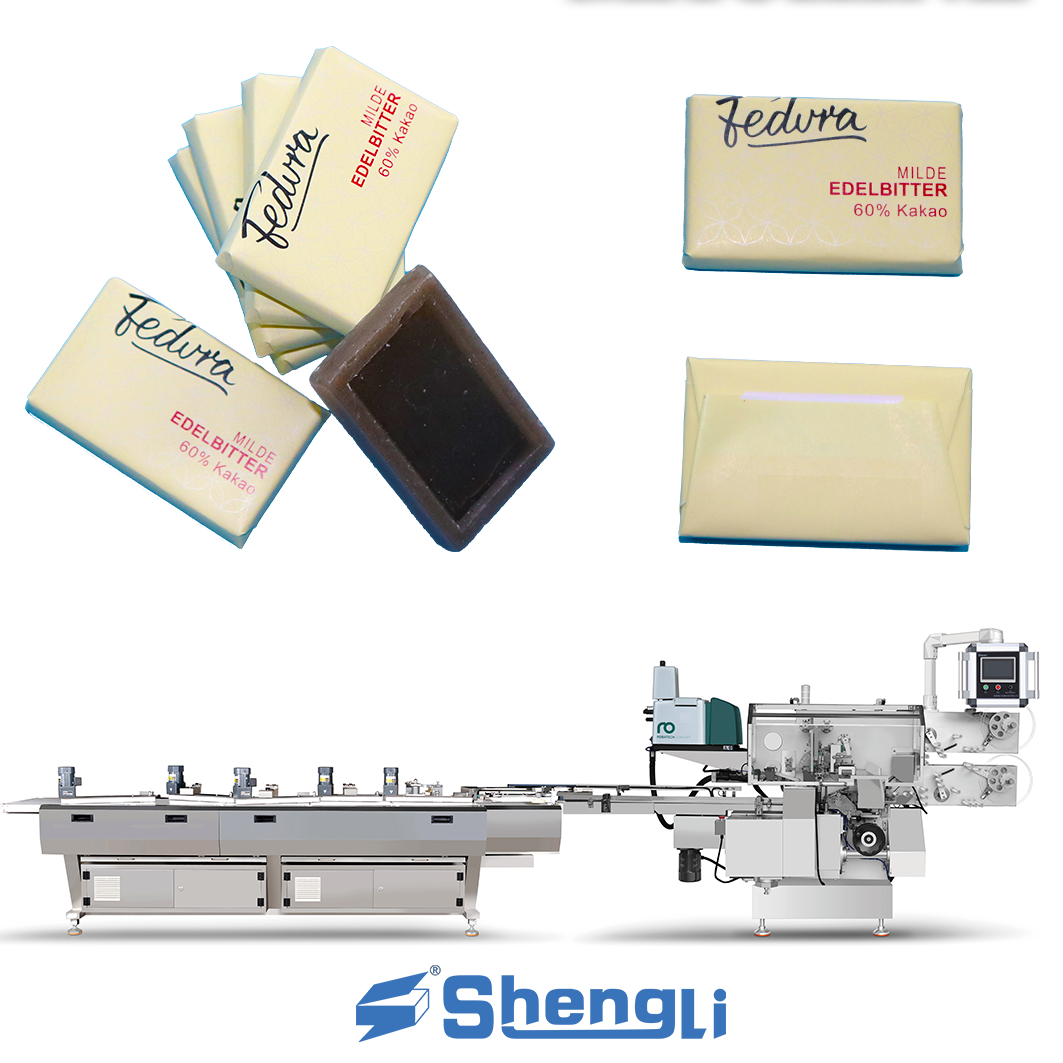

This complete system consists of one unit SL-SBZB450D Foil Brushing Packing Machine and one set Auto Feeding Machine, designed for high-speed automatic packaging of chocolates and other delicate food products.
200ppm-300ppm Chocolate Wrapping Machine Chocolate Envelope Wrapping Machine 200ppm-300ppm Chocolate Wrapping Machine Chocolate Envelope Wrapping Machine 200ppm-300ppm Chocolate Wrapping Machine Chocolate Envelope Wrapping Machine
Machine Features
  • PLC programming with HMI touch screen for easy operation and setup
  • Dual language display on touch screen interface
  • Fully automatic program-controlled operation with servo motors
  • Flexible color sensor settings with paper feeding self-tracking and correction
  • Self-protection system for abnormal product detection
  • Online product feeding status monitoring to minimize paper consumption
  • Removable adjustable truckle for mobility and height adjustment
  • Reliable power supply system with premium brand electrical components
Technical Specifications
Packing Machine Specifications
Packing Speed 200-260 ppm
Chocolate Size Range Cuboid L:10-80mm W:4-45mm H:4-35mm
Total Power 5 kW
Power Supply 380V 50HZ 3P
Air Supply 0.6 Mpa
Main Components
  • Servo motor for feeding paper - Japanese (Panasonic)
  • Touch screen - Taiwan (Weinview)
  • Frequency converter - Taiwan (Delta)
  • Candy sensor - Germany (LEUZE)
  • Color code sensor - Germany (LEUZE)
  • Over size candy proximity switch - Germany (LEUZE)
  • Origin proximity switch - Germany (LEUZE)
  • Encoder - Japanese (Omron)
  • Solid relay - Japanese (Omron)
  • Switch power supply - Japanese (Omron)
  • Precision potentiometer - Japanese (Omron)
  • PLC - Chengdu (SL)
Arranging and Feeding Machine
Total Power 1 KW
Compressed Air 0.6 Mpa
Main Component Frequency Converter - Taiwan (Delta)
Packaging and Shipping Details
Standard export wooden case packaging according to international trade standards.
Item Dimensions Volume Gross Weight
Packing Machine SL-SBZB450D 2970×1520×2200mm 10 CBM 1800 KG
Auto Feeding Machine 2870×960×1220mm & 600×860×1220mm 4 CBM 680 KG
Total 14 CBM 2480 KG
Warranty and Service Terms
  • One-year guarantee under standard operation conditions
  • Acceptance inspection according to enterprise standards at supplier factory
  • One-year spare parts guarantee (excluding loss due to incorrect operation)
  • On-site installation and debugging by assigned engineer at buyer's factory
