60-100pcs/Min Chocolate Bar Packing Machine Chocolate Foil Wrapping Machine
60-100pcs/Min Chocolate Bar Packing Machine Chocolate Foil Wrapping Machine
60-100pcs/Min Chocolate Bar Packing Machine Chocolate Foil Wrapping Machine
60-100pcs/Min Chocolate Bar Packing Machine Chocolate Foil Wrapping Machine
60-100pcs/Min Chocolate Bar Packing Machine Chocolate Foil Wrapping Machine
60-100pcs/Min Chocolate Bar Packing Machine Chocolate Foil Wrapping Machine
60-100pcs/Min Chocolate Bar Packing Machine Chocolate Foil Wrapping Machine
60-100pcs/Min Chocolate Bar Packing Machine Chocolate Foil Wrapping Machine
60-100pcs/Min Chocolate Bar Packing Machine Chocolate Foil Wrapping Machine
60-100pcs/Min Chocolate Bar Packing Machine Chocolate Foil Wrapping Machine
60-100pcs/Min Chocolate Bar Packing Machine Chocolate Foil Wrapping Machine
60-100pcs/Min Chocolate Bar Packing Machine Chocolate Foil Wrapping Machine
Specifications
Place of Origin :
CHINA
Brand Name :
SHENGLI
Certification :
CE
MOQ :
One Set
Price :
USD55000.0-USD210000.0
Packaging Details :
Export wooden cases
Supply Ability :
20 Sets/Month
Delivery Time :
45-60 Days
Payment Terms :
T/T,L/C
application :
Food, chocolate
packaging type :
Film, Foil
packaging material :
Paper
automatic grade :
Semi-Automatic
driven type :
Electric
Voltage :
220V 50/60Hz
dimension(l*w*h) :
2670*1520*2350mm
After-sales Service Provided :
Online support, Video Technical Support, Free Spare Parts, Field installation, commissioning and training, Field Maintenance and Repair Service
warranty :
1 Year
key selling points :
High-Accuracy
machinery test report :
Provided
video outgoing-inspection :
Provided
core components :
PLC, Pressure Vessel, Gear, Motor, Engine, Bearing
Chocolate Size :
L:80-183 W:40-82 H:10-40 (mm)
Packing Speed :
60-100pcs/min (According to the size)
Total Power :
15.0KW
Power Supply :
380V 50HZ 3PH (Can be customized)
Air Supply :
Pressure: 0.6MPa Flow: 0.6 M³/Min
Wrapper Material :
Foil,Wax paper,BOPP.etc.(Must be easy to fold)
Wrapper Width :
Inner Max.225mm, Outer Max.250mm
Wrapper Roller Size :
Inner Dia:76-90mm,Outer Dia≤300mm
Melting Gum Device :
Robatech(Switzerland)
Gross Weight :
3000KGS
Type :
Wrapping Machine
Applicable Industries :
Manufacturing Plant
After Warranty Service :
Video Technical Support, Online support, Spare parts, Field Maintenance and Repair Service
Local Service Location :
None
Showroom Location :
None
Condition :
New
Warranty of core components :
1 Year
Marketing Type :
New Product 2021
Weight :
3000 KG
Description
Chocolate Bar Packing Machine with 60-80pics/min Packing Speed for Double Layer Wrapping and Aluminum Foil Heat-sealing
Aluminum Foil Heat-sealing and Paper Glueing Double Layer Wrapping
Product Overview

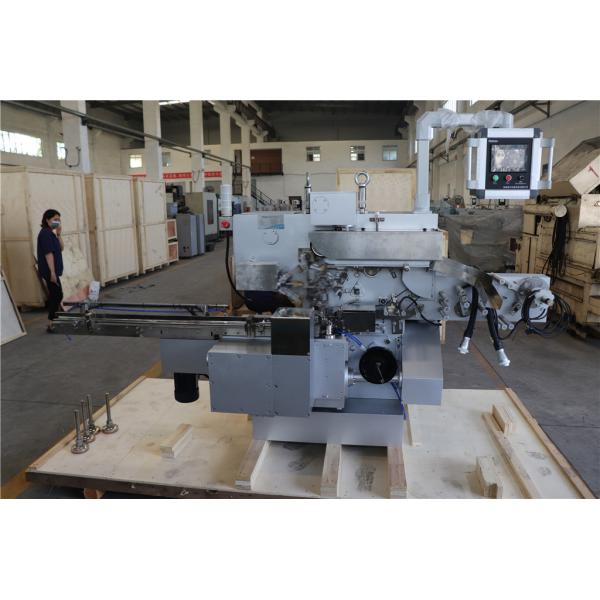

SL-SBZB100D Chocolate Tablet/Bar Fold Wrapping Machine
This series of packaging machines is specially designed for large size chocolate tablets and is compatible with multiple size chocolate bar packing. The machine achieves both heat sealing with aluminium foil on the inside and sealing with spray glue on the outside. It can be interfaced with a chocolate forming machine to form a complete production and packaging line, saving costs and increasing efficiency for your factory.

Product Images
60-100pcs/Min Chocolate Bar Packing Machine Chocolate Foil Wrapping Machine
60-100pcs/Min Chocolate Bar Packing Machine Chocolate Foil Wrapping Machine
60-100pcs/Min Chocolate Bar Packing Machine Chocolate Foil Wrapping Machine

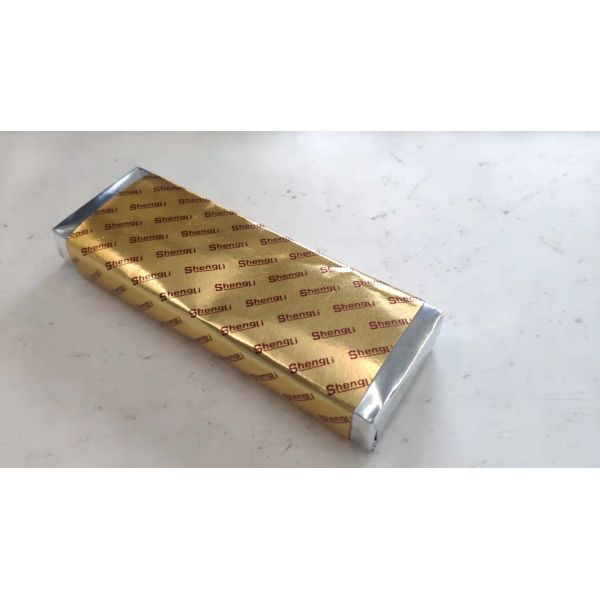

Sample
60-100pcs/Min Chocolate Bar Packing Machine Chocolate Foil Wrapping Machine

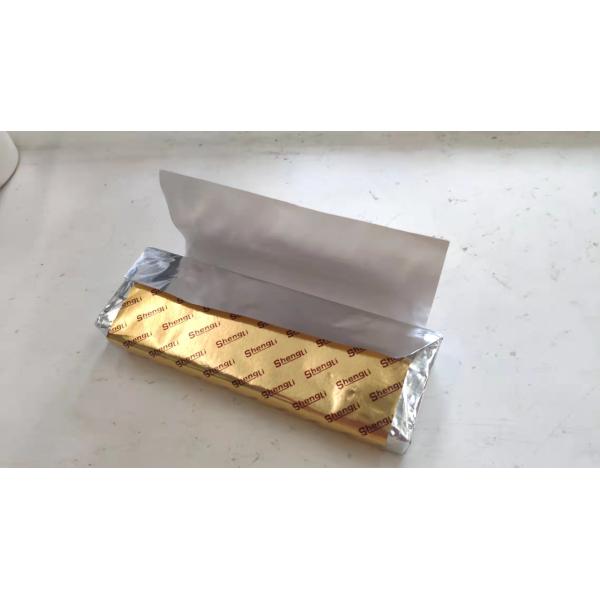

Sample
Product Configuration
60-100pcs/Min Chocolate Bar Packing Machine Chocolate Foil Wrapping Machine

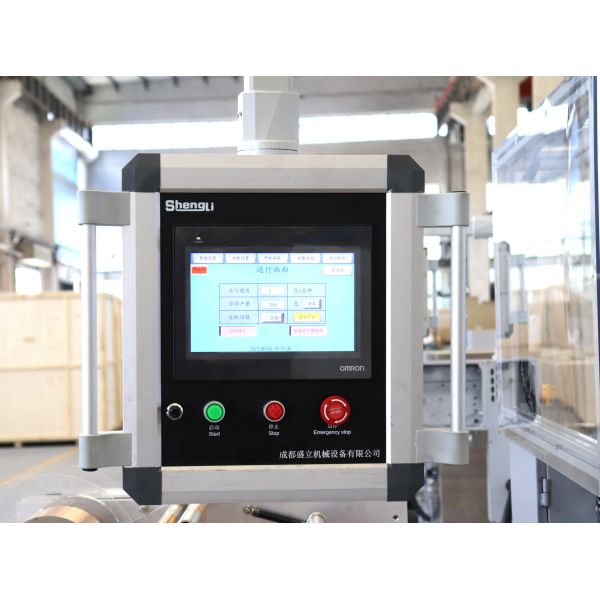

Touch Screen
60-100pcs/Min Chocolate Bar Packing Machine Chocolate Foil Wrapping Machine
Folder
60-100pcs/Min Chocolate Bar Packing Machine Chocolate Foil Wrapping Machine
Details
Global Sales and Service Network
60-100pcs/Min Chocolate Bar Packing Machine Chocolate Foil Wrapping Machine

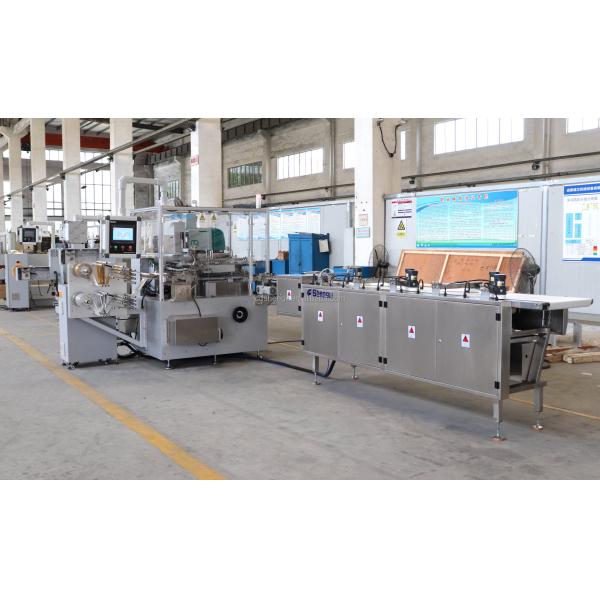

Successful Project
60-100pcs/Min Chocolate Bar Packing Machine Chocolate Foil Wrapping Machine
Project in Thailand
60-100pcs/Min Chocolate Bar Packing Machine Chocolate Foil Wrapping Machine
Project in India
60-100pcs/Min Chocolate Bar Packing Machine Chocolate Foil Wrapping Machine
Project in Russia
Similar Products
60-100pcs/Min Chocolate Bar Packing Machine Chocolate Foil Wrapping Machine
60-100pcs/Min Chocolate Bar Packing Machine Chocolate Foil Wrapping Machine
60-100pcs/Min Chocolate Bar Packing Machine Chocolate Foil Wrapping Machine
Frequently Asked Questions
Q1: Is engineer available to serve overseas?
Yes, but the travel fee is responsible by you. In order to save your cost, we will send you a video of full details machine installation and assist you till the end.
Q2: How can we make sure about the machine quality after packing the order?
Before delivery, we will send you the pictures and videos for you to check the machine quality. And also you can arrange for quality checking by yourself or by your contacts in China. Testing & detecting the machine before shipping.
