Specifications
Place of Origin :
CHINA
Brand Name :
SHENGLI
MOQ :
One Set
Price :
USD51000.0-USD60000.0
Packaging Details :
Export wooden cases
Supply Ability :
20 Sets/Month
Certification :
CE
Delivery Time :
45-60 Days
Payment Terms :
T/T,L/C
Product name :
High-Accuracy Automatic Chocolate Wrapping Machine with 180-260pics/min Packing Speed and PLC+Servo+Touch Screen Control
Machine type :
Automatic Foil Packaging Machine
Packing speed :
180-260pics/min
Product size :
Dia:15-30 H:10-48.5 (mm)
Description
High-Accuracy Automatic Chocolate Wrapping Machine with 180-260pics/min Packing Speed and PLC+Servo+Touch Screen Control
Our Packaging Expertise

At SHENGLI, we start each project by fully immersing ourselves in your unique requirements. With over two decades of expertise in packaging machinery, we blend time-tested techniques with innovative technologies to deliver optimal, future-ready solutions.

Our expertise is strategically balanced: 30% of our work involves designing and building fully custom packaging machines, while the rest is dedicated to enhancing and fine-tuning existing equipment. Every phase is supported by our complete in-house capabilities—from mechanical engineering, electrical systems, and software development to precision parts manufacturing and electronic assembly.

Share the details of your chocolate or candy products along with your packaging vision. We will develop tailored, practical concepts to bring your ideas to life and optimize your entire confectionery packaging process.

Machine Overview

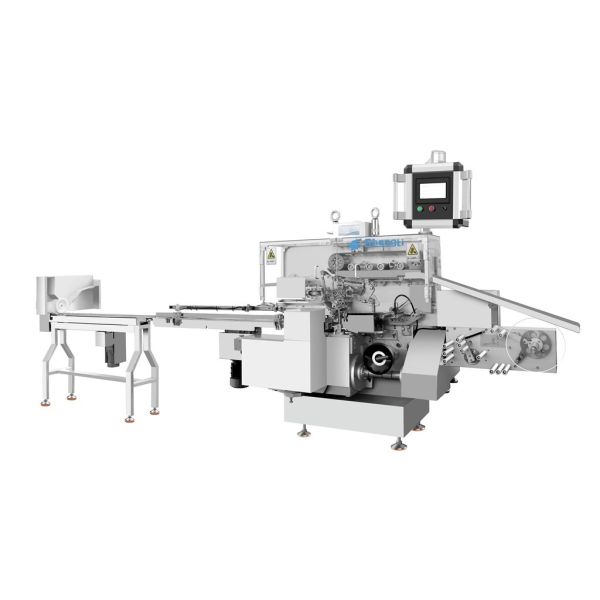

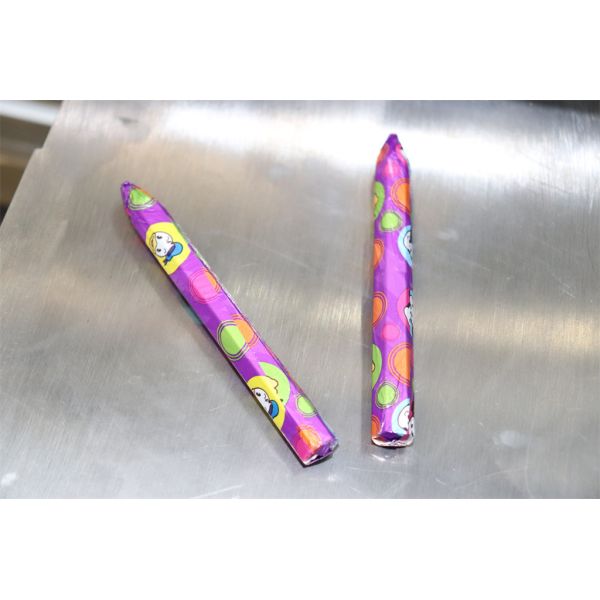

The SL-SBQB260 series automatic wrapping machines are engineered for high-speed, precise packaging of pencil- and stick-shaped chocolate, biscuit, and candy products. Designed for adaptability, these machines support a wide range of product sizes, shapes, and wrapping materials. Optional enhancements such as integrated label wrapping and double-layer wrapping further expand packaging versatility, enabling tailored solutions for diverse production needs.

Pencil Chocolate Wrapper Machine 180ppm Candy Wrapping Machine
Technical Specifications
Parameter Specification
Packing Speed 180-260 pieces/minute
Product Size Range Diameter: 15-30mm, Height: 10-48.5mm
Wrapper Materials Foil, PET, Film, and other compatible materials
Packaging Qualification Rate ≥98%
Mainframe Power 3.5 KW
Compressed Air Requirement 0.6 MPa
Pencil Chocolate Wrapper Machine 180ppm Candy Wrapping Machine Pencil Chocolate Wrapper Machine 180ppm Candy Wrapping Machine
Advanced Features
  • Integrated PLC, Servo Motor, and HMI touch screen for intelligent operation and ease of use
  • High-precision electrical components (sensors, servo motors) combined with high-strength mechanical transmission system for smooth, high-speed production
  • Self-protection mechanism for abnormal products with material signal-based paper feed
Premium Components
Photoelectric Sensor: Leuze (Germany) brand detects materials and provides feedback to PLC control system with reliable self-protection against abnormal products.

Photoelectric Sensor: Leuze (Germany) brand detects materials and provides feedback to PLC control system with reliable self-protection against abnormal products.

Color Mark Sensor: Leuze (Germany) brand detects color marks on wrapping paper for precise paper feeding accuracy.

Color Mark Sensor: Leuze (Germany) brand detects color marks on wrapping paper for precise paper feeding accuracy.

Pencil Chocolate Wrapper Machine 180ppm Candy Wrapping Machine Pencil Chocolate Wrapper Machine 180ppm Candy Wrapping Machine
Control & Mechanical Systems
PLC Controller: Automatic control system with high integration and intelligence, featuring multiple protection functions to ensure reliable production.

PLC Controller: Automatic control system with high integration and intelligence, featuring multiple protection functions to ensure reliable production.

Mechanical System: Precision-engineered with high strength and accuracy to guarantee high-speed, smooth production operations.

Mechanical System: Precision-engineered with high strength and accuracy to guarantee high-speed, smooth production operations.

Pencil Chocolate Wrapper Machine 180ppm Candy Wrapping Machine
Packaging & Shipping
  1. Standard packaging: Wooden case meeting international trade requirements
  2. Packaging supply and recycling: Provided according to customer requirements with recycling options available
Pencil Chocolate Wrapper Machine 180ppm Candy Wrapping Machine Pencil Chocolate Wrapper Machine 180ppm Candy Wrapping Machine
After-Sales Service
  1. Equipment installation by our engineers at your factory with comprehensive operational training
  2. Continuous customer feedback collection for product improvement and optimization
  3. 12-month free warranty from the date of machine receipt
Company Information

Pencil Chocolate Wrapper Machine 180ppm Candy Wrapping Machine Pencil Chocolate Wrapper Machine 180ppm Candy Wrapping Machine Pencil Chocolate Wrapper Machine 180ppm Candy Wrapping Machine

Frequently Asked Questions
Q1: How to find a packing machine suitable for my product?

Share your product details and packaging requirements including:

  • Product type and dimensions
  • Desired packaging format
  • Specific machine requirements
Q2: Are you a real factory/manufacturer?

Yes, we are a factory with over 20 years of packaging machinery experience.

Q3: Is engineer available to serve overseas?

Yes, we can send engineers to your factory (expenses covered by buyer). We also provide comprehensive video and online support to minimize installation costs.

Q4: How can we ensure machine quality after placing the order?

We conduct thorough running-in tests before delivery to verify all components function properly. Testing videos are provided for your approval. All parameters are pre-set, and you may arrange quality inspection through your agent in China.
