19mm diffused silicon differential pressure sensor mat
19mm diffused silicon differential pressure sensor mat
Specifications
Brand Name :
Shelok
Model Number :
SLK-YC19D
Certification :
CE
Place of Origin :
China
MOQ :
1piece
Price :
USD12-18
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal
Supply Ability :
100+piece+per month
Delivery Time :
5-10working days
Packaging Details :
Standard export carton package or can be customized
Pressure Range :
0~100MPa
Repeatability and Hysteresis :
0.02-0.05%F.S
Span Output :
50±10mV(≤20KPa),100±10mV(≥35 KPa)
Description

Description of 19mm diffused silicon differential pressure sensor mat

YC19D is piezoresistive silicon differential pressure sensor, the main element is a diffused silicon with high stability. It utilizes silicon oil to transfer pressure from 316L stainless steel diaphragm to sensing element. It has high stability, good reliability ,high static pressure. It is widely used in field which measure differential pressure.

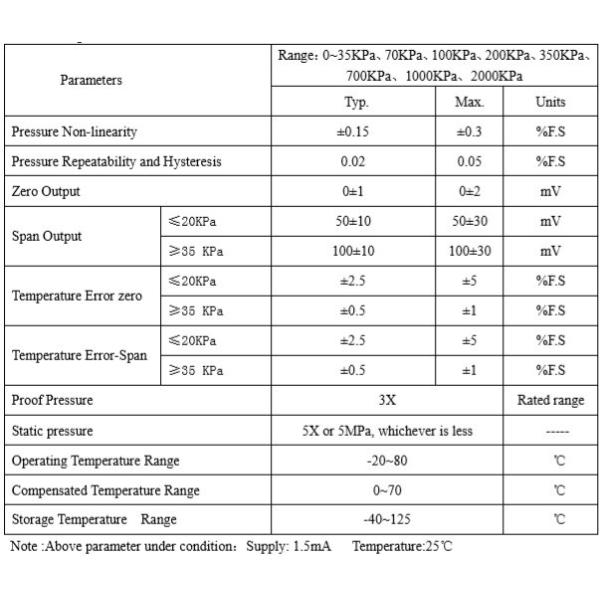

Specification of 19mm diffused silicon differential pressure sensor mat

19mm diffused silicon differential pressure sensor mat

Electrical Data
Supply :1.5mADC
Input impedance:3KΩ~6KΩ
Output impedance:2.5KΩ~6KΩ
Insulation resistance:≥100MΩ/50VDC
Insulation voltage:500VAC between the housing and electrical connection will not cause damage
Medium compatible: liquid, gas compatible with 316L stainless steel

Detailed Images of 19mm diffused silicon differential pressure sensor mat

Applications of 19mm diffused silicon differential pressure sensor mat

Measurement pressure of gas and liquid
Environmental control
Process control
Hydraulic and pneumatic equipment
Chemical products and chemical industry

Features of 19mm diffused silicon differential pressure sensor mat

Wide measurement range: 0~20KPa~2Mpa
Full 316L.S.S
316L stainless steel diaphragm
High static pressure
High accuracy and stability
