Differential LCD 4~20mA Digital Pressure Transmitters Pressure Sensors
Differential LCD 4~20mA Digital Pressure Transmitters Pressure Sensors
Differential LCD 4~20mA Digital Pressure Transmitters Pressure Sensors
Differential LCD 4~20mA Digital Pressure Transmitters Pressure Sensors
Differential LCD 4~20mA Digital Pressure Transmitters Pressure Sensors
Differential LCD 4~20mA Digital Pressure Transmitters Pressure Sensors
Differential LCD 4~20mA Digital Pressure Transmitters Pressure Sensors
Differential LCD 4~20mA Digital Pressure Transmitters Pressure Sensors
Differential LCD 4~20mA Digital Pressure Transmitters Pressure Sensors
Differential LCD 4~20mA Digital Pressure Transmitters Pressure Sensors
Differential LCD 4~20mA Digital Pressure Transmitters Pressure Sensors
Differential LCD 4~20mA Digital Pressure Transmitters Pressure Sensors
Specifications
Brand Name :
Shelok
Certification :
CE
Place of Origin :
Shaanxi，China
MOQ :
1 piece
Price :
USD+40~120+piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100+pieces+per month
Delivery Time :
3-15 work days
Packaging Details :
Standard export carton packing or can be customized
Pressure range :
0~20Kpa~35Kpa~2Mpa
Output :
4~20mA,0~10mA,1~5VDC,0~5VDC
Accuracy :
±0.25% (Typical) ±0.5% (Max.)
Power supply :
12~30VDC
Repeatability :
±0.1%
Medium temperature :
-60 - 200℃
Description

Product Description Differential LCD Digital Pressure Transmitters, Pressure Sensors

smart differential digital pressure transmitter is diffused silicon differential transmitters are consist of both isolation membrane differential pressure sensor and integrated circuit, Has characteristics of high precision, good stability, high reliability and good sensibility. Differential pressure transmitter also can build high-performance microprocessor(MCU)which can correct nonlinearity and compensate temperature drift. This digital differential pressure transmitter achieve accurate data transfer, local equipment diagnoses and long-distance bidirectional communication. This smart pressure transmitter with high quality and very low price, and high stability. The transmitter can used in all kinds industry.

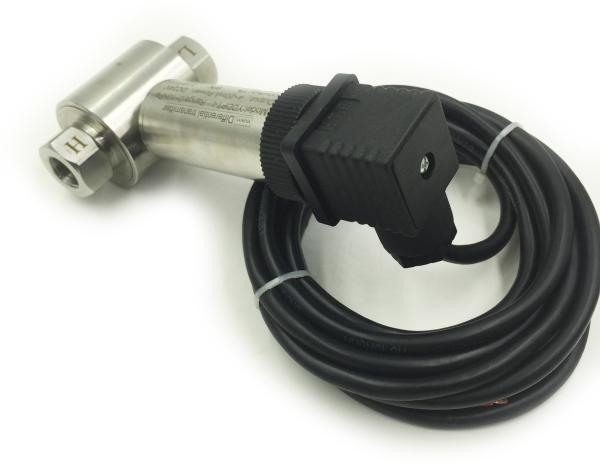

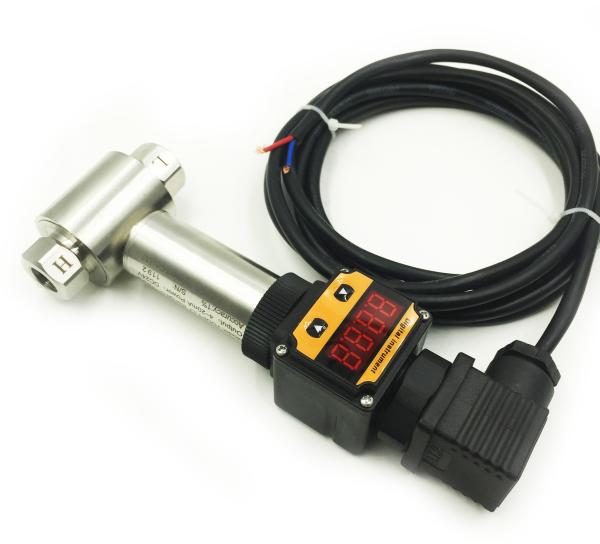

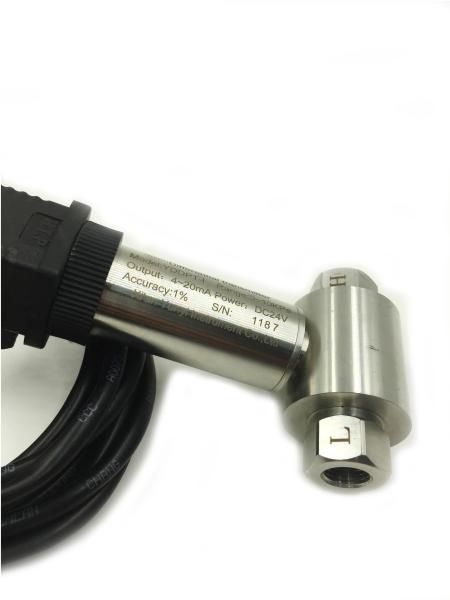

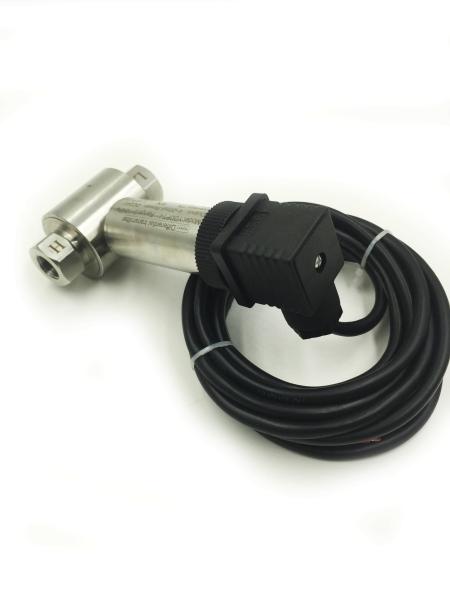

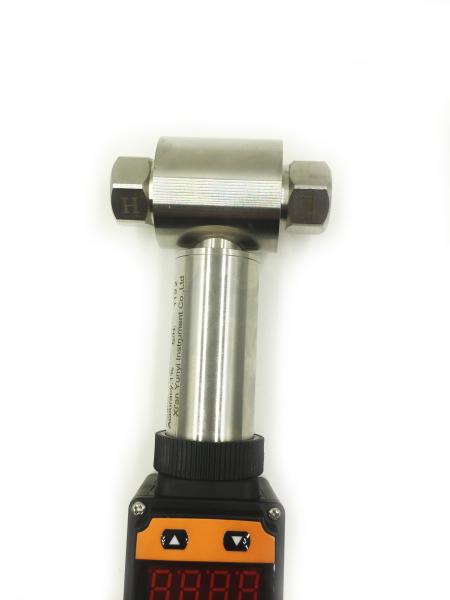

Detailed Images Differential LCD Digital Pressure Transmitters, Pressure Sensors

Specification Differential LCD Digital Pressure Transmitters, Pressure Sensors

Differential LCD Digital Pressure Transmitters, Pressure Sensors
Measuring Range 0 ~ 10KPa…2MPa
Full Scale Range 10~50KPa, 50~100KPa, 0.1~0.2MPa, 0.2~0.5MPa, 0.5~1MPa, 1~2MPa
Positive Overload Pressure 250KPa, 300KPa, 0.4MPa, 1.0MPa, 2MPa, 4MPa
Negative Overload Pressure 100KPa, 200KPa, 0.3MPa, 0.5MPa, 0.7MPa, 1MPa
Maximum Static Pressure ≤20Mpa
Overall Accuracy ±0.1%FS, ±0.25%FS, ±0.4%FS
Zero Point Temperature Drifting ±0.02%FS/℃ (typical) ± 0.05%FS/℃ (maximum)
Sensitivity Temperature Drifting ±0.02%FS/℃ (typical) ±0.05%FS/℃ (maximum)
Influence Static Pressure ±0.05%FS/100KPa
Operating Temperature -10℃ ~ 80℃
Compensating Temperature -10℃ ~ 50℃
Long-term Stability ±0.3%FS/year (≤200KPa); ±0.1%FS/year (≥200KPa)
Power Supply 12 ~ 36V DC (24V DC generally)
Signal Output 2-wire 4~20mA; s-wire 0 / 1-5V DC
Response Time ≤2ms
Insulation Resistance 100MΩ, 500V DC
Influence Vibration Change ≤1% after vibration of 3gRMS30 ~ 2000Hz
Impact Change ≤1% after impact of 100g for 10ms
Service Life 1×108 pressurized cycle
Medium The gas or liquid compatible with material of structure
Explosion–proof Marking Ex ia II CT5 (intrinsically safe explosion–proof
Weight Approx 0.35KG
Thermal Lagging ± 0.1%FS (typical)
Enclosure Protective Degree Plug Type (IP 65) Cable Type (IP 67)
