China Hndheld chemical sulfuric acid ultrasonic water DN15~6000 flow meter
China Hndheld chemical sulfuric acid ultrasonic water DN15~6000 flow meter
China Hndheld chemical sulfuric acid ultrasonic water DN15~6000 flow meter
China Hndheld chemical sulfuric acid ultrasonic water DN15~6000 flow meter
China Hndheld chemical sulfuric acid ultrasonic water DN15~6000 flow meter
China Hndheld chemical sulfuric acid ultrasonic water DN15~6000 flow meter
China Hndheld chemical sulfuric acid ultrasonic water DN15~6000 flow meter
China Hndheld chemical sulfuric acid ultrasonic water DN15~6000 flow meter
China Hndheld chemical sulfuric acid ultrasonic water DN15~6000 flow meter
China Hndheld chemical sulfuric acid ultrasonic water DN15~6000 flow meter
Specifications
Brand Name :
Shelok
Model Number :
SLK-TUF2000
Place of Origin :
China
MOQ :
1 piece
Price :
USD410~600 per piece
Payment Terms :
D/A, L/C, D/P, T/T, Western Union
Supply Ability :
100 pieces per month
Delivery Time :
7 work days
Packaging Details :
Standard export carton packing or can customized
Accuracy :
Better than 1%
Output :
RS-232/OCT output
Repeatability :
0.2%
S type sensor :
15~100mm
M type sensor :
50~700mm
L type sensor :
300~6000mm
Flow rate :
0.01/s ~±32m/s
Weight :
1.5kg
Description

Description of the handheld ultrasonic water flow meter :

The handheld ultrasonic water flow meter is designed to measure the fluid velocity of liquid in a full/closed pipe.The high precision portable ultrasonic water flow meter is built-in rechargeable battery and data-logger with non-contacting measuring.The handheld ultrasonic water flow meter can be used to measure ultra-pure liquids,potable water,chemicals,raw sewage,reclaimed water,cooling water,river water,plant effluent,etc.

Features of the handheld ultrasonic water flow meter :

·4 Line large-screen LCD
·High accuracy measuring
·Wide measuring range
·Small and light
·RS-232

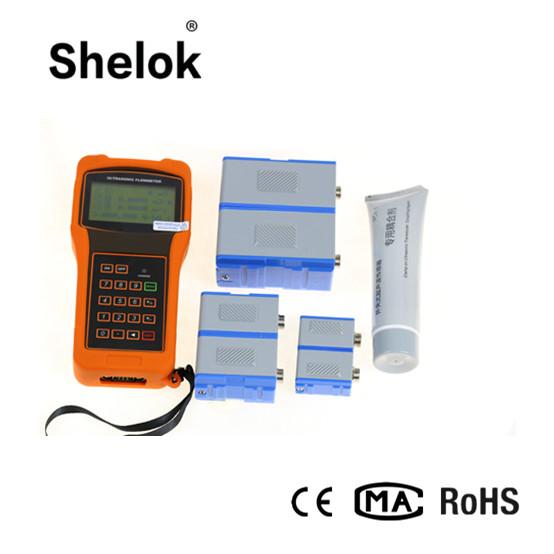

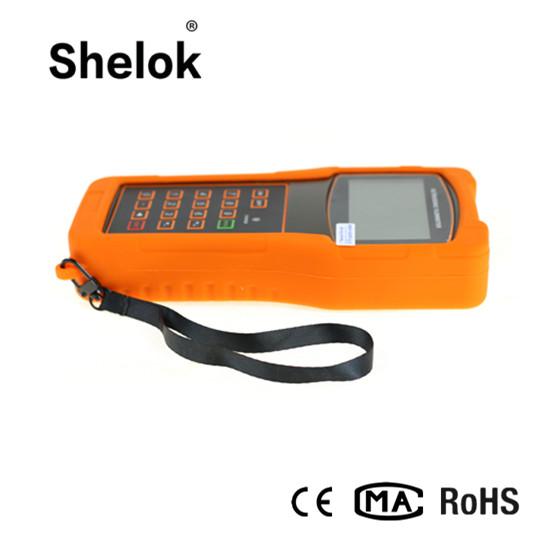

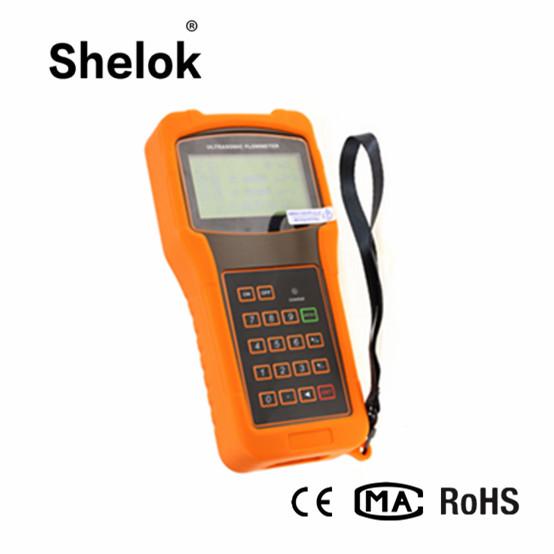

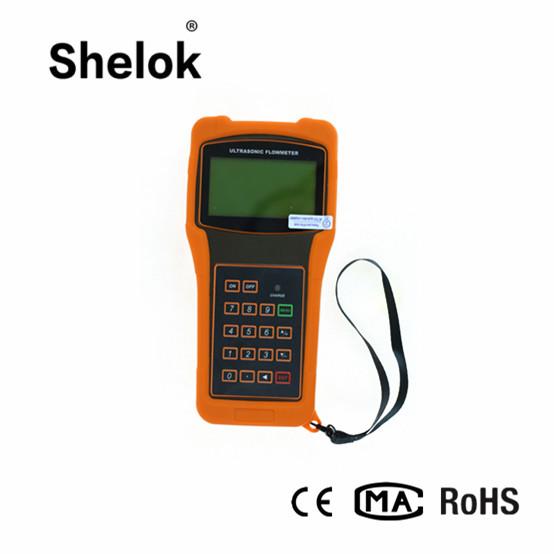

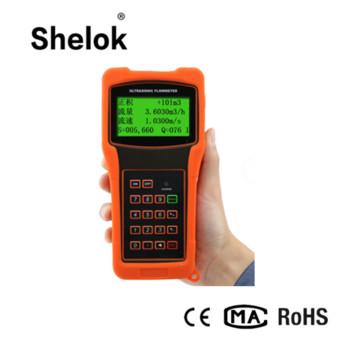

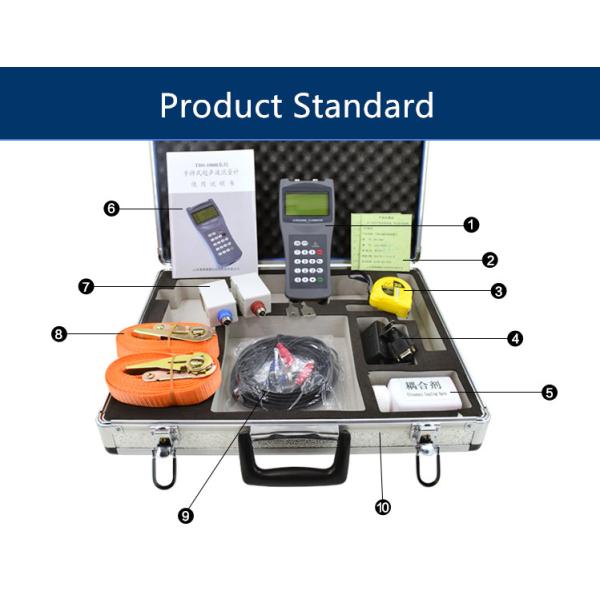

Detailed Images of the handheld ultrasonic water flow meter :

China Hndheld chemical sulfuric acid ultrasonic water DN15~6000 flow meterChina Hndheld chemical sulfuric acid ultrasonic water DN15~6000 flow meter

Specification of handheld ultrasonic water flow meter :

Repeatability Better than 0.2%
Accuracy ±1% of reading at rates>0.2 mps
Linearity 0.5%
Velocity ±32 m/s
Totalizer 7-digit totals for net, positive and negative flow respectively
Liquid Types Virtually all liquids
Security Setup values Modification Lockout. Access code needs unlocking
Response Time 0-999 seconds, user-configurable
Signal output Non-isolation RS232(FUJI extension protocol), one channel isolation OCT output
Transducer Cord Length Standard 2x10 meters, optional 2x 500 meters
Power Supply 3 AAA Ni-H built-in batteries. When fully recharged it will last over 12 hours of operation.
100V-240VAC for the charger
Case Size 100x66x20mm
Data Logger Built-in data logger can store over 2000 lines of data Housing Material ABS
Handset Weight 514g (1.2 lbs) with batteries
