Round ASTM 316L Thin Wall Stainless Steel Pipes Surface Bright Polished Micro Capillary Inox 2.0mm
Round ASTM 316L Thin Wall Stainless Steel Pipes Surface Bright Polished Micro Capillary Inox 2.0mm
Round ASTM 316L Thin Wall Stainless Steel Pipes Surface Bright Polished Micro Capillary Inox 2.0mm
Round ASTM 316L Thin Wall Stainless Steel Pipes Surface Bright Polished Micro Capillary Inox 2.0mm
Specifications
Brand Name :
Hongyiyuan
Model Number :
321, 316, 316L, 316Ti, 316F, 316LTi, 309S, 310, 310S, 904L
Certification :
ISO
Place of Origin :
China
MOQ :
1 Ton
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
1000tons/months
Delivery Time :
7-15 Days After Paid
Packaging Details :
Standard Seaworthy Package
Product :
Stainless Steel Pipe
Standard :
ASTM GB AISI JIS EN
Grade :
316L
Length :
3000mm, 6000mm or as required
Price Term :
EXW,FOB,CIF,FCA
Processing Service :
Punching, Cutting,Welding
Application :
Construction,Decoration,Industry,machine building,Exhaust Pipe
Description

Product Description

Stainless steel pipe is a hollow long round steel, which is widely used in petroleum, chemical, medical, food, light industry,
mechanical instrumentation and other industrial pipelines and mechanical structural parts. In addition, when the bending and torsion strength are the same, the weight is lighter, so it is also widely used in the manufacture of mechanical parts. and engineering structures. Also often used as furniture and kitchen utensils.

Material SS201 (Ni 0.8%-1.2%) Standard AISI ASTM GB,JIS
SS301(Ni 6.0%-7.0%) Surface Satin:180G/240G/320G/400G
SS304(Ni 8.0%-12.0%) Mirror:600G/800G
SS316(Ni 10.0%-14.0%) Outdiameter 9.5mm~101.6mm
SS316L(Ni 12.0%-15.0%) Thickness 0.4mm~2.0mm
Tolerance a)Out diameter:± 0.2mm Length 5.8M/6.0M/6.1M(or customer's requirement )
b)Thickness is ±0.03mm Application range construction,decoration,industry,
kitchen,medical equipment
c)Length:±10mm Package Regualr export package with PP bag
d)Weight:±15% Delivery time 5-15days

Chemical Composition

Grade C Si Mn P S Ni Cr Mo
201 ≤0 .15 ≤0 .75 5. 5-7. 5 ≤0.06 ≤ 0.03 3.5 -5.5 16 .0 -18.0 -
202 ≤0 .15 ≤l.0 7.5-10.0 ≤0.06 ≤ 0.03 4.0-6.0 17.0-19.0 -
301 ≤0 .15 ≤l.0 ≤2.0 ≤0.045 ≤ 0.03 6.0-8.0 16.0-18.0 -
302 ≤0 .15 ≤1.0 ≤2.0 ≤0.035 ≤ 0.03 8.0-10.0 17.0-19.0 -
304 ≤0 .0.08 ≤1.0 ≤2.0 ≤0.045 ≤ 0.03 8.0-10.5 18.0-20.0 -
304L ≤0.03 ≤1.0 ≤2.0 ≤0.035 ≤ 0.03 9.0-13.0 18.0-20.0 -
309S ≤0.08 ≤1.0 ≤2.0 ≤0.045 ≤ 0.03 12.0-15.0 22.0-24.0 -
310S ≤0.08 ≤1.5 ≤2.0 ≤0.035 ≤ 0.03 19.0-22.0 24.0-26.0
316 ≤0.08 ≤1.0 ≤2.0 ≤0.045 ≤ 0.03 10.0-14.0 16.0-18.0 2.0-
316L ≤0 .03 ≤1.0 ≤2.0 ≤0.045 ≤ 0.03 12.0 - 15.0 16 .0 -1 8.0 2.0 -
321 ≤ 0 .08 ≤1.0 ≤2.0 ≤0.035 ≤ 0.03 9.0 - 13 .0 17.0 -1 9.0 -
630 ≤ 0 .07 ≤1.0 ≤1.0 ≤0.035 ≤ 0.03 3.0-5.0 15.5-17.5 -
631 ≤0.09 ≤1.0 ≤1.0 ≤0.030 ≤0.035 6.50-7.75 16.0-18.0 -
904L ≤ 2 .0 ≤0.045 ≤1.0 ≤0.035 - 23.0·28.0 19.0-23.0 4.0-5.0
2205 ≤0.03 ≤1.0 ≤2.0 ≤0.030 ≤0.02 4.5-6.5 22.0-23.0 3.0-3.5
2507 ≤0.03 ≤0.8 ≤1.2 ≤0.035 ≤0.02 6.0-8.0 24.0-26.0 3.0-5.0
2520 ≤0.08 ≤1.5 ≤2.0 ≤0.045 ≤ 0.03 0.19 -0. 22 0. 24 -0 . 26 -
410 ≤0.15 ≤1.0 ≤1.0 ≤0.035 ≤ 0.03 - 11.5-13.5 -
430 ≤0.1 2 ≤0.75 ≤1.0 ≤ 0.040 ≤ 0.03 ≤0.60 16.0 -18.0 -

Surface Description

Surface

Definition

Application

No.1

The surface finished by heat treatment and pickling or processes corresponding there to after hot rolling.

Chemical tank, pipe etc.

No.3

Those finished by polishing with No.100 to No.120 abrasives specified in JIS R6001.

Kitchen utensils, Building construction etc.

No.4

Those finished by polishing with No.150 to No.180 abrasives specified in JIS R6001.

Kitchen utensils, Building construction, Medical equipment etc.

2B

Those finished, after cold rolling, by heat treatment, pickling or other equivalent treatment and lastly by cold rolling to given appropriate luster.

Medical equipment, Food industry, Construction material, Kitchen utensils etc.

BA (No.6)

Those processed with bright heat treatment after cold rolling.

Kitchen utensils, Electric equipment, Building construction etc.

Mirror (No.8)

Shinning like a mirror

Building construction, decoration etc.

Hairline

Those finished polishing so as to give continuous polishing streaks by using abrasive of suitable grain size.

Building Construction etc.

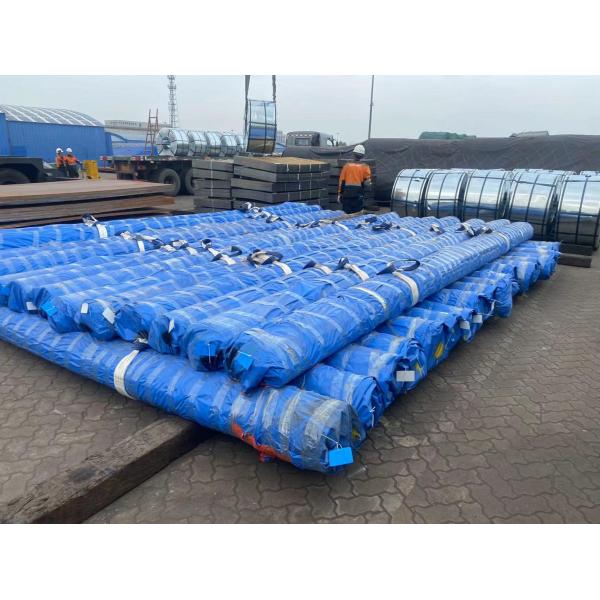

Product Packing

Round ASTM 316L Thin Wall Stainless Steel Pipes Surface Bright Polished Micro Capillary Inox 2.0mm

Product Application

Stainless steels are most commonly used for their corrosion resistance. The second most common reason stainless steels are used is for their high temperature properties. Stainless steels can be found in applications where high temperature oxidation resistance is necessary, and in other applications where high temperature strength is required. The high chromium content which is so beneficial to the wet corrosion resistance of stainless steels is also highly beneficial to their high temperature strength and resistance to scaling at elevated temperatures

Round ASTM 316L Thin Wall Stainless Steel Pipes Surface Bright Polished Micro Capillary Inox 2.0mm

FAQ

Q: What's your advantage?

A: We have a large number of professional technical personnel, more competitive prices than other steel companies and the best after-sales service.

Q: Do you offer after-sales services?

A: Certainly. If you have any questions, please feel free to contact us. We will do our best to solve the problems and satisfy you.

Q: How about the delivery time?

A: Within 4-35 days after we confirm your orders. Depending on different products.

Q: How do you control quality?

A: All products are produced in strict accordance with relevant product standards, and the products are tested by relevant instruments and experimental equipment during the production process.

Q: Does the product have quality inspection before loading?

A: Of course, all our products have undergone strict quality inspection before packing. We accept customer’s inspection before loading.
