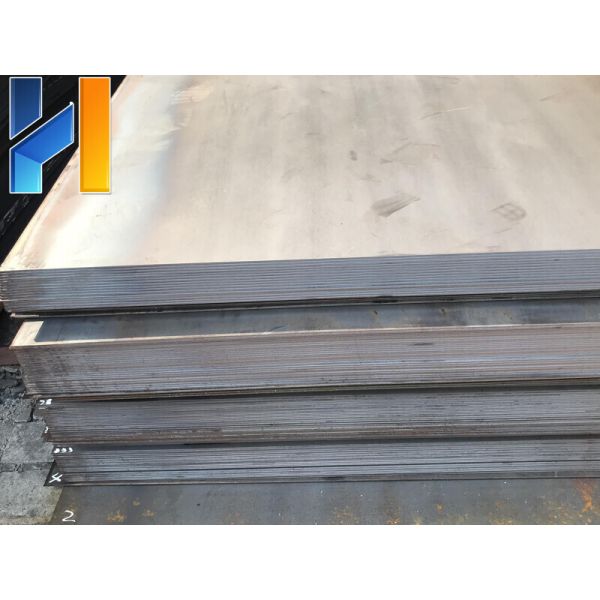

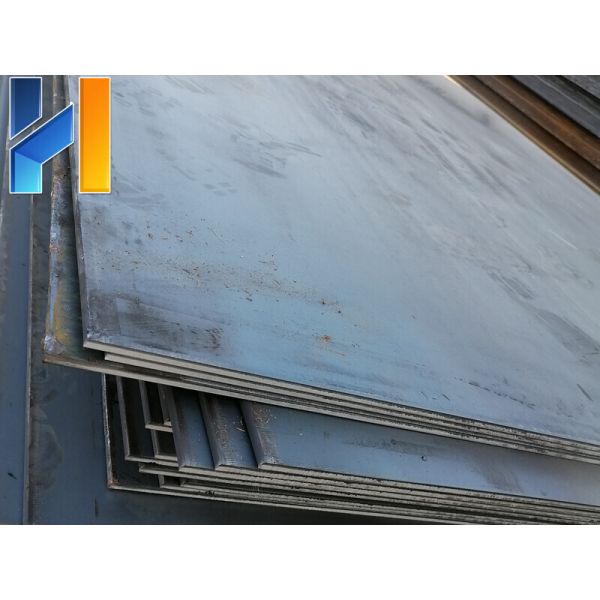

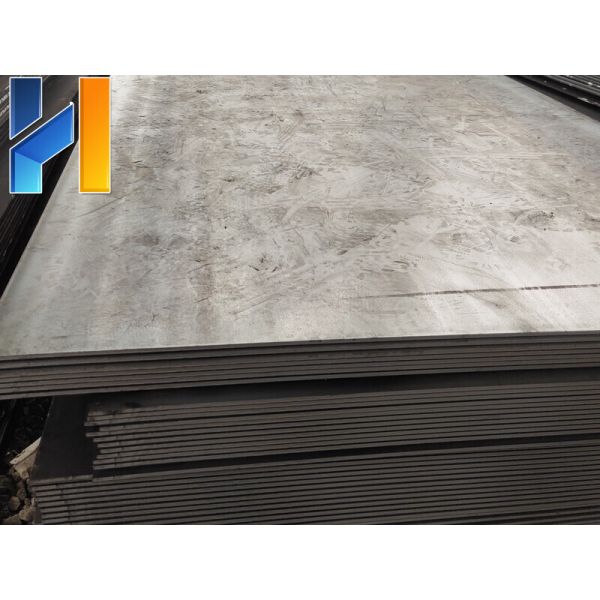

High Strength Carbon Steel Plate and Sheet with 0.15mm-300mm Thickness Available in Cold Rolled and Hot Rolled
High Strength Carbon Steel Plate and Sheet with 0.15mm-300mm Thickness Available in Cold Rolled and Hot Rolled
High Strength Carbon Steel Plate and Sheet with 0.15mm-300mm Thickness Available in Cold Rolled and Hot Rolled
High Strength Carbon Steel Plate and Sheet with 0.15mm-300mm Thickness Available in Cold Rolled and Hot Rolled
Specifications
Thickness :
0.15mm-300mm
Width :
1250mm 1500mm or as per client's requirement
Length :
1000mm-12000mm or according to customer's special request
Technique :
Cold Rolled And Hot Rolled
Carbon content :
High-carbon steel (0.60 – 1.25)
Microstructure :
Pearlite
C :
0.15
Si :
0.75
Mn :
2.00
P :
0.06-0.12
S :
0.008
Cu :
0.25-0.50
Cr :
0.3-1.25
Ni :
0.65
Grade :
Q550NQR1
Description
Carbon Structural Steel Plate
High-quality carbon steel plates designed for structural applications, offering a balance of strength, durability, and formability.
High Strength Carbon Steel Plate and Sheet with 0.15mm-300mm Thickness Available in Cold Rolled and Hot Rolled High Strength Carbon Steel Plate and Sheet with 0.15mm-300mm Thickness Available in Cold Rolled and Hot Rolled High Strength Carbon Steel Plate and Sheet with 0.15mm-300mm Thickness Available in Cold Rolled and Hot Rolled
Premium Carbon Structural Steel
Our carbon structural steel plates are manufactured with less than 0.8% carbon content, ensuring superior mechanical properties compared to standard carbon steel. They are meticulously produced to minimize sulfur, phosphorus, and non-metallic inclusions, resulting in a product that is both robust and reliable for demanding industrial uses.
Key Benefits:
  • Enhanced Mechanical Properties
  • Excellent Durability and Strength
  • Good Formability and Weldability
  • Reduced Impurities for Higher Quality
Ideal For: Construction, manufacturing, automotive, heavy machinery, and infrastructure projects.
Product Attributes
Brand: N/A
Origin: N/A
Material: Carbon Structural Steel
Color: Mill Finish
Packaging & Delivery: Mill Test Certificate supplied. Third Party Inspection acceptable.
Technical Specifications
General Specifications
Product Name Standard Material Grades Thickness Width Length Technique
Carbon steel sheet / steel plate JIS, AISI, ASTM, GB, DIN, EN ASTM: Grade B, Grade C, Grade D, A36, Grade 36, Grade 40, Grade 42, Grade 50, Grade 55, Grade 60, Grade 65, Grade 80
EN: S185, S235JR, S275JR, S355JR, S420NL, S460NL S500Q, S550Q, S620Q, S690Q
JIS: SS330, SPHC, SS400, SPFC, SPHD, SPHE		 0.15mm-300mm 1250mm 1500mm or as per client's requirement 1000mm-12000mm or according to customer's special request Cold Rolled And Hot Rolled
Grade Specific Compositions (Example: Cor-ten Series)
Grade C Si Mn P S Cu Cr Ni
Cor-ten A0.120.25-0.750.20-0.500.01-0.20.030.25-0.550.5-1.250.65
Cor-ten B0.160.3-0.50.8-1.250.030.030.25-0.400.4-0.65≤0.4
SPA-H0.120.2-0.750.600.07-0.150.0350.25-0.550.3-1.250.65
9CuPCrNi-A0.120.2-0.750.20-0.500.07-0.150.0400.25-0.550.3-1.250.65
Q235NH0.130.10-0.400.20-0.600.030.0300.25-0.550.40-0.800.65
Q295NH0.150.10-0.500.30-1.000.030.0300.25-0.550.40-0.800.65
Q355NH0.160.50.50-1.500.030.0300.25-0.550.40-0.800.65
Q415NH0.120.651.100.0250.0300.20-0.550.30-1.250.12-0.65
Q460NH0.120.651.500.0250.0300.20-0.550.30-1.250.12-0.65
Q500NH0.120.652.00.0250.0300.20-0.550.30-1.250.12-0.65
Q550NH0.120.652.00.0250.0300.20-0.550.30-1.250.12-0.65
Q265GNH0.120.10-0.400.20-0.500.07-0.120.0200.2-0.450.30-0.650.25-0.50
Q295GNH0.120.10-0.400.20-0.500.07-0.120.0200.25-0.450.30-0.650.25-0.50
Q310GNH0.120.25-0.750.20-0.500.07-0.120.0200.25-0.550.30-1.250.65
Q355GNH0.120.20-0.751.000.07-0.150.0200.25-0.550.30-1.250.65
Q345GNHL0.120.25-0.750.20-0.500.07-0.150.0350.25-0.550.30-0.650.65
Q295GQR20.120.10-0.400.20-0.500.06-0.120.0200.25-0.450.30-0.650.25-0.5
Q295GQR30.120.20-0.400.25-0.550.06-0.120.0200.25-0.50------
Q345NQR20.120.25-0.750.20-0.500.06-0.120.0200.25-0.500.3-1.250.12-0.65
Q345NQR30.120.20-0.500.25-0.700.06-0.120.0200.25-0.50------
Q400NQR10.120.751.100.0250.0080.25-0.550.3-1.250.12-0.65
Q450NQR10.120.751.500.0250.0080.25-0.550.3-1.250.12-0.65
Q500NQR10.120.752.000.0250.0080.25-0.550.3-1.250.12-0.65
Q550NQR10.160.752.000.0250.0080.25-0.550.3-1.250.65
Carbon Content & Properties
Carbon content (wt.%) Microstructure Properties Examples Standards
Low-carbon steel (< 0.25) Ferrite, pearlite Low hardness and cost. High ductility, toughness, machinability and weldability AISI 304, ASTM A815, AISI 316L N/A
Medium-carbon steel (0.25 – 0.60) Martensite Low hardenability, medium strength, ductility and toughness AISI 409, ASTM A29, SCM435 N/A
High-carbon steel (0.60 – 1.25) Pearlite High hardness, strength, low ductility AISI 440C, EN 10088-3 N/A
