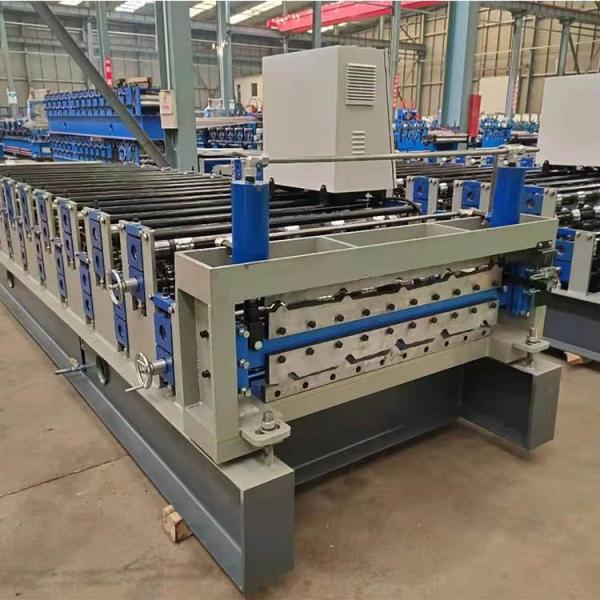

Double Layers Metal Roofing Tile Roll Forming Machine Tile Making Machine
Double Layers Metal Roofing Tile Roll Forming Machine Tile Making Machine
Double Layers Metal Roofing Tile Roll Forming Machine Tile Making Machine
Double Layers Metal Roofing Tile Roll Forming Machine Tile Making Machine
Specifications
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiate
Payment Terms :
T/T
Delivery Time :
30 days
Packaging Details :
nude
machine :
roll forming machine
Type :
Tile Forming Machine
Thickness :
0.3--0.8mm
power :
5.5kw
material :
steel
warranty :
1 year
Description

Double Layers Metal Roofing Tile Roll Forming Machine Tile Making Machine

Process flow

Decoiling--feeding--roll forming--hydraulic cutting--product table

A. terms of payment

1.tyof payment: 30% deposit in advance, when pick up the goods, the remaining need to be finished before transportation.

2. Delivery Time:10-15 days after the deposit.

3. Installation and debugging:

In case of sending technician to buyers country, The Buyer should bear all the cost including: visa ,round trip ticket ,Safety, the translator and suitable accommodation, also buyer should pay the salary 100USD/day.

4. Products warranty:

12 months, we provide technical support for whole life of the equipment.

5. Packaging Details: equipment for nude.

2.Manual decoiler

1) Capacity:5T

2) Coil inner diameter:450-550mm

3) Max coil width:1250mm

3.Roll forming machine

1) Machine structure:350H beam welded,18mm middle plate support

2) Shaft diameter:80mm,solid

3) Shaft material:45# steel,tempered treatment

4) Forming stations:IBR:18stations Step tile:13stations

5) Way of drive:Double chains drive,Chinese famous brand

6) Max rolling speed: IBR:0-20m/min Step tile:2-4m/min

7) Material of roller:45#forge steel processed with numerical control, polished and coated with chrome, surface with 0.05mm

8) Motor power:7.5kw Siemens brand motor

9) Voltage:380V,50HZ,3P

4.Hydraulic cutting system (Installed on the machine,no need to connect wire any more,also can save place)

1) Cutting method:Hydraulic cutting,by four pillars

2) Hydraulic power:5.5kw

3) Blade material:Cr12 with quenched treatment

4) Length tolerance:±1mm
