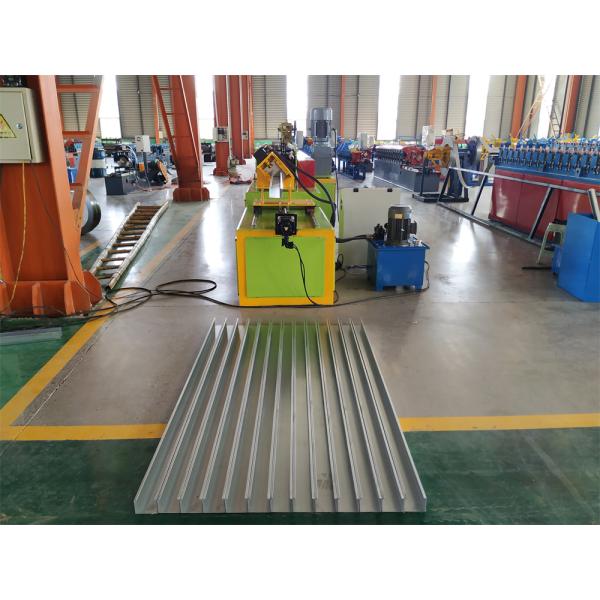

Chain Drive C Purlin Roll Forming Machine Interchangeable Width Customzed Design
Chain Drive C Purlin Roll Forming Machine Interchangeable Width Customzed Design
Chain Drive C Purlin Roll Forming Machine Interchangeable Width Customzed Design
Chain Drive C Purlin Roll Forming Machine Interchangeable Width Customzed Design
Specifications
Brand Name :
SHITONG
Model Number :
20-200-1000
Certification :
ISO,CE
Place of Origin :
Cangzhou, China
MOQ :
1 set
Price :
Contact us get the best price
Payment Terms :
L/C,T/T
Supply Ability :
20sets/month
Delivery Time :
35 days
Packaging Details :
Loading container
name :
C Section Roll Forming Machine
Machine color :
Blue and orange
Drive method :
1" chain
Working speed :
20-25m/min
Maching weight :
2500 KG
Cutter type :
one cutter for all size
Electronic control system :
PlC
Material of blade :
Cr12 Heat Treatment
Cutting Mode :
None stop cutting
Rows of rollers :
12 stations
Description

Chain Drive C Purlin Roll Forming Machine Interchangeable Width Customzed Design

Technical parameters:

Suitable Material Material Steel, galvanized steel
Thickness 0.5-1 mm
Material of rollers High grade 45# forged steel, surface hard chromium plating
Rows of rollers 12 stations
Material of shafts High grade 45# forged steel
Diameter of shafts 50mm
Material of blade Cr12 Heat Treatment
Cutting Mode None stop cutting
Speed 35-40m/min
Side plate thickness 20 mm
Total power 4+4 kw
Voltage 380V 50HZ 3Phase
Appearance size (About) 6500mm*1000mm*1500mm
Weight(About) 2.5 tons
Electronic control system PLC + Touch Screen

Standard Configuration:

5 tons Manual decoiler 1 set
Main roll forming machine 1 set
Hydraulic pump system 1 set
PLC control system 1 set
Receiving Table

1 set
Spare parts 1 set

Spare Parts

Chain Drive C Purlin Roll Forming Machine Interchangeable Width Customzed Design

Packing Method

Main machine is packaged with plastic film

Transportation

All machines need one 40 feet container to hold

Payment Term

30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment.

Delivery Time

Within 40 days after receiving deposit.

Warranty

Two years, and we will provide technical support for wholelife of the equipment.

If some parts of machine broken within 2 year, we will give customer the spare parts for free. (include chain, bearing, roller,oil pipe, counting wheel) If more than 2 year, maybe some spare parts need to be charged. If machine can not work well, we can teach them online until the machine is perfect. If you need, we can go to your place to assist you. But you need to provide the cost of the engineer.

Product Description


Steel frame purlin machine can be designed with C Z , that is CZ purlin forming machine, with different sizes of 100-300mm, three sets of punching, and raw material thickness of 1.5-3.0mm, which basically meets the needs of different purlins on the market.

or only C purlin machine from 3 inch to 10 inch, or punch holes or what thickness of raw material.

we , can design and quote your purlin machine accordingly.

FAQ:

1.How to get a quotation for C Purlin Machine?
Give me the profile drawing and thickness of the stud,this is the important.
Other spicific requirements is welcome,such as the speed,power and voltage you want.

2. Terms of payment:
30% T/T, Balance to be paid before shipping after inspection.Also we accept the payment L/C, O/A , D/P.

5. What is your after-sale service?
Stud Track Roll Forming Machine's warranty period is 12months,if the broken parts can't be repaired,we can send new to replace for free,but you need to pay the express cost yourself.we supply the technical support for the whole life of the c Stud Track Roll Forming Machine.

7. How to visit your company?
a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.

Chain Drive C Purlin Roll Forming Machine Interchangeable Width Customzed Design
