Color Steel Rolling Shutter Profile Machine , Mould Cutting Door Panel Roll Forming Machine
Color Steel Rolling Shutter Profile Machine , Mould Cutting Door Panel Roll Forming Machine
Color Steel Rolling Shutter Profile Machine , Mould Cutting Door Panel Roll Forming Machine
Color Steel Rolling Shutter Profile Machine , Mould Cutting Door Panel Roll Forming Machine
Color Steel Rolling Shutter Profile Machine , Mould Cutting Door Panel Roll Forming Machine
Color Steel Rolling Shutter Profile Machine , Mould Cutting Door Panel Roll Forming Machine
Specifications
Brand Name :
shitong
Model Number :
ST 180
Certification :
CE/ ISO9001
Place of Origin :
CHINA
MOQ :
1 SET
Price :
contact me to get the lowest price
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
35 sets per month
Delivery Time :
30 days
Packaging Details :
the main machine is nude
name :
Rolling Shutter Profile Machine
After-sales service provided :
Engineers available to service machinery overseas,Video technical support,Field maintenance and repair service,Online support,Field installation
Warranty :
2 Years
Raw material :
PPGI,Color Steel Sheet,Galvanized Sheet
Control system :
PLC control box
Type :
shutter door door frame machine
Roller material :
45# steel after hot treatment
Color :
Client's Request
Cutting type :
Hydraulic cutting
Shaft material :
High Grade No.45 Forged
Production capacity :
8-12m/min
Description

Full automatic color steel profie sheet roller making machine line mould cutting shutter door roll forming machine

Quick Details

Warranty: 1.5 years

Type: Tile Forming Machine

Production Capacity: 15-20m/min

Certification: CE/ISO9001

Applicable Industries: Manufacturing Plant

Condition: New

Tile Type: Colored Glaze Steel

Use: Roof, shutter door

Place of Origin: Hebei, China (Mainland)

Voltage: 380V 50Hz 3phases

Dimension(L*W*H): 4500*1300*1100

Weight: 1.8 Tons

Main motor power: 4kw+5.5kw

Roller material: High-grade 45# Steel,heated and quenched

Drive: by chain(1 inch)

Operation: Touch Screen

machine parameters:

Suitable material Color steel sheet , galvanized steel sheet,
Main motor power 5.5KW with Cycloidal reducer
Hydraulic station power 4KW
Hydraulic oil 40#
Thickness 0.3mm~0.8mm
Diameter Φ45mm
Electric tension 380V 3phase 50HZ
Material of roller High grade 45# forged steel
Rolling galvanization thickness 0.05mm
Processing speed 12-15m/min
Processing precision within 10m+/-1.00mm
Material of cutting blade Cr12 quenched

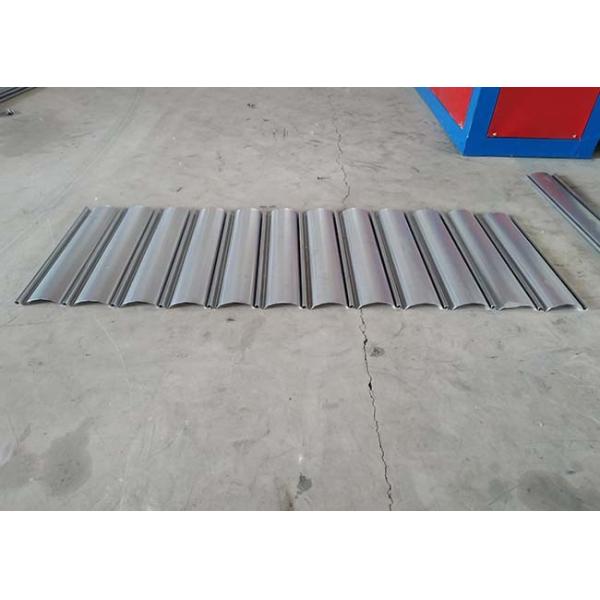

machine pictures:

Color Steel Rolling Shutter Profile Machine , Mould Cutting Door Panel Roll Forming MachineColor Steel Rolling Shutter Profile Machine , Mould Cutting Door Panel Roll Forming Machine

Color Steel Rolling Shutter Profile Machine , Mould Cutting Door Panel Roll Forming Machine
