3000w S2 3015 Shuttle Platform Fiber Laser Cutting Machine 4000W
3000w S2 3015 Shuttle Platform Fiber Laser Cutting Machine 4000W
3000w S2 3015 Shuttle Platform Fiber Laser Cutting Machine 4000W
3000w S2 3015 Shuttle Platform Fiber Laser Cutting Machine 4000W
Specifications
Brand Name :
HE LASER
Model Number :
S4
Certification :
CE
Place of Origin :
Wuhan
MOQ :
1 set
Price :
47999 USD
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100 Sets per Month
Delivery Time :
within 30 days
Packaging Details :
wooden package
Name :
Fiber Laser Cutting Machine 4000W
Condition :
New
Cutting Area :
3000mm*1500mm
Cutting Thickness :
Depend on materials
Laser power :
1500W-4000W
Dimension :
8900*3200*2600mm
Description

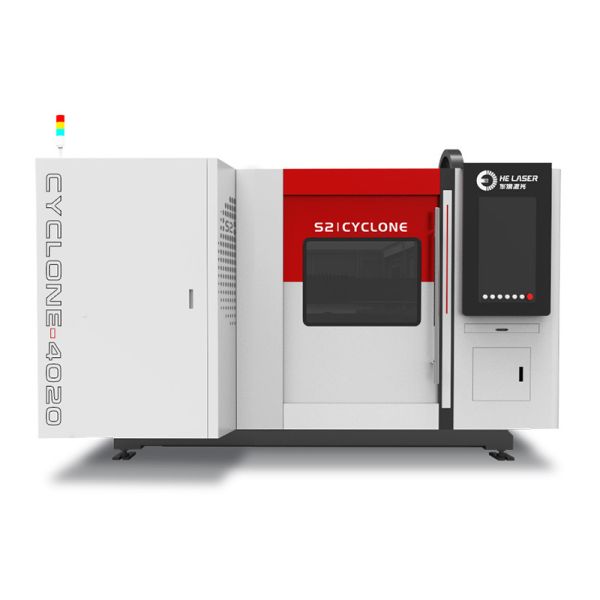

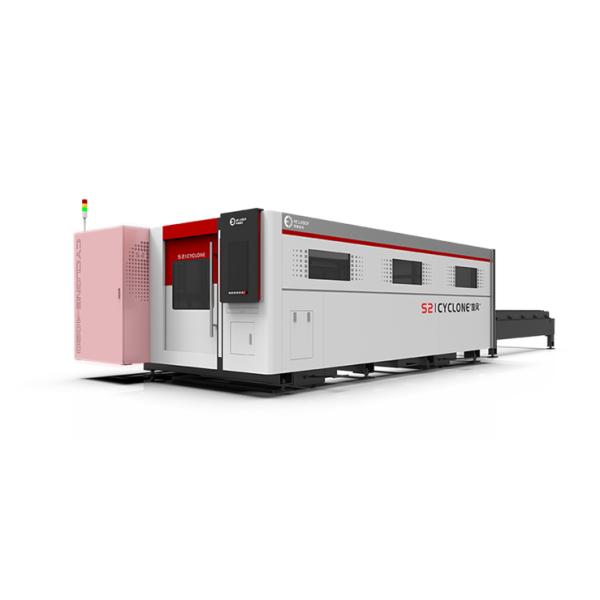

S2 CYCLONE Series Shuttle Platform Fiber Laser Cutting Machine 1500-4000W

3000w S2 3015 Shuttle Platform Fiber Laser Cutting Machine 4000W

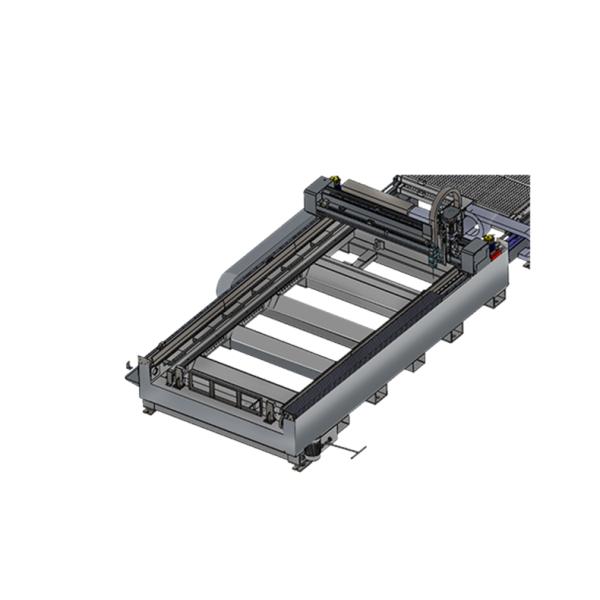

Thermal annealing steel bed, long service life

Large format and heavy machine body adopts frame structure welded by high quality steel to get excellent dynamic and static response characteristics. After welding, annealing, secondary aging treatment, precision processed by large gantry milling

machine, it can ensure the good shock resistance, high rigidity and stability for the machine body.

 3000w S2 3015 Shuttle Platform Fiber Laser Cutting Machine 4000W
3000w S2 3015 Shuttle Platform Fiber Laser Cutting Machine 4000W

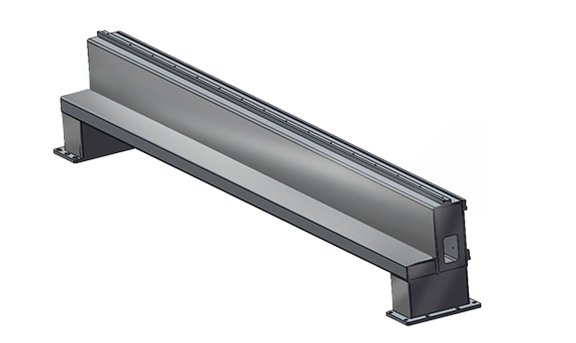

Unique “L” shaped beam

Unique “L” design of the beam, which has better deformation resistance at horizontal section and vertical orientation and higher

rigidity. It also has the advantages of less weight, better dynamic performance.

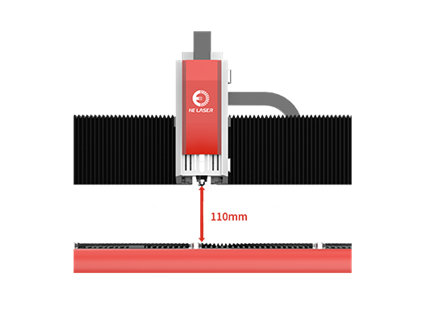

Big height of passing the beam

The max height which can pass the beam is 110mm, can cut the profiles with U and L shapes.

 3000w S2 3015 Shuttle Platform Fiber Laser Cutting Machine 4000W
3000w S2 3015 Shuttle Platform Fiber Laser Cutting Machine 4000W

Efficient communication performance

Front operator interface and electrical cabinet can reduce circuit interference.

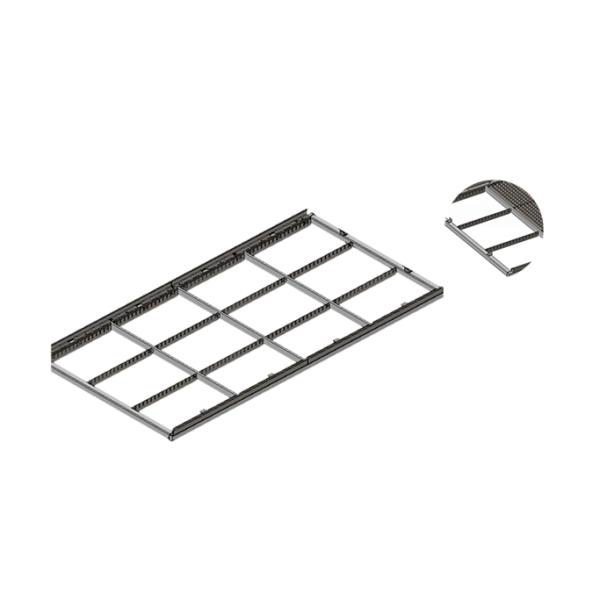

Modular assemble platform

Assemble frames can prevent thermal deformation effectively. It is convenient to replace the supports to longer the life of

platform.

 3000w S2 3015 Shuttle Platform Fiber Laser Cutting Machine 4000W
3000w S2 3015 Shuttle Platform Fiber Laser Cutting Machine 4000W

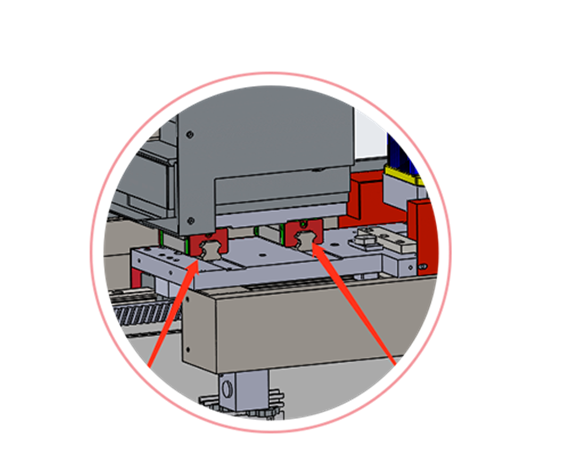

Compensation structure for beam expansion

Can modify the precision deviation caused by environment, temperature change and working condition intelligently.

Model TWIN612/R
IR Detector Performance
Resolution 640×512
Pixel Size 12μm
Spectral Range 8~14μm
Typical NETD ＜40mK
Image Processing
Frame Rate 25Hz/30Hz
Start-up Time 6s
Analog Video PAL/NTSC
Digital Video YUV/BT.656/LVDS/USB2.0
Image Display 11 in Total (White Hot/Lava/Ironbow/Aqua/Hot Iron/Medical/Arctic/Rainbow1/Rainbow2/Red Hot/Black Hot)
Image Algorithm NUC/3D/2D/DRC/EE
Electrical Specifications
Standard External Interface 50pin_HRS
Communication Interface RS232/USB2.0
Supply Voltage 4~5.5V
Typical Power Consumption 0.8W
Temperature Measurement
Operating Temperature Range -10℃~50℃
Temperature Measurement Range -20℃~150℃, 0℃~550℃
Temperature Measurement Accuracy Greater of ±2℃ or ±2%
SDK Windows/Linux; Achieve Video Stream Analysis and Conversion from Gray to Temperature
Physical Characteristics
Dimension (mm) 25.4×25.4×35 (Without Lens)
Weight 25g (Without Lens)
Environmental Adaptability
Operating Temperature -40℃～+70℃
Storage Temperature -45℃～+85℃
Humidity 5%~95%, non-condensing
Vibration 5.35grms, 3 Axis
Shock Half Sine Wave, 40g/11ms, 3 Axis, 6 Direction
Optics
Optional Lens Fixed Athermal: 13mm
