G 1 / 4 Air Ports Sheet Metal Gripper For Power Press Sheet Metals
G 1 / 4 Air Ports Sheet Metal Gripper For Power Press Sheet Metals
G 1 / 4 Air Ports Sheet Metal Gripper For Power Press Sheet Metals
G 1 / 4 Air Ports Sheet Metal Gripper For Power Press Sheet Metals
Specifications
Brand Name :
BRISK
Model Number :
Transfer Die Stamping
Place of Origin :
Nanjing City, China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, L/C, , MoneyGram
Supply Ability :
300 + Piece + per Months
Delivery Time :
2-10 days
Packaging Details :
Strong carbon box, wooden cases. According to your requirements.
Masse :
0.44 kg
Air Ports :
G 1 / 4
Clamping Force :
650.0 N (at 5 bar)
Operating Pressure :
Max. 6.0 bar
Description

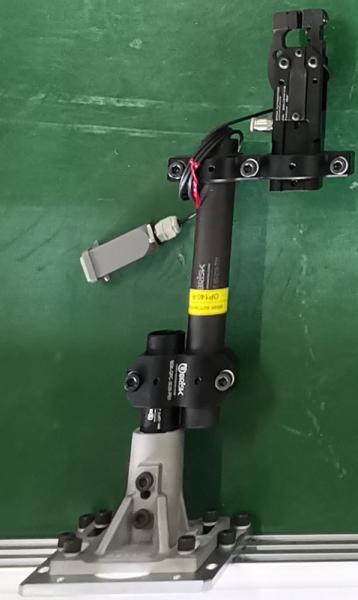

High Security Operating Pneumatic Gripper for Transfer Tooling

What is the difference between parallel and angular grippers?


'Generally, an angular gripper is used when you need to get the tooling out of the way. A parallel gripper is used for pulling a part down inside a machine because the fingers fit into small areas better. Space constraints might lead to the use of parallel over angular,' says Todd Scott.

3-jaw chucks are also better suited for machining longer workpieces because the longer collet chuck limits Z-axis travel. Spindle performance: Because they are lighter in weight, collet chucks have less mass, so the lathe spindle gets up to speed faster and puts less strain on the spindle motor.

Item No. BSK-GPS11-A
Features 5 million cycles
Sensor position available
Modular structure
High clamping force
Easy adjustment
Fast opening & closing action
Self-locking structure for clamping

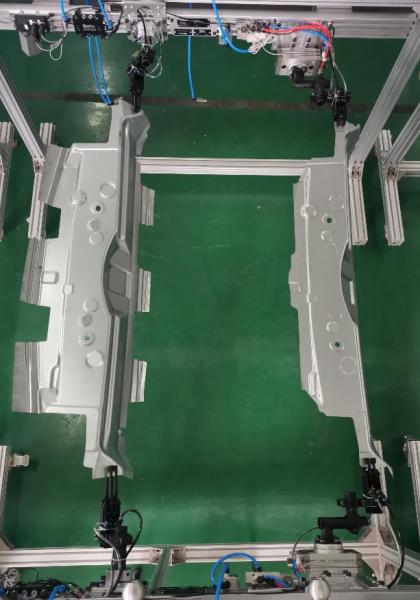

Applications Holding, removing and transporting of metal sheets and other products, mainly for automation stamping.

Advantage:

long life, high clamp force, modular designed jaw tips are available. Best design, best price, and best delivery make the Brisk grippers the best workholding clamp available.

G 1 / 4 Air Ports Sheet Metal Gripper For Power Press Sheet MetalsG 1 / 4 Air Ports Sheet Metal Gripper For Power Press Sheet Metals
