Specifications
Brand Name :
Shenghong
Model Number :
SH16-06-05-11
Certification :
CE/ISO
Place of Origin :
China, Jiangsu
MOQ :
1 sets
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
30 SETS/ MONTH
Delivery Time :
40 days after payment
Packaging Details :
Container
Production Capacity :
8-10m/min
Power(W) :
5.5 Kw
Dimension(L*W*H) :
7.35*1.2*1.5 m
Voltage :
380v(or as your required)
Control system :
Fully automatic
Description
Powerful Metal 688 Deck Cold Roll Forming Machine High Efficiency
Product Description

Specifications of the equipment:

No Deck Metal Floor Tile Glazing Machine
1 Dimensions (L*W*H) 14000*1500*1300mm
2 Total power

Motor power-22kw

Hydraulic power-4kw
3 Rows of rollers 24 rows
4 Productivity 10-12m/min
5 Diameter of shaft 95mm
6 Voltage 380V 50Hz 3Phases
7 Machine body 450mm H-model Steel
8 Middle plate 22mm steel
9 Weight 14000kg
10 Shafts 45# steel quenching treatment
11 Rollers 45# steel plated with chrome
12 Raw material processed

Pre-painted plate/ galvanized plate

0.5-1.2mm
13 Accessories included punching system

PS: the above are for reference; customized design is provided.

Specification of the raw material:

No
1 Suitable material pre-painted coil, galvanized coil,
2

Width of the raw material/

feeding width

 1000mm

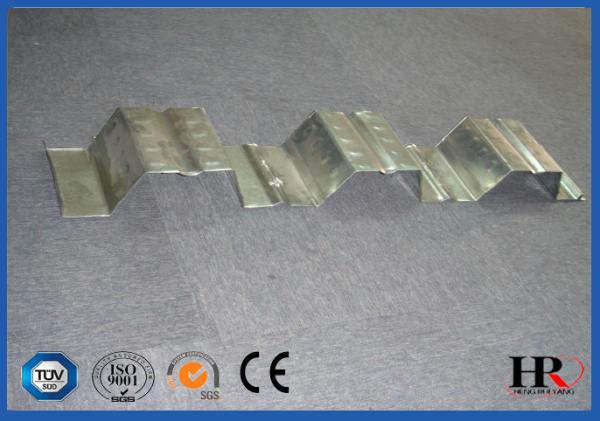

3 cover width/ effective width 688mm
4 Thickness 0.5-1.2mm

Work flow:

Powerful Metal 688 Deck Cold Roll Forming Machine High Efficiency

Our Advantages:

Our machine Other company 's machine Influence of the machine
Machine's base High strength H350 / H400 steel. machine through milling macine after welding H270 steel mark, after welding use manual polish keep base in the same horizontal line, ensure product standard
Roller material High grade No.45 forged steel, with digital-controlled procession, Plated with 5 um chrome coated Normal No. 20 steel with Simple polished and have no coating Roller will have longer use life and ensure the products have same size,no nick on the surface.
Side wall Use high strength16mm thickness steel panel mark Use 12 mm thickness steel panel mark Ensure machine harder to deform, keep the product accurate and stable
Active shaft material High grade solid No.45 carbon steel, Shaft diameter is 72mm. surface CNC polish treatmen Normal No. 45 steel with no surface treatment Improve the integrated mechanic feature of the shaft. and ensure the shaft stability keep product standard
Electrical elements PLC control panel, transducer imported from Mitsubishi of Japan. Other elements from famous suppliers in China All the elements are made in china Machine become more accurate and more stable
Cutter blade Cr12 mould steel with quenched treatment Normal high strength steel without quenched treatment

Stable the integrated mechanic feature of the cutter blade,harder to deform, longer blade's life, ensure product standard

Accessories:
