Specifications
Brand Name :
Shenghong
Model Number :
Roof Tile SWL151211-42
Certification :
CE ISO
Place of Origin :
Jiangsu, China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
25 sets / month
Delivery Time :
40 days after payment
Packaging Details :
1. Export standard package for container 2. Host nude, wheels with oil and gas bubble cushion packaging. 3. PLC controller with bubble cushion packaging 4. Spare parts in wooden cases.
Model :
Metal corrugated roof
Advantages :
self-design and produce, experienced team
service :
customization available
decolier :
Cantilever-type, hydraulic expanding, electrical motor releases the sheet.
Description

Metal Corrugated Roof Forming Machine Electrical For Sheet Making

Brief introduction

  • Metal corrugated roof is widely used for commercial steel structure buildings, associated with residential and commercial building.
  • Corrugated roof panel machine is special designed for its production.
  • Our roofing machine is designed and manufactured at a high level the advanced technology we adopt is popular in the machinery industry.
  • Roofing sheet roll forming machine is definitely a good choice for manufacturing of high-quality roof panels.

General Description

  1. Roofing sheet roll forming machine is also named as roofing sheet making machine or roof panel machine.
  2. Roofing sheet roll forming machine is consists of uncoiller, guiding device, roll forming unit, stop-to-cut device, run-out table, hydraulic system and electrical controller.
  3. The roofing forming machine is extensively used in building steel-structure large-scale warehouses, plants, supermarkets, shopping malls, trade markets, hotels, villas, residences and different kinds of greenhouses.

Machine characters

  • Our roof panel machine is designed by professional team with rich experience in machinery industry.
  • We adopt the most advanced technology and high-quality materials to manufacture the best machine. With high efficiency, high flexibility, good performance and low production cost, it is a good choice for manufacturing cold rolled products widely used in the construction.
  • The roofing machine can be customized according to your special needs. We promise to offer products of high quality but with reasonable price.


Technical Specifications

Name Model/Name Quantity Technical Description
1.Decoiler 10T automatic decoiler 1set Cantilever-type, hydraulic expanding, electrical motor releases the sheet.
2. Main forming system Pre-slitting device 1set 1.Roller material: No.45 steel, surface painted with hard chrome.
2. Roller shaft material: No.45 steel with thermal refining.
3. Roller supporting type: column.
4. Electrical motor driving, back/forward rollers driven by chain, part of upper/lower rollers driven by gear.
5. Cutting blade material Cr12 quenched treatment.
Feed guiding device 1set
Lubrication device 1set
Filming device 1set
Roll forming system 1set
Complete mobile safety cover 1set
Cutting system 1set
3. Output system Stacking system 1set Optional
4. Hydraulic system 1set Decoiler adopts separated hydraulic station.
5. Electric control system 1set 1.PLC Control, encoder automatic cut to length PLC
2.Operation: Touch screen+ button

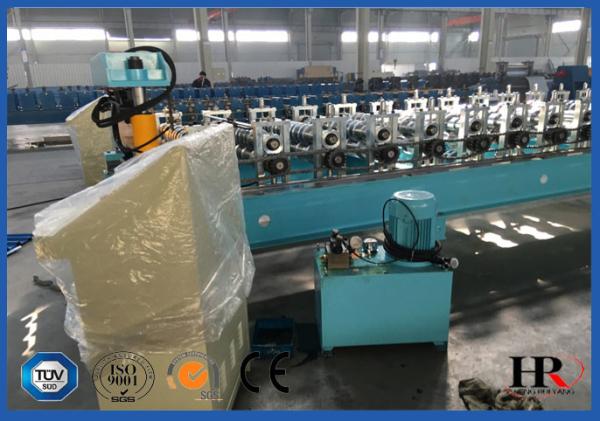

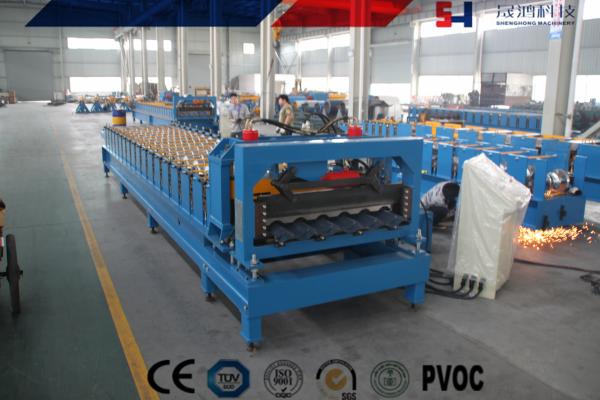

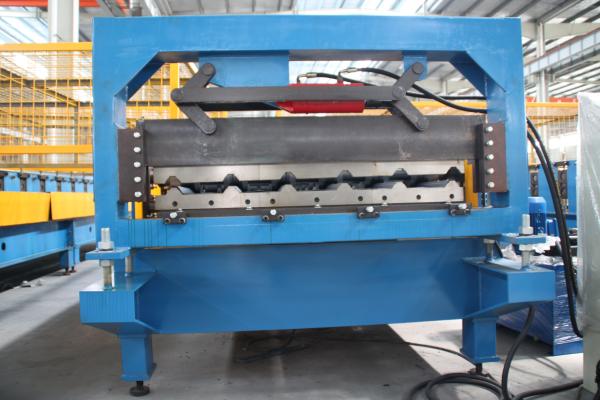

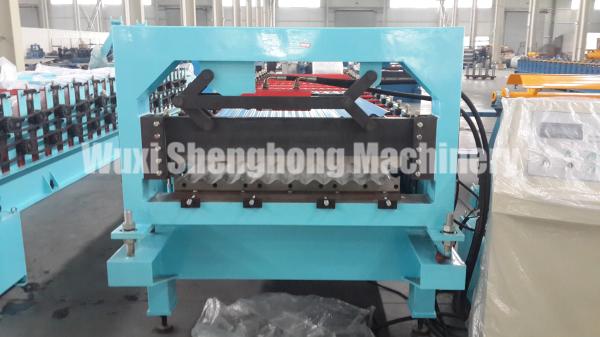

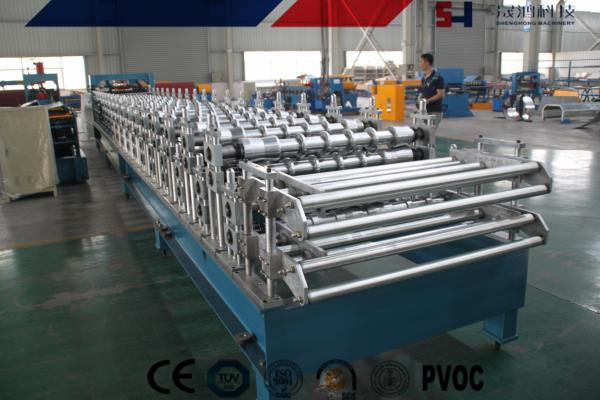

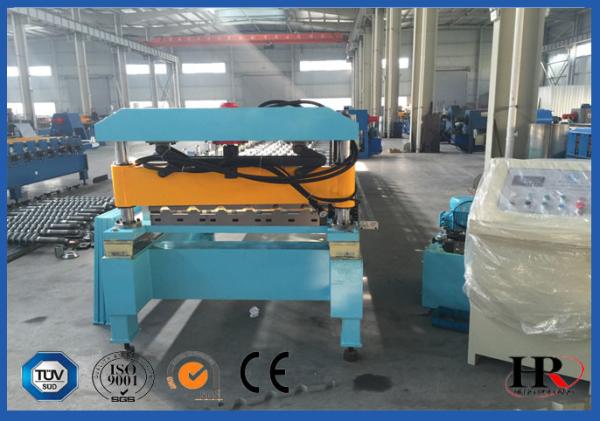

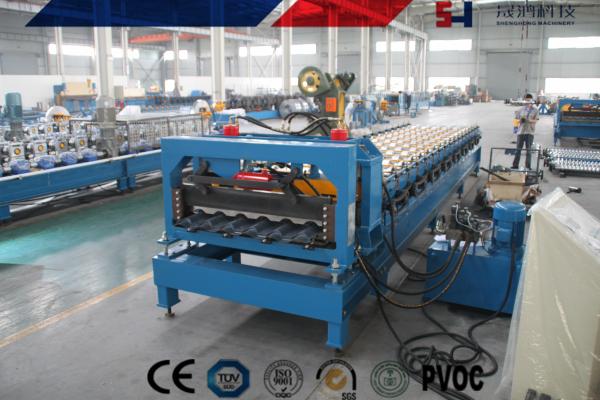

Machinery Shows

Metal Corrugated Roof Forming Machine Electrical For Sheet Making
