Light Frame Steel House Keel Roll Forming Machine PLC Control
Light Frame Steel House Keel Roll Forming Machine PLC Control
Light Frame Steel House Keel Roll Forming Machine PLC Control
Light Frame Steel House Keel Roll Forming Machine PLC Control
Light Frame Steel House Keel Roll Forming Machine PLC Control
Light Frame Steel House Keel Roll Forming Machine PLC Control
Specifications
Brand Name :
Shenghong
Model Number :
SH18-01-04-01
Certification :
CE,ISO
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100 sets per month
Delivery Time :
Within 45 days after receiving the deposit
Packaging Details :
Export package
Production Capacity :
10-20m/min
Voltage :
380V/50HZ 3Phase
Power :
7.5kw
Control system :
PLC
Material :
Steel
Use :
Hotel, House, Office, Shop, Villa
Description

10-20m/min Light Frame Steel Villa House Keel Roll Forming Machine PLC Control

Product description

steel profile roll forming machine

iterm name lead time package Qty price/USD FOB Shanghai
light gauge steel framing machine 40 days 40GP 1 10000-55000

Processing Flow of light steel house frame forming machine price of steel frame machine

Light Frame Steel House Keel Roll Forming Machine PLC Control

Technique parameters of steel profile roll forming machine

processing material steel strip
material thickness 0.75-1.4mm
main motor power 5.5kw
pump power 7.5kw
shaft diameter 50mm
roller stations 12 stands
roller material GCr15 CNC machining heat treatment HRC58-60 then processed by CNC lathe plating finally
shaft material 40Cr CNC machining quenching and tempering HRC28-32 then processed by CNC lathe plating and polishing finally
cutting blade mould cutting, automatically cut to any length
transmission type gears
control system

One Lenovo laptop and a control box inside of based frames of the machine

Special designed to match with the designing software Vertext
power supply AC380v/50Hz or as per your request

Features:

1).Nice appearance, environment friendly, easy maintenance;
2).Corrosion resistant, anti-aging;
3).Light weight, high strength and impact resistant;
4).Safe and comfortable, beautiful interior and exterior decoration
Application: It is used in the fields of outdoor office, field villa, seaside Holiday village, the hotel, etc.

Internal facilities such as kitchen utilities, furniture, electric appliance and so on could be provided by us according to your requirements.

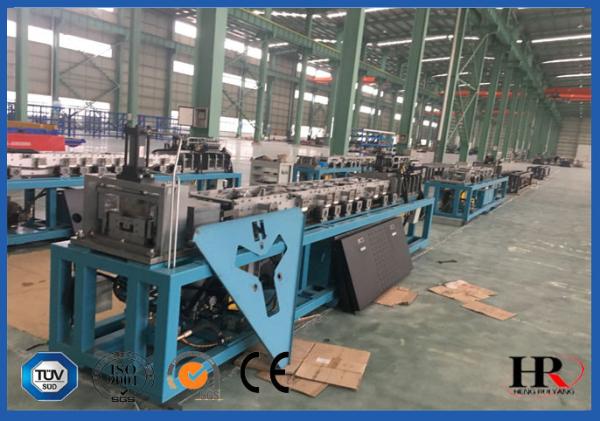

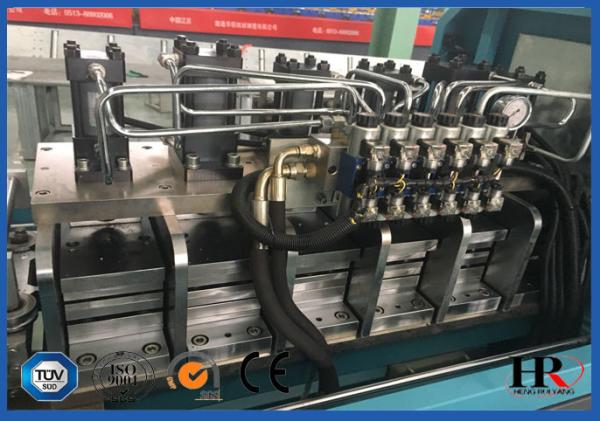

Real Photos on steel profile roll forming machine

Light Frame Steel House Keel Roll Forming Machine PLC ControlLight Frame Steel House Keel Roll Forming Machine PLC Control
