High Speed Steel Structure Ceiling Frame Making Machine with Gcr12 Cutter
High Speed Steel Structure Ceiling Frame Making Machine with Gcr12 Cutter
High Speed Steel Structure Ceiling Frame Making Machine with Gcr12 Cutter
High Speed Steel Structure Ceiling Frame Making Machine with Gcr12 Cutter
High Speed Steel Structure Ceiling Frame Making Machine with Gcr12 Cutter
High Speed Steel Structure Ceiling Frame Making Machine with Gcr12 Cutter
High Speed Steel Structure Ceiling Frame Making Machine with Gcr12 Cutter
High Speed Steel Structure Ceiling Frame Making Machine with Gcr12 Cutter
Specifications
Brand Name :
Shenghong
Model Number :
SH17-11-28-03
Certification :
CE ISO
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
30sets per month
Delivery Time :
with 45 days after receiving the deposit
Packaging Details :
Export package
Power :
3kw+3kw
Description

High Speed Steel Structure Ceiling Frame Making Machine with Gcr12 cutter

Product Description

As a basic material, it is widely used for many aspects as assistant supporters. According to different usages, it has ceiling-hanging truss and supporting truss. According to different shape, it has V, C, L,U and Ttypes profile truss.

They all belong to light steel truss.Light steel truss is a kind of new construction material. Along with the development of world's modern construction, more and more buildings are using the truss in recent years, such as hotels, flight terminals, stations, museums, theatres, cinemas, shopping malls, factories, office buildings, home decorating and garages.

High Speed Steel Structure Ceiling Frame Making Machine with Gcr12 Cutter

High Speed Steel Structure Ceiling Frame Making Machine with Gcr12 Cutter

specifications

Name Suspended Ceiling Adjustable Stud and Track Rolling Machine
Raw material Galvanized
Thickness 0.3-0.8mm
Inner Diameter 450-550mm
Max Coil width 300mm
Capacity 1.5T
Forming steps 10 rollers
Shaft diameter 40mm
Design type Memorial arch
roller material GCr12MoV steel
shaft material 45# steel
Work speed 0-25m/min
Transport By gear
Power of main machine 3kw
Type of cutting Hydraulic
Cutting tolerance ±1mm
Cutter Gcr12
Hydraulic oil 46#
Hydraulic power 3kw
PLC Brand Delta(as your requirement)

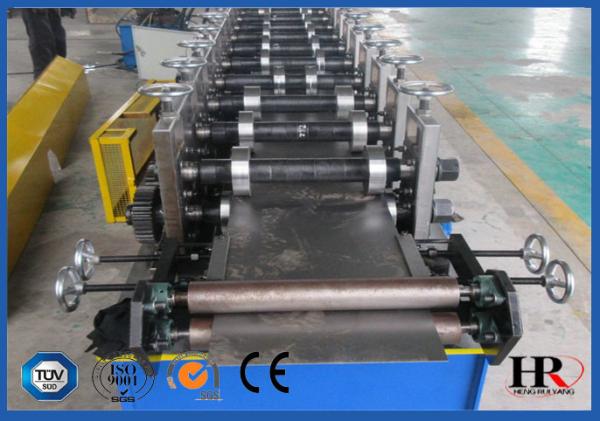

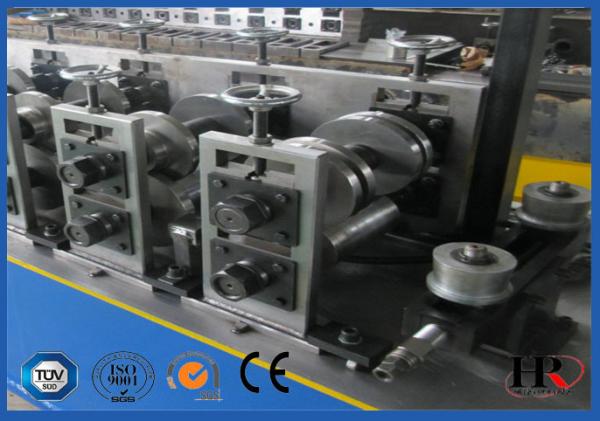

Machinery photos:

High Speed Steel Structure Ceiling Frame Making Machine with Gcr12 CutterHigh Speed Steel Structure Ceiling Frame Making Machine with Gcr12 Cutter
