Automatic Building Material C U Z Steel Purlin Profile Roll Forming Machine
Automatic Building Material C U Z Steel Purlin Profile Roll Forming Machine
Automatic Building Material C U Z Steel Purlin Profile Roll Forming Machine
Automatic Building Material C U Z Steel Purlin Profile Roll Forming Machine
Automatic Building Material C U Z Steel Purlin Profile Roll Forming Machine
Automatic Building Material C U Z Steel Purlin Profile Roll Forming Machine
Automatic Building Material C U Z Steel Purlin Profile Roll Forming Machine
Automatic Building Material C U Z Steel Purlin Profile Roll Forming Machine
Specifications
Brand Name :
Shenghong
Model Number :
SH1802-0606
Certification :
CE,ISO
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
6 sets per month
Delivery Time :
Within 45 days after receiving the deposit
Packaging Details :
Export package
Type :
Tile Forming Machine
Voltage :
380V/415V/440V
Dimension(L*W*H) :
11M*2.5M*1.8M
Production Capacity :
15-25m/min
Weight :
12TON
Warranty :
13 months
Thickness :
1.5-3.0mm
Control system :
PLC
Description

Automatic Building Material C U Z Steel Purlin Profile Roll Forming Machine

Description:

The CUZ Purlin Roll Forming Machine is used to produce C ,U and Z purlin at one machine

Adjust from one shape to the other, one operator only needs 10 minutes, and the size adjustment can be fully automatic

Ø C U Z purlin interchange: fully automatic, within 1 minute.

Ø Purlin size change: fully automatic, within 1 minute.

Ø More optional systems: pre-shearer, servo main motor, flange punching, etc.

Ø Machine surface adopts powder coating, coating before assembly.

Ø Delivery capacity: 180-220 sets each year, the biggest and most professional CZ purlin machine manufacturer in China.

Techincal Parameter

Item parameters
Coil Thickness (mm) 1.5-3
Max Speed (m/min) 30
Roll Stand 18
Main Motor (KW) Hydraulic Motor, 22
Main Shaft (mm) 100/75/60
Cutting Way Hydraulic cutting
Cutter Material Cr12 Mov

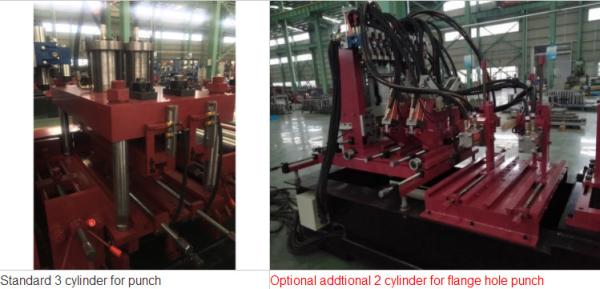

Punching 3 Sets
Control System PLC

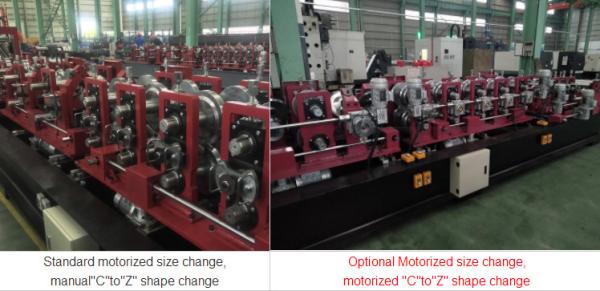

Size Change PLC control / Press button
C U Z Interchange PLC control / Reverse roller

Standard Shape Profile ( Also can be customized)

C Purlin: A=80-300mm ; B=35-80mm ; C=10-25mm ; T=1.5-3mm

Z Purlin: A=120-300mm ; B=35-80mm ; C=10-25mm ; T=1.5-3mm

Automatic Building Material C U Z Steel Purlin Profile Roll Forming Machine

Machine Photo:

Automatic Building Material C U Z Steel Purlin Profile Roll Forming Machine
