Specifications
Brand Name :
Shenghong
Model Number :
SH160711-02
Certification :
CE ISO
Place of Origin :
Jiangsu, China
MOQ :
1 sets
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
25 SETS/ MONTH
Delivery Time :
40 days after payment
Packaging Details :
1. Export standard package for container 2. Host nude, wheels with oil and gas bubble cushion packaging. 3. PLC controller with bubble cushion packaging 4. Spare parts in wooden cases.
Material type :
Top-tech Roll former
Export Markets :
Global
Feature :
efficent, Whole life technical support
Application :
steel tile and wall cladding
Origin :
Wuxi, Jiangsu , China
Service :
" All-in-house source' Factory
Description

Top-tech Roll former for producing steel tile and wall cladding

Main components brand

Inverter YASKAWA
PLC Siemens
Encoder Omron
Touch screen MCGS
Other electrical appliances Schneider
Servo motor YASKAWA

Get Free:
Provide profile drawing & design technical support FOR FREE!

Technical parameters

1. Matching material: GI.PPGI aluminum

2. Material thickness range: 0.2-0.6mm 550Mpa, 0.6-0.8mm 300 Mpa

3. Main motor power: 11 KW motor with cyclonical pin wheel reducer

4. Forming speed: 0-30m/min

5. Hydraulic station power: 5.5 KW

6. Quantity of stands: about 24 stands

7. Shaft Material and diameter: ￠80mm, material is 40CR

8. Material Of The Stations: Guide rail style

9. Tolerance: 3m+-0.5mm

10.Way Of Drive: chain

11. Controlling system: PLC

12. Total weight: about 12 Tons

13. Voltage: 380V/ 3phase/ 50 Hz

14. Size of the machine: L*W*H 14 m*2.0m*1.4m

15. Material of forming rollers: 45# steel , coated with chromed treatment

16. Material of cutter blade: Cr 12 mould steel with quenched treatment 58-62℃

17. The rollers surface is mirror polished.

18. Spacer treatment: spacers are plated

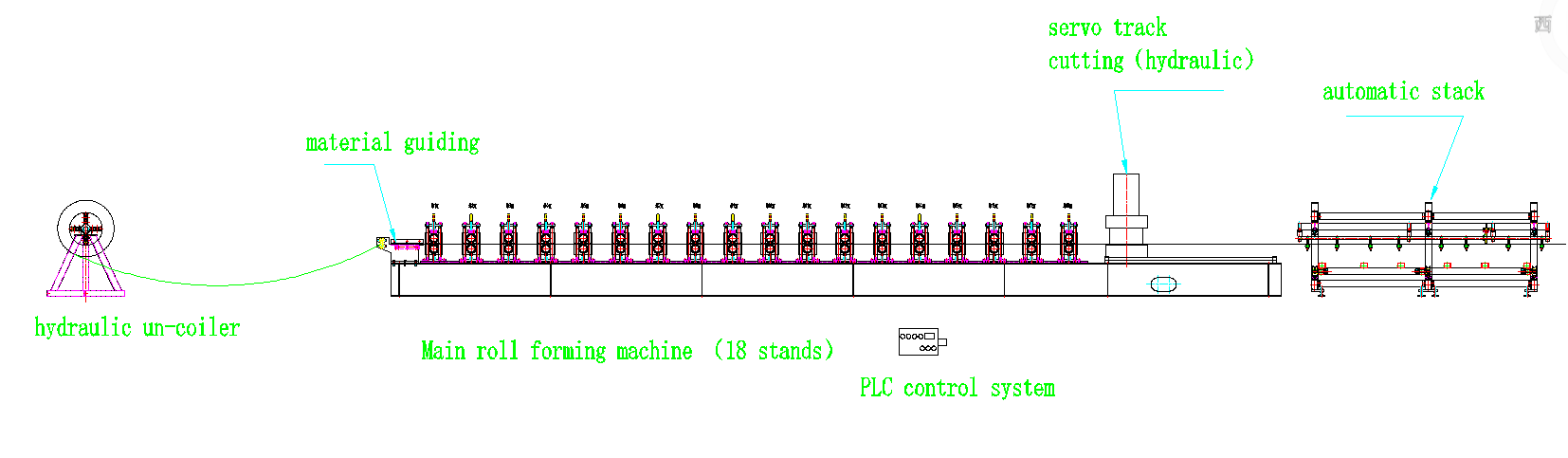

Working flow:

Top-tech Roll former for producing steel tile and wall cladding

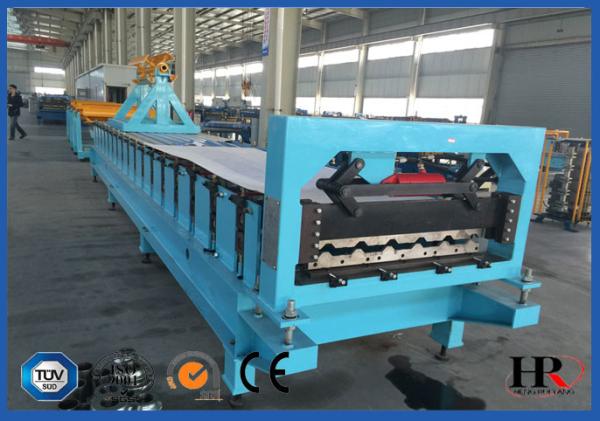

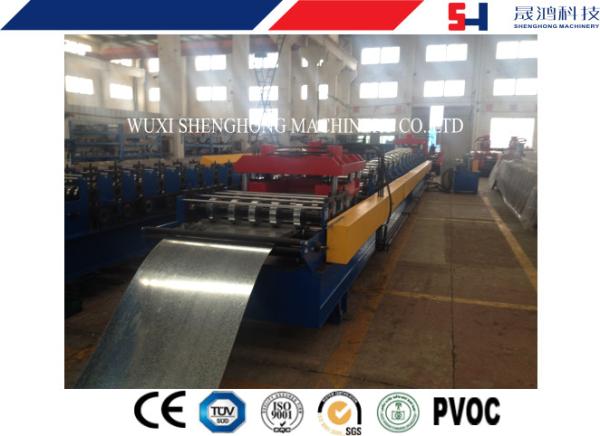

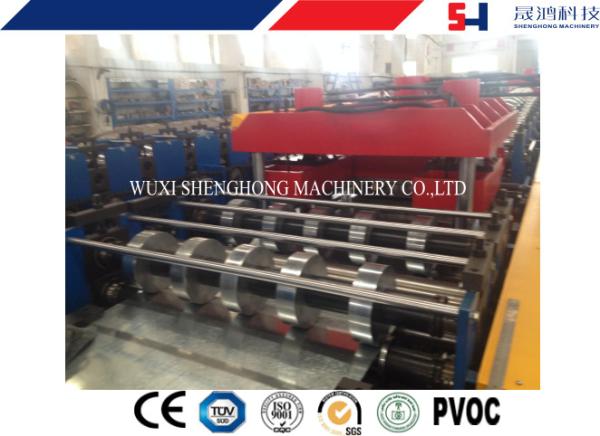

Machinery Photos

Top-tech Roll former for producing steel tile and wall cladding
