Specifications
Brand Name :
Shenghong
Model Number :
SH160411-00
Certification :
CE ISO SGS
Place of Origin :
Jiangsu, China
MOQ :
1 sets
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
25 SETS / MONTH
Delivery Time :
40 days after payment
Packaging Details :
1. Export standard package for container 2. Host nude, wheels with oil and gas bubble cushion packaging. 3. PLC controller with bubble cushion packaging 4. Spare parts in wooden cases.
Type: :
Tile Forming Machine
Production Capacity: :
5-15m/min
Place of Origin: :
Wuxi, China
Voltage: :
380V 50Hz
Certification: :
CE SGS ISO
Warranty: :
12 Month
Description

Specification

Features

1. Large capacity

One single-silo capacity is up to 17,000 tons with comprehensive configurations to meet customers’ different requirements.

2. High accuracy

Complete advanced processing equipment and technology are introduced from USA to effectively ensure working accuracy and reduce damage to galvanized layer.

3. Less residues

External installable stiffeners contribute to less grain residues on silo walls.

4. Detachable and movable

With standardized and modularized production, components and parts have a high standardization and good interchangeability, thus can be partially replaced or completely transferred.

Component

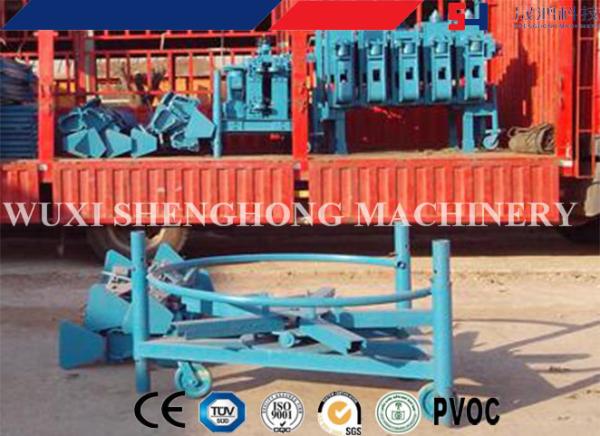

De coiler

Material width adjusting and guiding equipment

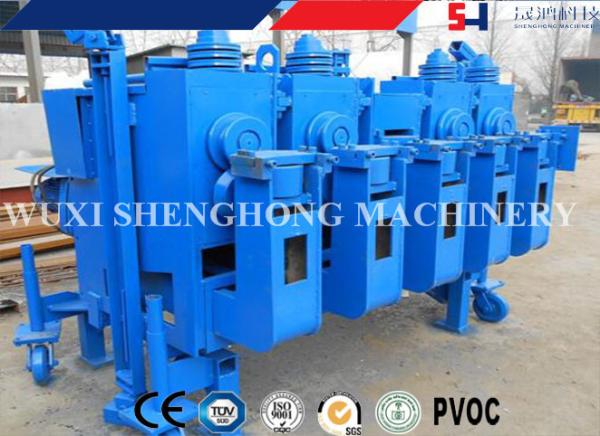

Roll former

Curving equipment

Cutting machine

Hydraulic control system

Technical process

Decoiling →Guiding→Cutting→Roll forming→Curving equipment

Technical parameter

Suitable Raw Material galvanized sheet, zinc aluminum sheet
Material’s Strength 310MPa
Material’s Thickness 1.2-4.5mm
Forming Stations 18
Max. Feeding Width 1250mm
Diameter of Roller’s Shaft 120mm
Producing Speed 4-8m/min
Material of Roller GCr15 quenching HRC 58-62°
Drive Mode gearbox
Main Power about 180KW
Electrical Control System PLC frequency control
Power Supply AC 440V & 50HZ & 3PH
Dimension(L*W*H) 35m*4.5m*4.5m
Total Weight approx 70T

Silo pics
