Specifications
Brand Name :
Shenghong
Model Number :
SH160411-03
Certification :
CE ISO SGS
Place of Origin :
Jiangsu, China
MOQ :
1 sets
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
30 SETS/ MONTH
Delivery Time :
40 days after payment
Packaging Details :
1. Export standard package for container 2. Host nude, wheels with oil and gas bubble cushion packaging. 3. PLC controller with bubble cushion packaging 4. Spare parts in wooden cases.
Production Capacity :
10-12m/min
Power(W): :
4kw
Voltage: :
380V 50HZ
Certification: :
CE ISO SGS
Thickness of the plate :
0.3-0.8mm
Description

Three Layer Roofing Panel Roll Forming Machine / Metal Tile Extrusion Line

Product Description

Main Parameters

No. Three Layer Roofing Panel Roll Forming Machine / Metal Tile Extrusion Line
1 raw material suitable material colored steel coil, galvanized coil, aluminum coil
feeding width 1000mm
thickness 0.3-0.8mm
2 effective width 900/860/910mm
3 rollers material 45#steel plated with chrome
rows 9/9/11 rows
4 shafts material 45#steel
diameter Φ70mm
5 cutting blade hydraulic cutting, Cr12 with quenching treatment
6 capacity 10-12m/min
7 weight 4.7t
8 control system PLC control system with transducer inside
9 dimension 7000*1350*1500mm
10 machine body H-shape steel: 300-350mm
11 middle plate 16mm

PS: the above are for reference; we design machines according to your needs.

Working Flow

Three Layer Roofing Panel Roll Forming Machine / Metal Tile Extrusion Line

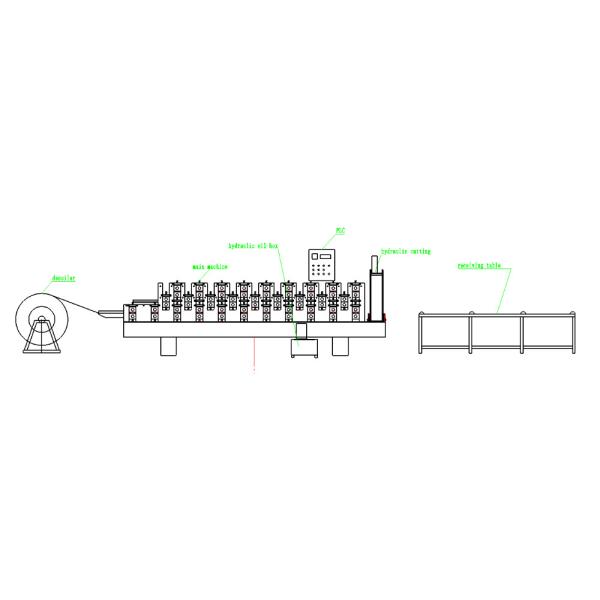

Decoiler-----Feeding&Guiding-----Roll Forming-----Hydraulic Cutting------Receiving Table

Warranty:

12 months, during which all parts damaged because of quality problem will be changed for free.

Delivery Time:

within 30-45 days after receiving prepaid. Some machines in stock, can be delivered at any time.

Payment Terms:

40% deposit is paid before production, the balance paid after inspection confirmation before shipment.

Install and Training:

if buyers come to our factory to inspect, the training to install and operate is provided face to face.

if not, manual and video is provided to show how to install and operate.

After-sale Service:

We provide 12-hour online service for our customers. Phone: +86 13921193231
