ISO 9001 Certificate Automatic Hydraulic Crimping Machine For Roofing Sheet
ISO 9001 Certificate Automatic Hydraulic Crimping Machine For Roofing Sheet
ISO 9001 Certificate Automatic Hydraulic Crimping Machine For Roofing Sheet
ISO 9001 Certificate Automatic Hydraulic Crimping Machine For Roofing Sheet
ISO 9001 Certificate Automatic Hydraulic Crimping Machine For Roofing Sheet
ISO 9001 Certificate Automatic Hydraulic Crimping Machine For Roofing Sheet
ISO 9001 Certificate Automatic Hydraulic Crimping Machine For Roofing Sheet
ISO 9001 Certificate Automatic Hydraulic Crimping Machine For Roofing Sheet
ISO 9001 Certificate Automatic Hydraulic Crimping Machine For Roofing Sheet
ISO 9001 Certificate Automatic Hydraulic Crimping Machine For Roofing Sheet
Specifications
Brand Name :
Shenghong
Model Number :
SH160912-09
Certification :
CE ISO
Place of Origin :
Wuxi, China (Mainland)
MOQ :
1 sets
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
30 SETS / year
Delivery Time :
40 days after payment
Packaging Details :
Container
Controls :
PLC
Roller :
Antirust Treatment
Yield Stress :
230-300
Certificate :
CE, ISO9001:2008, Soncap, AAA credit
Producing speed :
15m/min
Description

Automatic hydraulic crimping machine with excellent Service for roofing sheet supplier

Quick Details

  • Place of Origin: Wuxi, China (Mainland)
  • Brand Name: Shenghong
  • Suitable material:: aluminum, aluzinc, galvanized and pre-painted galvanized steel sheet
  • Thickness:: 0.3mm-0.7mm
  • Feeding width:: 100mm-1250mm
  • Coil stress:: Q235 Mpa (33KSI); maximum Q345Mpa (50KSI);
  • Power required:: main motor:4Kw;hydraulic station:3Kw
  • Producing speed:: 15m/min
  • Cutting Tolerance:: ≤±2.5mm ( length≤ 5000mm) ; ≤±3mm ( 5000mm < length ≤ 10000mm)
  • Stands number:: around 4stands but depends on the final profile
  • Manual Uncoiler:: capacity 5T, 7T
  • Certificate:: ISO9001, CE, AAA CREDIT,GMC

Packaging & Delivery

Packaging Details: For transportation, main machine is naked but rollers with anti-rust oil will be suitable for long time sea transportation
Delivery Detail: 25-40days

Specifications

  1. High Quality
  2. Competitive price
  3. Excellent Service

Working Flow

1. decoiling → guiding and feeding →roll forming→length cutting→run out table

ISO 9001 Certificate Automatic Hydraulic Crimping Machine For Roofing Sheet

2. using crimping/curving machine to bend the shape

Components of the Crimping Machine

5 T Manual Uncoiler 1 Set
Guiding Equipment 1 Set
Roll Forming Equipment 1 Set
Post Cut Equipment 1 Set
Hydraulic Station 1 Set
PLC Control Penal 1 Set
Supporter Table (2M length one piece) 2 Pcs

Material of Main Equipment

1. Roller Material High grade No.45 forged steel with hard chrome plated

2. Active Shaft Material High grade No.45 carbon wrought steel diameter 75mm

3. Electric Elements PLC control panel, transducer imported from Mitsubishi of Japan.

4. Cutter blade Cr12 mould steel with quenched treatment

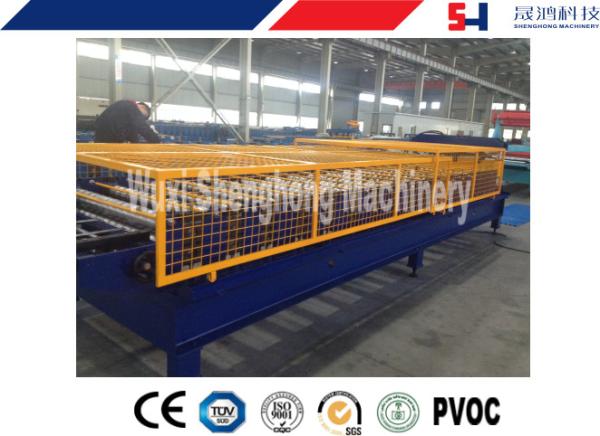

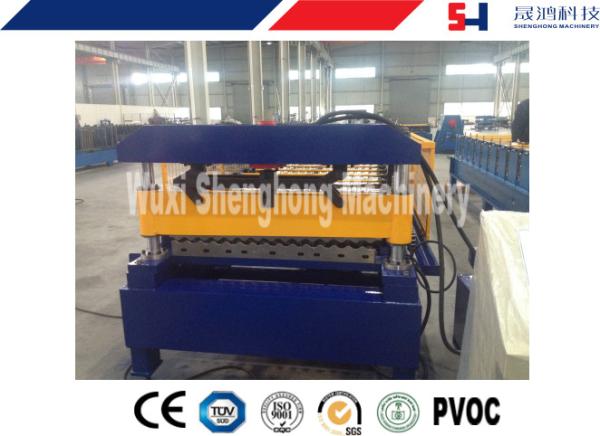

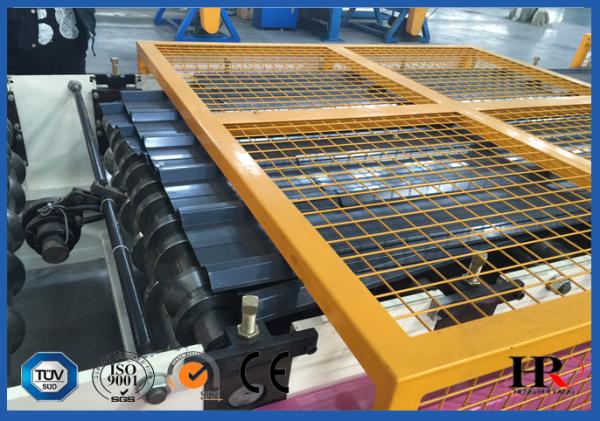

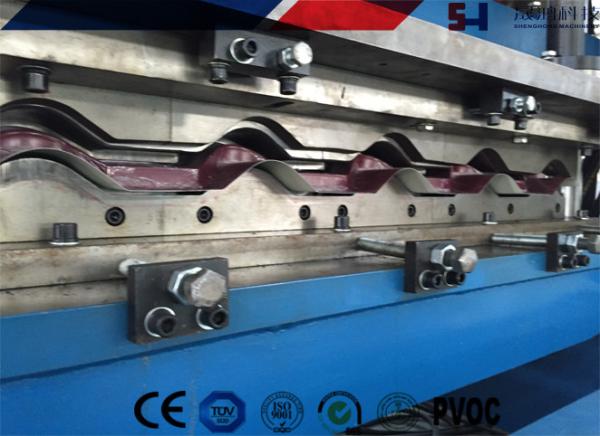

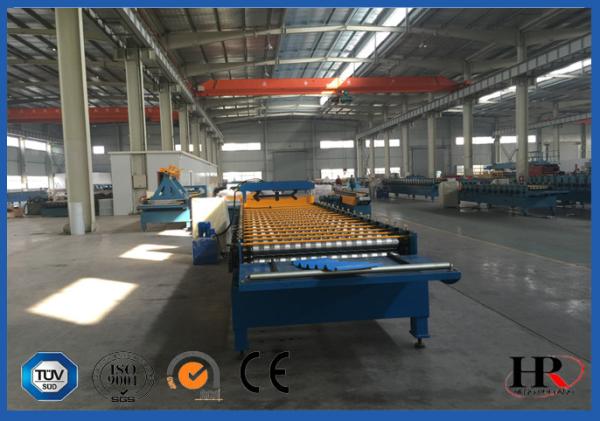

Machine photo
ISO 9001 Certificate Automatic Hydraulic Crimping Machine For Roofing Sheet
ISO 9001 Certificate Automatic Hydraulic Crimping Machine For Roofing Sheet
