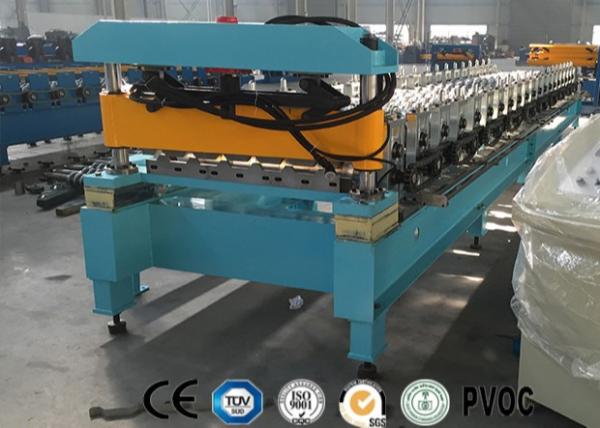

0.4mm Single Layer Roll Forming Machine , G550 Corrugated Sheet Roll Forming Machine
0.4mm Single Layer Roll Forming Machine , G550 Corrugated Sheet Roll Forming Machine
0.4mm Single Layer Roll Forming Machine , G550 Corrugated Sheet Roll Forming Machine
0.4mm Single Layer Roll Forming Machine , G550 Corrugated Sheet Roll Forming Machine
0.4mm Single Layer Roll Forming Machine , G550 Corrugated Sheet Roll Forming Machine
0.4mm Single Layer Roll Forming Machine , G550 Corrugated Sheet Roll Forming Machine
0.4mm Single Layer Roll Forming Machine , G550 Corrugated Sheet Roll Forming Machine
0.4mm Single Layer Roll Forming Machine , G550 Corrugated Sheet Roll Forming Machine
Specifications
Brand Name :
HENGRUIYANG
Model Number :
OEM ODM
Certification :
CE , ISO9001, TUV, SGS
Place of Origin :
Jiangsu, China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
10set
Delivery Time :
40-60 days
Packaging Details :
Standard export packing with each machine tied and protected in container
product name :
steel roll forming machine
Coil material thickness :
0.4-0.7mm
Roller material :
45# forge steel, coated with chrome
Material of chain :
45# forged steel with frequency quenching
Material :
Galvanized color steel, G550mpa
Roller stations :
10 stations
Roll forming machine :
4.2 meters length
Rolling speed :
12-15m/min
Description

G550 Barrel Corrugation Machine, Horizontal Corrugation Machine for 0.4-0.7mm Corrugated Sheets

  • Coil material thickness: 0.4-0.7mm
  • Material: Galvanized color steel, G550mpa
  • Roll forming machine: 4.2 meters length
  • Rolling speed: 12-15m/min
  • Roller stations: 10 stations
  • Roller material: 45# forge steel, coated with chrome
  • Shaft diameter: 100mm
  • Transmission: By gears
  • Material of chain: 45# forged steel with frequency quenching
  • Material of cutting: Cr12Mov with quench HRC58-62
  • Voltage: 220V, 50HZ,3 PH (depend on customer requirement
  • High Quality
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 10 Years Experience​

Work flow:

manual uncoiler-- roll forming machine-- PLC control box-- hydraulic system-- post cut-- output table

Article No. Item Name Specification
1 Width of feeding material 1000mm coil sheet
2 Thickness of feeding material 0.3mm-0.8mm coil sheet
3 Roller station 2-15 stations
4 Shaft Diameter 75-95mm
5 Productivity 8-12m/min
6 Rollers' material 45# steel forge
7 Shaft material 45# steel
8 Weight 2.5-8 ton
9 length 5.5 m-11m
10 Voltage 380V 50Hz 3phases
11 Control PLC
12 Decoiler 8 Tons
13 Motor 3kw-15kw
14 Driving way Chain transmission
15 Chain size 0.6 inch-2 inch
16 Cutting system

Hydraulic cutter

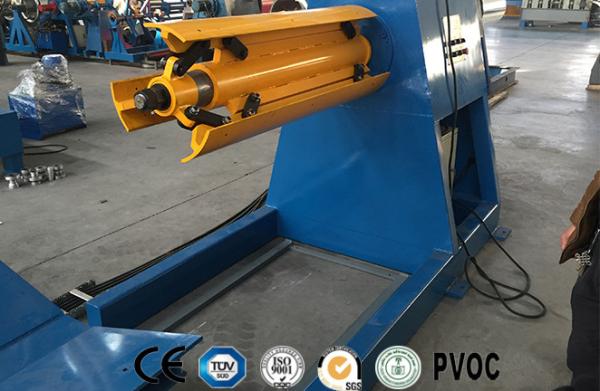

5tons passive uncoiler 1set
Pre-cutting equipment (Optional) 1set
Film covering device (Optional) 1set
Guiding Equipment 1set
Roll Forming Equipment 1set
Pressing equipment 1set
Post Cut Equipment 1set
Hydraulic Station 1set
PLC Control Penal 1set
Supporter Table

2sets
